Tilt Wall Mount for 32" to 70" TVs and Monitors
Key Features
- Fits most flat-panel displays from 32 to 70 in.
- Hangs out of sight for a sleek, professional appearance
- -10° to 0° tilt capability for comfortable viewing
- Supports up to 165 lbs (74.8 kgs).
Description

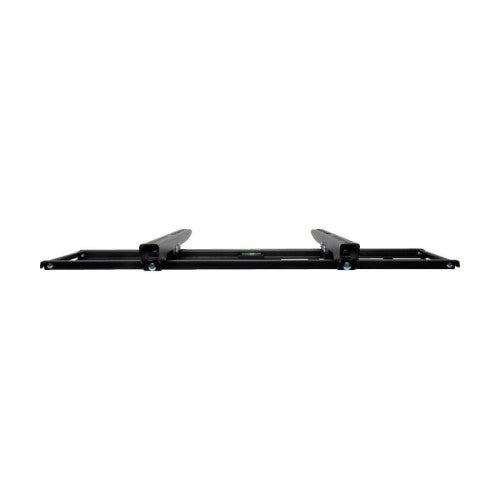

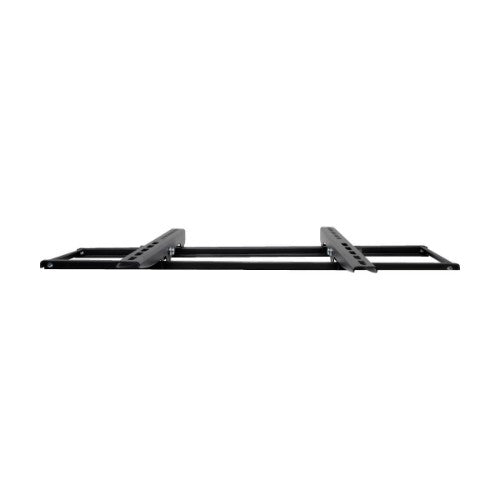

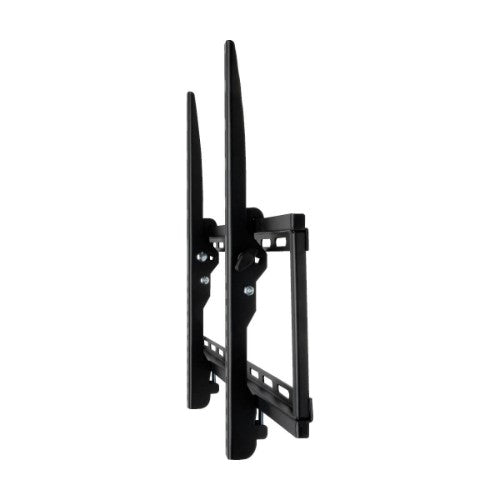

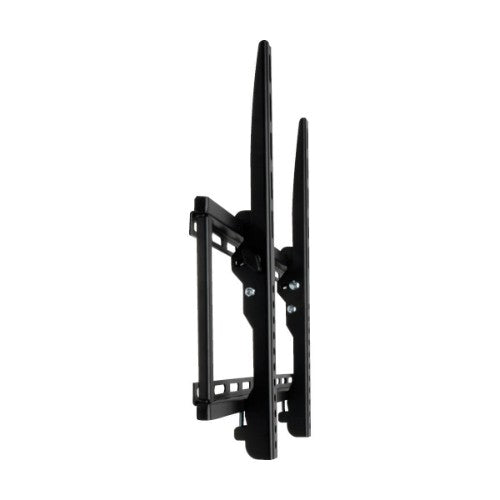

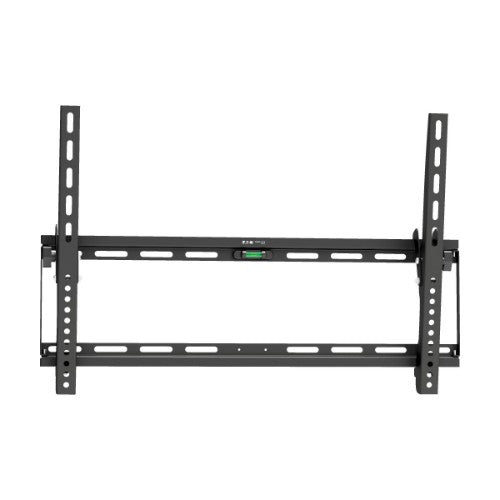

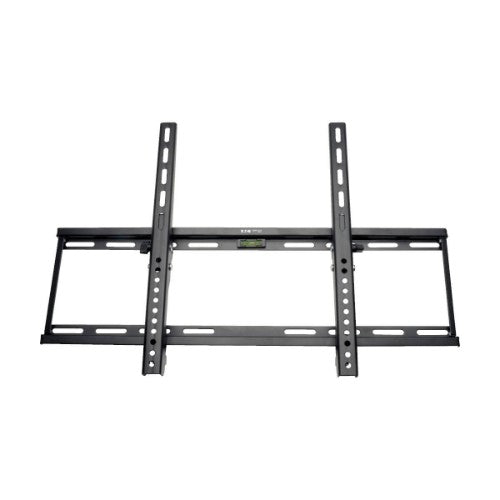

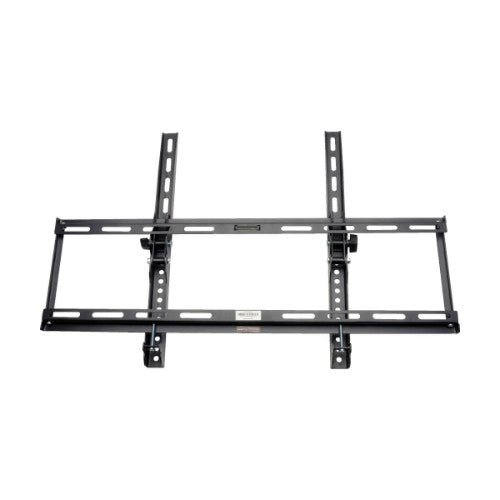

The VESA-compliant DWT3270X Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 32 to 70 inches. A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles.
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
81.3 cm (32") |
| Panel mounting interface |
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400 |
| Number of displays supported |
1 |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
800 x 400 mm |
| Maximum screen size |
177.8 cm (70") |
| Maximum weight capacity |
75 kg |
| Technical details |
|---|
| Number of displays supported |
1 |
| Product colour |
Black |
| Mounting type |
Wall |
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
664 mm |
| Depth |
45.7 mm |
| Height |
439.9 mm |
| Weight |
2.47 kg |
| Packaging data |
|---|
| Package width |
215.9 mm |
| Package depth |
685.8 mm |
| Package height |
50.8 mm |
| Package weight |
2.81 kg |
| Logistics data |
|---|
| Master (outer) case width |
302.3 mm |
| Master (outer) case length |
698.5 mm |
| Master (outer) case height |
241.3 mm |
| Master (outer) case gross weight |
14.6 kg |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332183603 |
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Mounting type |
Wall |
| Country of origin |
China |
