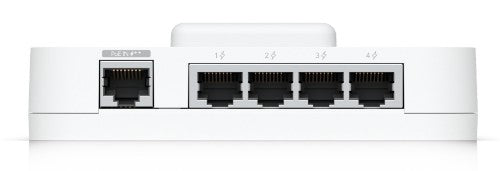

5x RJ-45, PoE++, Din-rail
Key Features

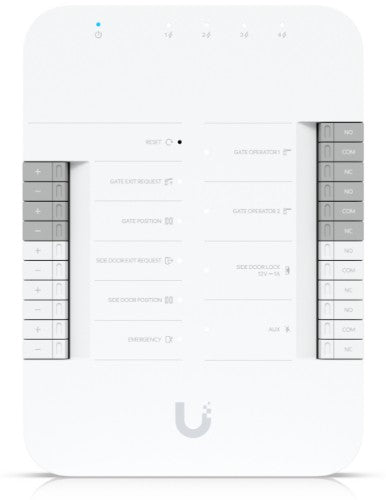

- (2) Gate operator terminals (dry)
- (1) Lock terminal (12V) for side door
- (1) AUX terminal for an external siren
- (5) Additional inputs (sensors and emergency)
- License plate unlock (when paired with AI Camera)
- Connect and power using PoE++
- Connect up to four UniFi Access readers or UniFi Protect cameras
Description
An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.
Specifications
| Technical details |
|---|
| Case design |
Housing |
| Built-in UPS |
No |
| Interface |
Ethernet |
| Exit request |
Yes |
| LED indicators |
Yes |
| Performance |
|---|
| Ethernet LAN |
Yes |
| Number of built-in relays |
3 |
| Certification |
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Power |
|---|
| Operating voltage |
50 V |
| Operating current |
1 A |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
5 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 60 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
126 mm |
| Weight |
460 g |
| Height |
175 mm |
| Depth |
26 mm |
