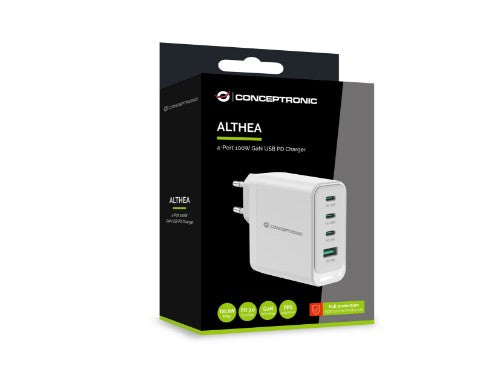

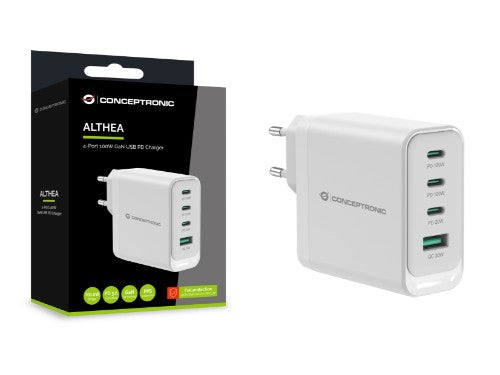

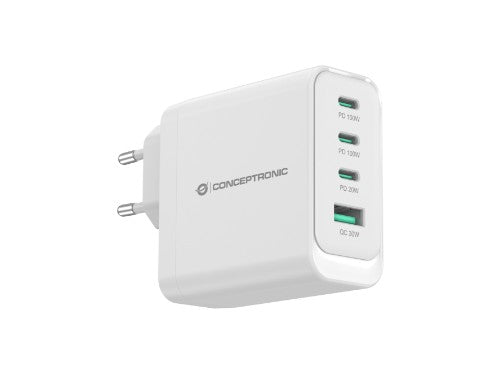

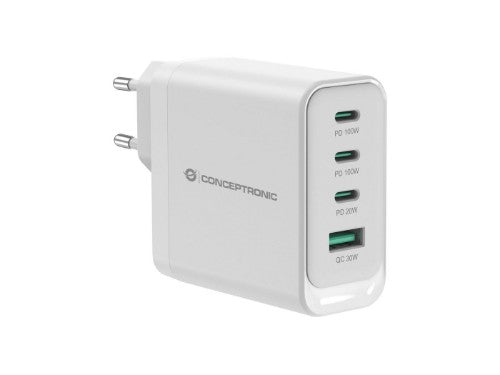

ALTHEA22W100 4-Port 100W GaN USB PD Charger, USB-C x 3, USB-A x 1, QC 3.0, PPS, PD 3.0
Key Features
- High-Power GaN Technology: This charger utilizes advanced Gallium Nitride (GaN) technology, providing up to 100W of total power for faster and more efficient charging.

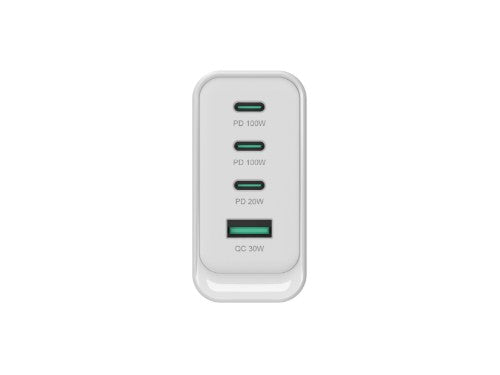

- Versatile Port Selection: Equipped with 4 ports including 3 USB-C ports (with PD 3.0) and 1 USB-A ports (with QC 3.0), allowing simultaneous charging for multiple devices with varying power requirements.
- Wide Compatibility: Supports a range of output options from 3.3V to 20.0V across its ports, ensuring compatibility with devices from smartphones to laptops.
- Enhanced Safety Features: Built-in protections against overload, short circuiting, and overheating, ensuring the safety of both the charger and connected devices.
- Efficiency and Fast Charging Technology: Incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to maximize charging efficiency and minimize heat generation.
Description
This charger harnesses cutting-edge Gallium Nitride (GaN) technology to deliver up to 100W of total power, ensuring exceptionally fast and efficient charging. It features a versatile port selection with 4 ports: 3 USB-C ports supporting Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0. This configuration allows for simultaneous charging of multiple devices with varying power requirements. The charger supports a wide range of output options from 3.3V to 20.0V, ensuring compatibility with everything from smartphones to laptops. Enhanced safety is provided through built-in protections against overload, short-circuiting, and overheating, safeguarding both the charger and your devices. It incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging and features Programmable Power Supply (PPS) compliance to optimize charging efficiency while minimizing heat generation.
Specifications
| Performance |
|---|
| Country of origin |
China |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Charger type |
Indoor |
| Charger compatibility |
Universal |
| Power source type |
AC |
| Power protection features |
Overheating, Overload, Short circuit |
| Fast charging |
Yes |
| Fast charging technology |
Adaptive Fast Charging, Hisilicon FCP, Power Delivery 3.0, Programmable Power Supply (PPS), Quick Charge 3.0 |
| USB Type-C ports quantity |
3 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.0 |
| Programmable power supply (PPS) |
Yes |
| Number of simultaneously connected devices (max) |
4 |
| Design |
|---|
| Product colour |
White |
| Gallium nitride (GaN) transistors |
Yes |
| Housing material |
Polycarbonate (PC) |
| Power |
|---|
| Port 2 output current |
4.5 A |
| Port 1 output current |
4.5 A |
| Input current |
2.2 A |
| Maximum power |
100 W |
| Input voltage |
100 - 240 V |
| Input frequency |
50 - 60 Hz |
| Maximum output voltage |
20 V |
| Minimum output voltage |
3.3 V |
| Port 3 output current |
3 A |
| Port 4 output current |
3 A |
| Technical details |
|---|
| Package type |
Hanging box |
| Charger type |
Indoor |
| Charger compatibility |
Universal |
| Power source type |
AC |
| Power protection features |
Overheating, Overload, Short circuit |
| Country of origin |
China |
| Manual |
Yes |
| Harmonized System (HS) code |
850440 |
| Compliance certificates |
CE, RoHS |
| Master (outer) cases per pallet |
64 pc(s) |
| Weight & dimensions |
|---|
| Width |
68.5 mm |
| Depth |
65 mm |
| Height |
32 mm |
| Weight |
191.4 g |
| Package width |
127 mm |
| Package depth |
94 mm |
| Package height |
35 mm |
| Package weight |
247.4 g |
| Packaging data |
|---|
| Package type |
Hanging box |
| Package width |
127 mm |
| Package depth |
94 mm |
| Package height |
35 mm |
| Package weight |
247.4 g |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 25 °C |
| Packaging content |
|---|
| Manual |
Yes |
| Quantity per pack |
1 pc(s) |
| Package type |
Hanging box |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Colour |
|---|
| Product colour |
White |
| Logistics data |
|---|
| Country of origin |
China |
| Products per master (outer) case |
40 pc(s) |
| Master (outer) case width |
385 mm |
| Master (outer) case length |
272 mm |
| Master (outer) case height |
210 mm |
| Master (outer) case gross weight |
10.4 kg |
| Pallet gross width |
120 cm |
| Pallet gross length |
80 cm |
| Pallet gross height |
183.2 cm |
| Customs product code (TARIC) |
8504408390 |
| Harmonized System (HS) code |
850440 |
| Other features |
|---|
| Country of origin |
China |
| Manual |
Yes |
| Package type |
Hanging box |
