Description
Mystique 360 WH ARGB, 3x 120 mm, 600-2400 RPM, 72.04 CFM, PWM, Hydro Bearing, 93 × 77 × 66 mm, 3400 RPM, 12 VDC, 402 × 120 × 27 mm, 1847 g, White

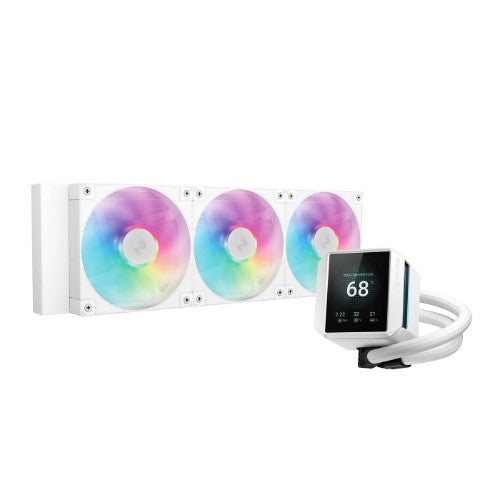

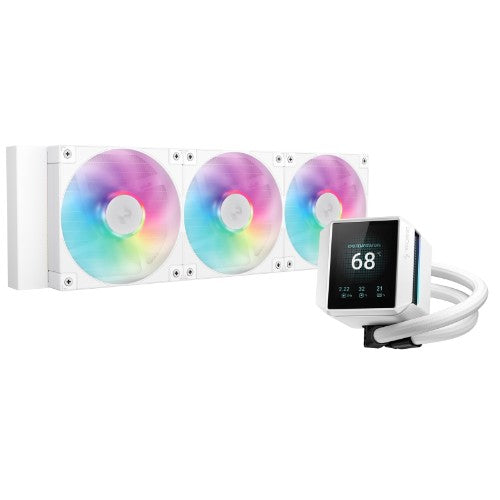

The MYSTIQUE 360 WH ARGB is DeepCool's latest addition to the flagship line of liquid coolers with highly sought-after customizable LCD screens. Bring your creative style to life with customized images and animated gifs on the brilliant 2.8" TFT LCD screen! The MYSTIQUE ARGB line has been outfitted with a new set of vivid ARGB fans.
MYSTIQUE 360 WH ARGB
Visualizing Your Illuminated Imagination
MAGNIFICENTLY SHARP 2.8" LCD
Customize the large 2.8" TFT screen with your personalized content. The screen has a very sharp 640x480 pixel resolution and displays 16.7M colors brilliantly. The orientation of the screen will automatically adjust as the MYSTIQUE 360 WH ARGB utilizes built-in gyroscopic sensors.
DeepCreative: THE CONTROL CENTER
Bring all of the great features of the Mystique coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have the RGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.
5th GENERATION PUMP
Built on DeepCool's optimized 5th generation high-performance water pump, the MYSTIQUE 360 WH ARGB brings cooling modern power-hungry CPUs to a new level.
The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM.

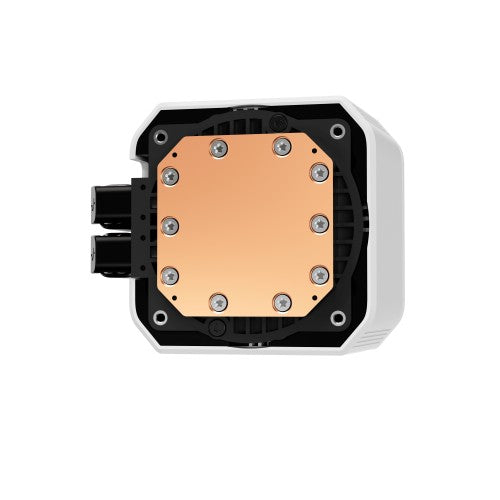

REDESIGNED AND IMPROVED COLDPLATE
The MYSTIQUE 360 WH ARGB gets a redesigned coldplate that has been optimized for better heat transfer and 0.1mm intensive flow channels. The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.

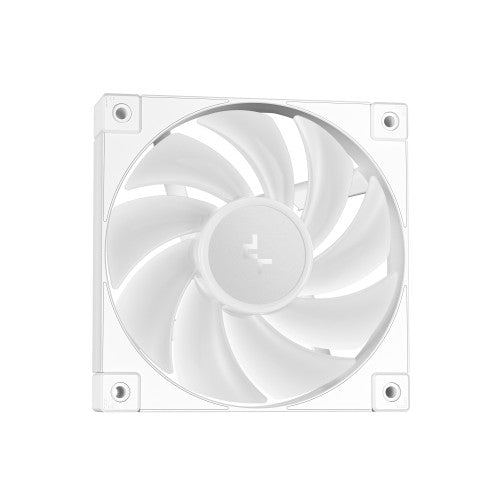

FINE TUNED FD12 ARGB FANS
Optimized white FD12 ARGB WH PWM fans are included with the MYSTIQUE 360 WH ARGB and have been fine-tuned to provide excellent cooling performance with a long-life Hydro Bearing. The MYSTIQUE 360 WH ARGB includes three of these specialized FD12 fans, which have an easy-to-manage 8-pin cable that can be chained to each of the FD fans.
ANTI-LEAK TECHNOLOGY
The MYSTIQUE liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.

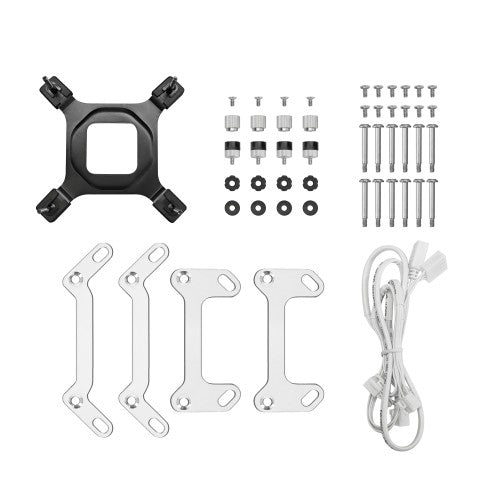

SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the MYSTIQUE 360 WH ARGB to the latest mainstream CPUs is included in the box, so you are ready to go.
Description
MYSTIQUE 360 WH ARGBThe MYSTIQUE 360 WH ARGB is DeepCool's latest addition to the flagship line of liquid coolers with highly sought-after customizable LCD screens. Bring your creative style to life with customized images and animated gifs on the brilliant 2.8" TFT LCD screen! The MYSTIQUE ARGB line has been outfitted with a new set of vivid ARGB fans.
MYSTIQUE 360 WH ARGB
Visualizing Your Illuminated Imagination
MAGNIFICENTLY SHARP 2.8" LCD
Customize the large 2.8" TFT screen with your personalized content. The screen has a very sharp 640x480 pixel resolution and displays 16.7M colors brilliantly. The orientation of the screen will automatically adjust as the MYSTIQUE 360 WH ARGB utilizes built-in gyroscopic sensors.
DeepCreative: THE CONTROL CENTER
Bring all of the great features of the Mystique coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have the RGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.
5th GENERATION PUMP
Built on DeepCool's optimized 5th generation high-performance water pump, the MYSTIQUE 360 WH ARGB brings cooling modern power-hungry CPUs to a new level.
The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM.
REDESIGNED AND IMPROVED COLDPLATE
The MYSTIQUE 360 WH ARGB gets a redesigned coldplate that has been optimized for better heat transfer and 0.1mm intensive flow channels. The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.
FINE TUNED FD12 ARGB FANS
Optimized white FD12 ARGB WH PWM fans are included with the MYSTIQUE 360 WH ARGB and have been fine-tuned to provide excellent cooling performance with a long-life Hydro Bearing. The MYSTIQUE 360 WH ARGB includes three of these specialized FD12 fans, which have an easy-to-manage 8-pin cable that can be chained to each of the FD fans.
ANTI-LEAK TECHNOLOGY
The MYSTIQUE liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the MYSTIQUE 360 WH ARGB to the latest mainstream CPUs is included in the box, so you are ready to go.
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydrodynamic bearing |
| Fan thickness | 2.5 cm |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 72.04 cfm |
| Maximum air pressure | 3.48 mmH2O |
| Number of fans | 3 fan(s) |
| Quantity per pack | 1 pc(s) |
| Pump connector | 3-pin |
| Fan noise level (max) | 38.71 dB |
| Pump motor speed | 3400 RPM |
| Fan speed (min) | 600 RPM |
| Fan speed (max) | 2400 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 3 fan(s) |
| Illumination colour | Multi |
| Product colour | White |
| Illumination LED | Yes |
| Radiator material | Aluminum |
| Display type | LCD |
| LED connector type | 3-pin |
| Technical details | |
| Fan thickness | 2.5 cm |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 72.04 cfm |
| Maximum air pressure | 3.48 mmH2O |
| Number of fans | 3 fan(s) |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Pump connector | 3-pin |
| Power | |
| LED voltage | 5 V |
| Fan power consumption | 2.64 W |
| Pump power consumption | 4.2 W |
| Pump voltage | 12 V |
| Pump current | 350 mA |
| Fan voltage | 12 V |
| Fan current | 0.22 A |
| LED power consumption (pump) | 2.45 W |
| LED power consumption (fan) | 3.15 W |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan thickness | 2.5 cm |
| Weight | 1.85 kg |
| Radiator width | 12 cm |
| Radiator depth | 40.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Pump width | 7.7 cm |
| Pump depth | 9.3 cm |
| Pump height | 6.6 cm |
| Indication | |
| Illumination colour | Multi |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
| Other features | |
| Pump connector | 3-pin |
| LED voltage | 5 V |
