Description

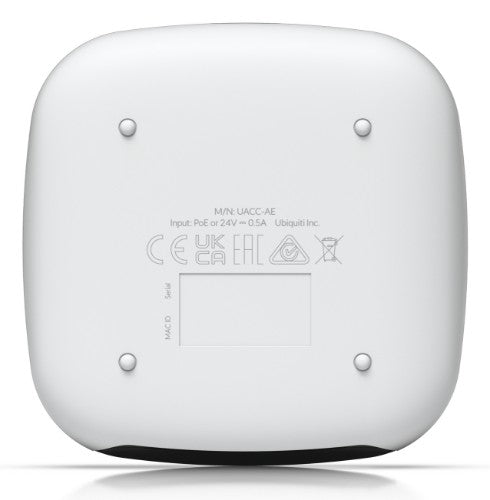

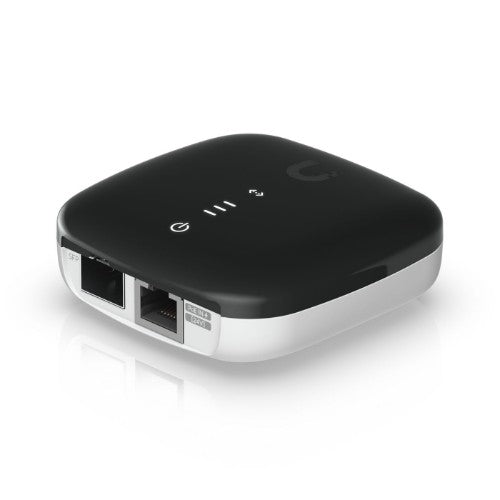

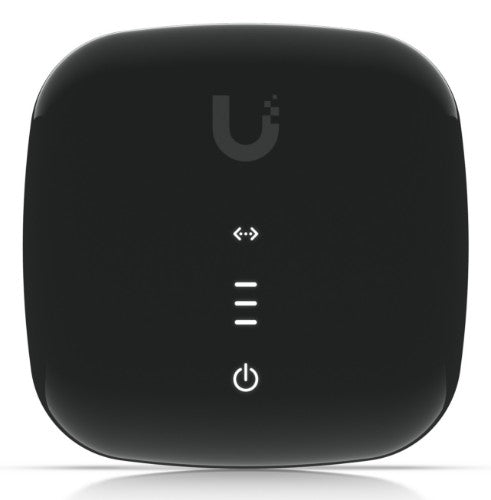

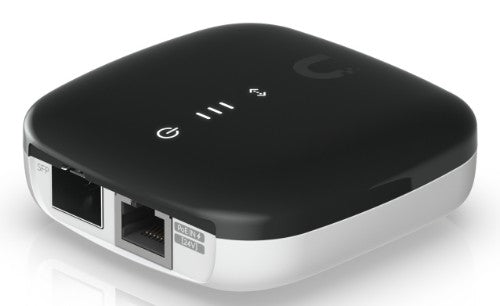

Media Converter, 1x SFP, 1x GbE RJ45 LAN, Passive PoE, 24V, 70 g
Key Features

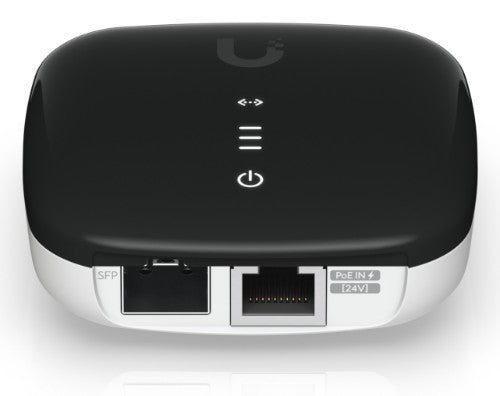

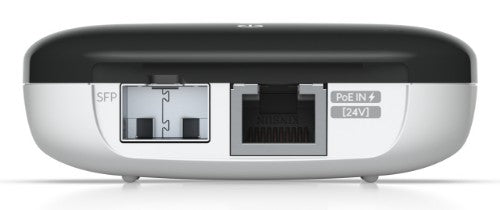

- (1) SFP port and (1) GbE RJ45 LAN port
- Fiber-to-Ethernet conversion
- Fiber connectivity to any PoE device
- Designed for indoor use
Description
A fiber-to-copper media module that allows wireless equipment without SFP ports to support fiber uplinks up to 1 Gbps.Specifications
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SFP |
| Features | |
| Housing material | Polycarbonate (PC) |
| LED indicators | LAN, Status |
| Product colour | Black, White |
| Internal | No |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 1 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| Power consumption (max) | 1.5 W |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
| Width | 76.5 mm |
| Depth | 76.5 mm |
| Weight | 70 g |
| Height | 26.8 mm |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Housing material | Polycarbonate (PC) |
| Internal | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Indication | |
| LED indicators | LAN, Status |
| Design | |
| Housing material | Polycarbonate (PC) |
| LED indicators | LAN, Status |
| Product colour | Black, White |
| Internal | No |
| Colour | |
| Product colour | Black, White |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
