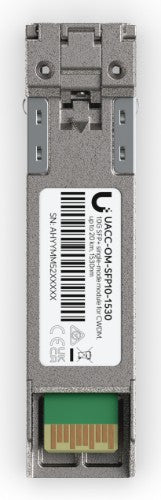

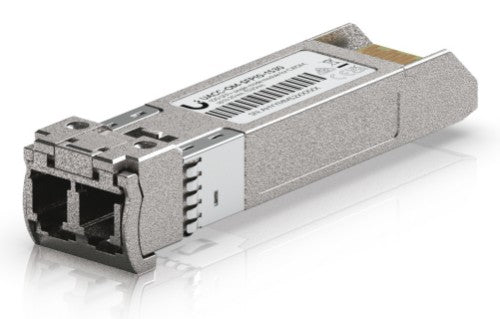

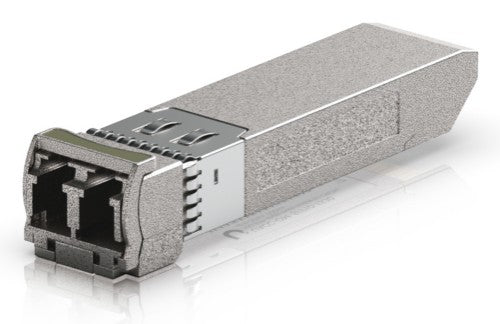

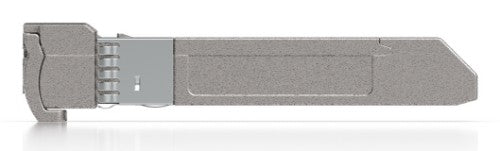

10G, CWDM, Single-Mode, Optical Module, 1530nm
Key Features
- Max data rate: 10 Gbps
- Compatible with SFP+ and SFP interfaces
- Duplex LC UPC connector
- Operate in pairs of the same wavelength
- Supports single-mode fiber connections up to 20 km
Description
SFP+ transceiver for CWDM that supports 10G connections up to 20 km using single-mode fiber with a duplex LC UPC connector.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Tx wavelength (max) |
1340 nm |
| Rx wavelength (max) |
1620 nm |
| Fiber optic connector |
LC (UPC) |
| Maximum transfer distance |
20000 m |
| Wavelength |
1530 nm |
| Maximum data transfer rate |
11300 Mbit/s |
| Interface type |
SFP+ |
| Single-mode fiber (SMF) supported |
Yes |
| Coarse Wavelength Division Multiplexing (CWDM) |
Yes |
| Product colour |
Grey, Khaki |
| Features |
|---|
| Product colour |
Grey, Khaki |
| Form factor |
SFP+ |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC (UPC) |
| Maximum data transfer rate |
11300 Mbit/s |
| Interface type |
SFP+ |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Maximum transfer distance |
20000 m |
| Wavelength |
1530 nm |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
