Acer Large Venue PL6520, 6000 ANSI lumens, DLP, 1080p (1920x1080), 50000:1, 16:9, 4:3
Description
Acer Large Venue PL6520. Projector brightness: 6000 ANSI lumens, Projection technology: DLP, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 17.63 - 27.90 mm, Aperture range (F-F): 2.3 - 3. Serial interface type: RS-232, HDMI version: 1.4b/2.0. Noise level: 33 dB, Noise level (economic mode): 27 dB
Specifications
| Projector |
|---|
| Projector native resolution |
1080p (1920x1080) |
| Native aspect ratio |
16:9 |
| Supported aspect ratios |
4:3 |
| Contrast ratio (typical) |
50000:1 |
| Zoom ratio |
1.7:1 |
| Vertical synchronization (min) |
24 kHz |
| Vertical synchronization (max) |
120 kHz |
| Keystone correction, vertical |
+/- 30° |
| Keystone correction, horizontal |
+/- 30° |
| Horizontal synchronization (min) |
15 kHz |
| Horizontal synchronization (max) |
100 kHz |
| Projection technology |
DLP |
| Projector brightness |
6000 ANSI lumens |
| Zoom type |
Manual |
| Lamps |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Light source |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Lens system |
|---|
| Zoom ratio |
1.7:1 |
| Focus |
Manual |
| Focal length range |
17.63 - 27.90 mm |
| Aperture range (F-F) |
2.3 - 3 |
| Throw ratio |
1.2 - 2.04 |
| Zoom type |
Manual |
| Video |
|---|
| Full HD |
Yes |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
30 W |

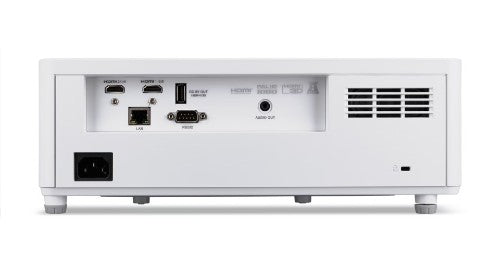

| Ports & interfaces |
|---|
| HDMI version |
1.4b/2.0 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Composite video in |
0 |
| Audio (L/R) in |
0 |
| Audio (L/R) out |
1 |
| Serial interface type |
RS-232 |
| Component video (YPbPr/YCbCr) in |
0 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Storage |
|---|
| Card reader integrated |
No |
| Sound emission |
|---|
| Noise level |
33 dB |
| Noise level (economic mode) |
27 dB |
| Technical details |
|---|
| Product colour |
White |
| Performance |
|---|
| Noise level |
33 dB |
| Noise level (economic mode) |
27 dB |
| Features |
|---|
| Noise level |
33 dB |
| Noise level (economic mode) |
27 dB |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
30 W |
| Design |
|---|
| Product type |
Large venue projector |
| Cable lock slot type |
Kensington |
| Product colour |
White |
| Cable lock slot |
Yes |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| Power source |
AC |
| Power consumption (typical) |
245 W |
| Power consumption (standby) |
0.5 W |
| Security |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
4.5 kg |
| Width |
374 mm |
| Depth |
265 mm |
| Height |
108 mm |
