Description
Mesh AX3000 Wireless Access Point, 2.5GbE Uplink, additional 1GbE for Wired Connectivity, Cylinder Form-factor
Key Features
- Wi-Fi 6 Mesh Wireless Access Point
- AX3000 – 11ax Dual Band Wireless
- WPA3 Security – Stronger Security with WPA3 Personal & Enterprise
- Power through DC Power Adapter (included)
- Multi-SSID over Mesh – Separate Internal and Guest Networks over Mesh*
- 2.5Gb Ethernet Uplink & Additional GbE interface
- Centrally Managed or Standalone Operation
- Root AP for AP Management
Description

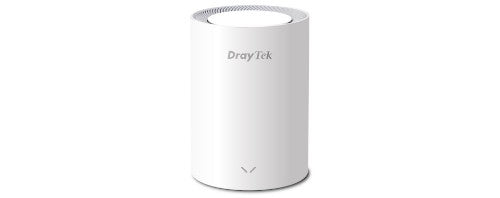

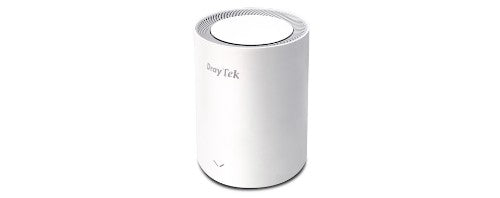

The VigorAP 805 is a high-performance Mesh Wireless Access Point. It offers up to 3Gbps dual-band wireless performance and up to 2.5Gb Ethernet connectivity. The second Gigabit Ethernet port can be used as a mini switch to connect a computer or printer.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| Performance | |
| Full duplex | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Automatic channel selection | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Spread spectrum method | OFDMA |
| Web-based management | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Management platform | Draytek vigorACS |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wi-Fi roaming | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Smart mesh system | Yes |
| Cloud services supported | Draytek VigorACS |
| Operating system installed | DrayOS |
| Network | |
| Spread spectrum method | OFDMA |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Management features | |
| VLAN support | Yes |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Management platform | Draytek vigorACS |
| Batch upgrade | Yes |
| Local AP management | Telnet |
| Command-line interface (CLI) | Yes |
| Features | |
| Full duplex | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Automatic channel selection | Yes |
| Spread spectrum method | OFDMA |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| Fast roaming | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wi-Fi roaming | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Smart mesh system | Yes |
| Cloud services supported | Draytek VigorACS |
| Maximum data transfer rate (2.4 GHz) | 2400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 600 Mbit/s |
| Fit AP mode features | 802.11k & 802.11v smart roaming, Mesh networking, WDS zero-configuration deployment, Wireless distribution system (WDS) |
| BeamForming | Yes |
| Operating system installed | DrayOS |
| Security | |
| Number of SSID supported | 16 |
| Auto Wireless Distribution System (WDS) | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, SSID, WPA, WPA2, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise, WPS |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Service Set Identifier (SSID) features | Hidden SSID, Multiple SSIDs, SSID broadcast, SSID broadcast on/off |
| Protocols | |
| Management protocols | TR-069 |
| DHCP server | Yes |
| DHCP client | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Ports & interfaces | |
| Interface | 2 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 12 W |
| Power over Ethernet (PoE) | No |
| Design | |
| Housing material | Plastic |
| Placement | Desk, Table, Shelf |
| Product colour | White |
| LED indicators | LAN, System |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4.9 dBi |
| Technical details | |
| Firmware upgradeable | Yes |
| Rack mounting | No |
| PSTI certified | Yes |
| Compliance certificates | CE, UKCA |
| Certificates | |
| PSTI certified | Yes |
| Compliance certificates | CE, UKCA |
| Indication | |
| LED indicators | LAN, System |
| Software | |
| Access Control List (ACL) | Yes |
| Fast roaming | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Batch upgrade | Yes |
| Local AP management | Telnet |
| Weight & dimensions | |
| Width | 110 mm |
| Depth | 110 mm |
| Weight | 405 g |
| Height | 153 mm |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Rack mounting | No |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
