Description
Intel Core i7-14700 (33MB Cache), 32GB DDR5-SDRAM, 1000GB SSD, Intel UHD Graphics 770, NVIDIA RTX A1000 (8GB GDDR6), LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit

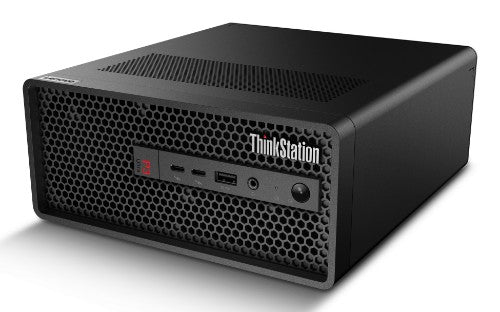

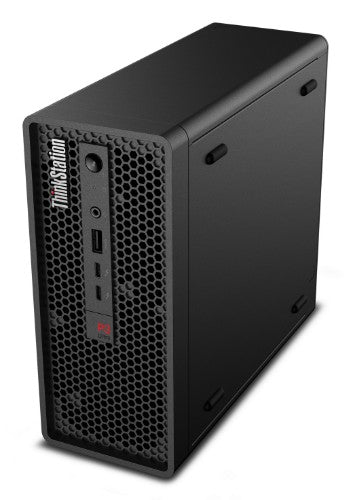

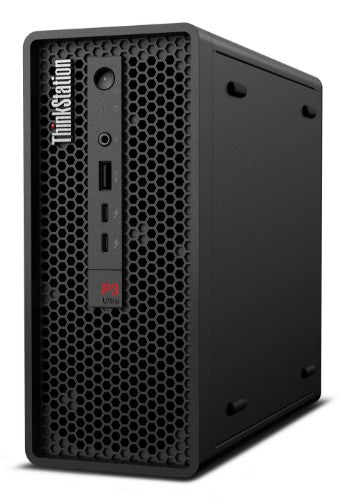

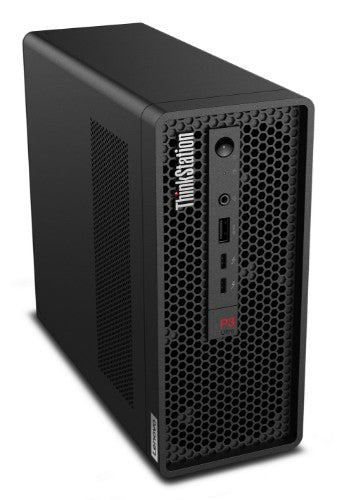

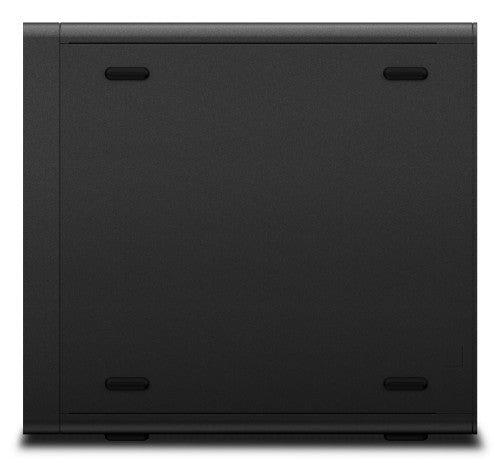

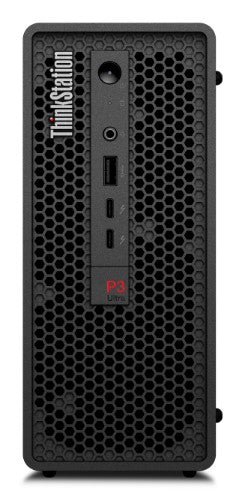

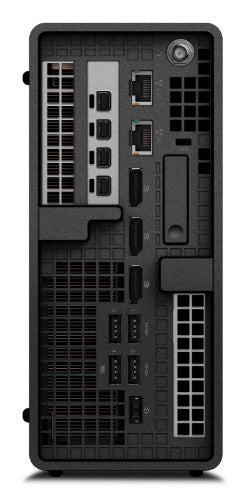

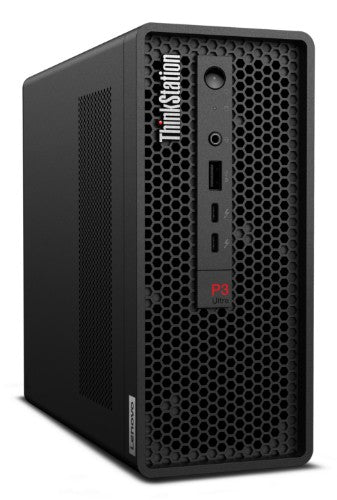

The Lenovo ThinkStation P3 Ultra boasts a revolutionary 3.9L form factor in a space-efficient chassis. Ideal for demanding workflows that require flexible configurations and maximum space savings, it’s designed to go wherever today’s professionals need to be. Powered by Intel vPro® with Intel® Core™ processors and with a choice of optional NVIDIA® discrete graphics, this workstation breaks new ground with an intelligently compact design that doesn’t compromise on functionality.
Configurable for today & tomorrow
No matter how heavy or complex your workflow needs are, the ThinkStation P3 Ultra can be configured to meet them—now and well into the future. With support for up to 128GB of memory and 9TB of storage, plus an array of high-speed ports, including three DisplayPorts and dual ethernet ports, this workstation packs an unimaginable level of power and performance. It also comes with a USB mouse and keyboard.
Makes your workflows flow
The ThinkStation P3 Ultra, with its optimal size and performance, is perfect for any industry, from architecture to healthcare and finance to education. MIL-SPEC-certified, it runs in even the most extreme conditions, from the Arctic to deserts. It also zips through high-performance workflows, such as CAD and Edge/IoT. And with its extensive list of ISV-certified applications, your most complex projects will be executed with ease.
See the complete list of ISV certifications
Remote management, made easy
The ThinkStation P3 Ultra supports the pluggable baseboard management controller (BMC). A specialized service processor, BMC uses sensors to track the physical condition of hardware such as PCs and network servers. It enables advanced remote monitoring and systems management, including installing BIOS updates and monitoring fan speeds, in this critical time of digital transformation.
All the security you need
The ThinkStation P3 Ultra comes with ThinkShield—a suite of hardware and software designed to safeguard both your workstation and data. It includes essential security features like Trusted Platform Module (TPM) to encrypt your sensitive data and programs to prevent unauthorized system access. It also has a self-healing BIOS should the BIOS be corrupted or maliciously attacked. For extra peace of mind, this PC supports Windows firmware updates.
Key Features
- Windows 11 Pro 64-bit
- Intel Core i7-14700 (33MB Cache)
- NVIDIA RTX A1000 (8GB GDDR6)
- 32GB DDR5-SDRAM (1 x 32) & 1000GB SSD
Description
Superior performance, smaller footprintThe Lenovo ThinkStation P3 Ultra boasts a revolutionary 3.9L form factor in a space-efficient chassis. Ideal for demanding workflows that require flexible configurations and maximum space savings, it’s designed to go wherever today’s professionals need to be. Powered by Intel vPro® with Intel® Core™ processors and with a choice of optional NVIDIA® discrete graphics, this workstation breaks new ground with an intelligently compact design that doesn’t compromise on functionality.
Configurable for today & tomorrow
No matter how heavy or complex your workflow needs are, the ThinkStation P3 Ultra can be configured to meet them—now and well into the future. With support for up to 128GB of memory and 9TB of storage, plus an array of high-speed ports, including three DisplayPorts and dual ethernet ports, this workstation packs an unimaginable level of power and performance. It also comes with a USB mouse and keyboard.
Makes your workflows flow
The ThinkStation P3 Ultra, with its optimal size and performance, is perfect for any industry, from architecture to healthcare and finance to education. MIL-SPEC-certified, it runs in even the most extreme conditions, from the Arctic to deserts. It also zips through high-performance workflows, such as CAD and Edge/IoT. And with its extensive list of ISV-certified applications, your most complex projects will be executed with ease.
See the complete list of ISV certifications
Remote management, made easy
The ThinkStation P3 Ultra supports the pluggable baseboard management controller (BMC). A specialized service processor, BMC uses sensors to track the physical condition of hardware such as PCs and network servers. It enables advanced remote monitoring and systems management, including installing BIOS updates and monitoring fan speeds, in this critical time of digital transformation.
All the security you need
The ThinkStation P3 Ultra comes with ThinkShield—a suite of hardware and software designed to safeguard both your workstation and data. It includes essential security features like Trusted Platform Module (TPM) to encrypt your sensitive data and programs to prevent unauthorized system access. It also has a self-healing BIOS should the BIOS be corrupted or maliciously attacked. For extra peace of mind, this PC supports Windows firmware updates.
Specifications
| Processor | |
|---|---|
| Processor generation | Intel® Core™ i7 (14th gen) |
| Bus type | DMI4 |
| Processor cache type | Smart Cache |
| Processor cache | 33 MB |
| Processor model | i7-14700 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 5.4 GHz |
| Processor threads | 28 |
| Processor cores | 20 |
| Processor family | Intel® Core™ i7 |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Memory | |
| Non-ECC | Yes |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Memory slots | 4x SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory data transfer rate | 4000 MT/s |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Card reader integrated | No |
| Total storage capacity | 1 TB |
| SSD form factor | M.2 |
| Total SSDs capacity | 1 TB |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 8 GB |
| Graphics card Mini DisplayPort ports quantity | 4 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card model | Intel UHD Graphics 770 |
| Number of discrete graphics cards | 1 |
| Discrete GPU manufacturer | NVIDIA |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates | 1000,2500,100 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| LAN controller | Intel® I210-AT, Intel I225-LM |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.2 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Mini Tower |
| Audio system | High Definition Audio |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Motherboard chipset | Intel W680 |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
| Compliance certificates | RoHS |
| Design | |
| Volume | 3.9 L |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini Tower |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Performance | |
| BIOS type | UEFI |
| Audio chip | Realtek ALC897-Q |
| Number of speakers | 1 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, Supervisor |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Audio system | High Definition Audio |
| Built-in speaker(s) | Yes |
| Motherboard chipset | Intel W680 |
| Software | |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
| CPU configuration (max) | 1 |
| Power | |
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 300 W |
| Operational conditions | |
| Operating altitude | 0 - 3048 m |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Non-operating altitude | 0 - 12192 m |
| Certificates | |
| Certification | MIL-STD-810H |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
| Weight & dimensions | |
| Volume | 3.9 L |
| Width | 87 mm |
| Depth | 223 mm |
| Height | 202 mm |
| Weight | 3.6 kg |
| Packaging content | |
| Mouse included | Yes |
| Display included | No |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| Display | |
| Display included | No |
| Other features | |
| Number of speakers | 1 |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
| Built-in speaker(s) | Yes |
