Description

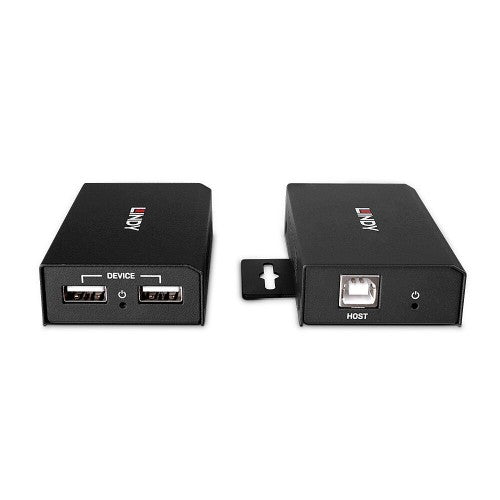

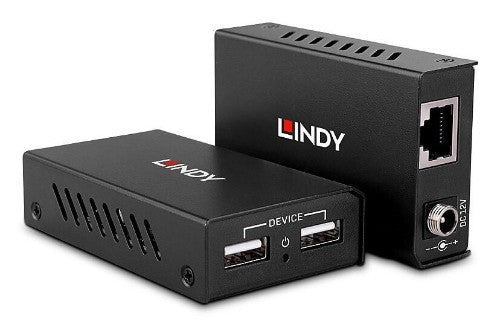

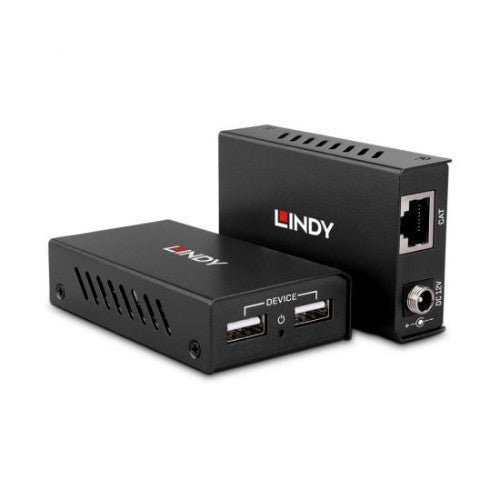

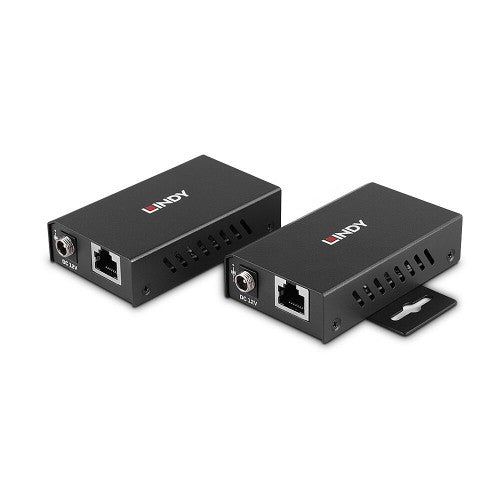

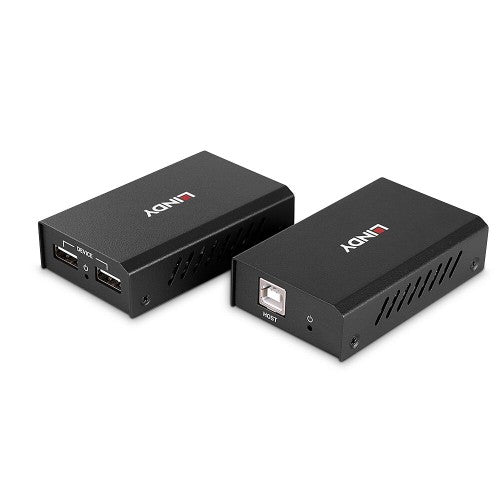

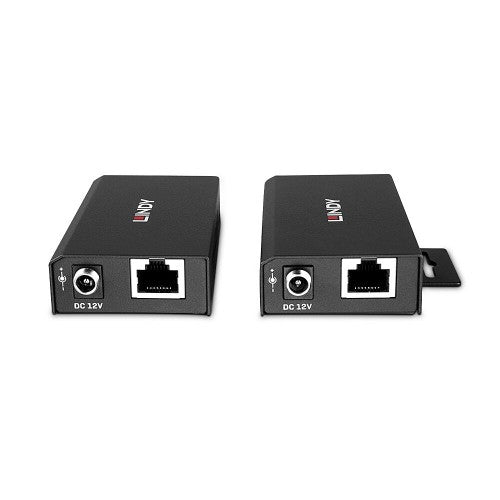

100m 2 Port USB 2.0 Cat. 6 Extender, Black
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Key Features
- Extend two USB 2.0 ports up to 100m using low cost Cat. 6 network cable (not included)
- Bi-directional PoC (Power over Cable) requires a power supply connection from only one side of the installation
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- Plug & Play installation
Description
This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 100m. A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Specifications
| Features | |
|---|---|
| Material | Metal |
| Certification | CE, FCC, RoHS & REACH, CP65 |
| Type | AV transmitter & receiver |
| Maximum transfer distance | 100 m |
| Bandwidth | 0.48 Gbit/s |
| Product colour | Black |
| Chipset | VA6000 |
| Technical details | |
| Material | Metal |
| Certification | CE, FCC, RoHS & REACH, CP65 |
| Package type | Box |
| Type | AV transmitter & receiver |
| Maximum transfer distance | 100 m |
| Bandwidth | 0.48 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Quantity per pack | 2 pc(s) |
| Ports & interfaces | |
| USB ports quantity | 3 |
| USB version | 2.0 |
| USB connector type | USB Type-B |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 82 mm |
| Package depth | 115 mm |
| Height | 20 mm |
| Depth | 49 mm |
| Package width | 200 mm |
| Package height | 75 mm |
| Weight | 200 g |
| Package weight | 600 g |
| Packaging data | |
| Package type | Box |
| Package depth | 115 mm |
| Package width | 200 mm |
| Package height | 75 mm |
| Package weight | 600 g |
| Quantity per pack | 2 pc(s) |
| Packaging content | |
| Mounting brackets included | Yes |
| Cables included | USB Type-A to USB Type-B |
| Packaging content | Transmitter unit Receiver unit 0.9m USB 2.0 A Male to B Male cable Multi-Country Power Supply (EU, UK, US & AUS) Mounting Brackets Lindy Manual |
| Manual | Yes |
