Description

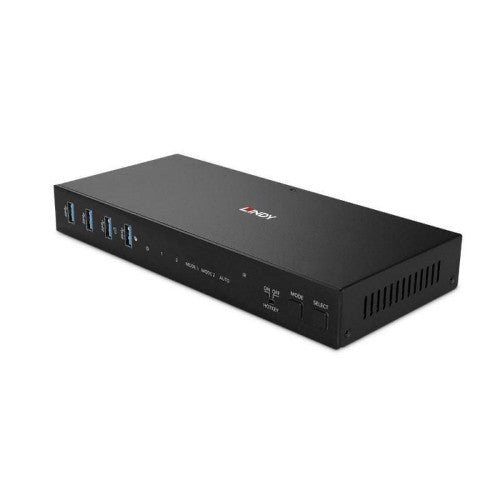

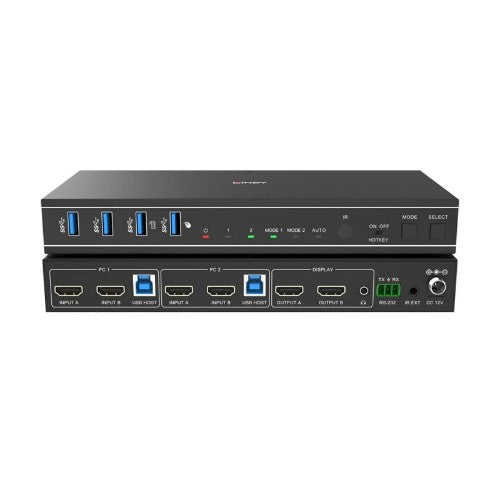

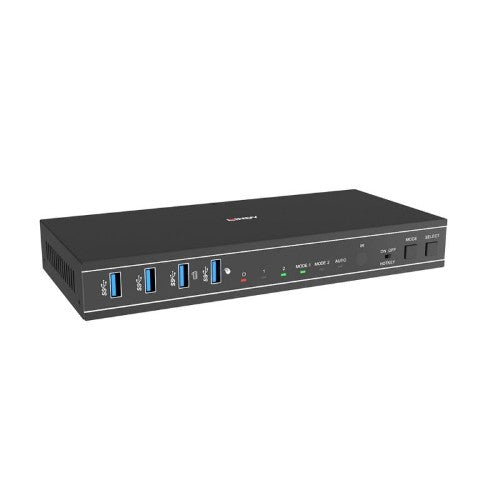

2 Port Dual Head HDMI 4K60, USB 3.0 KVM Switch
Switching methods are:
- Front panel buttons
- Hotkeys (with on/off button)
- IR remote control
- RS-232 commands
Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The additional support for (HDR) High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output port also allow users to connect headphones or speakers to add immersive 2CH audio.
USB ports allow the connection of mouse, keyboard and additional USB 3.2 Gen 1 devices such as web cam, flash drive, printer, etc. Auto-switch function enables automatic switching between connected PCs and DDM function ensures that all connected USB devices retain their settings and functionality when switching between PCs ensuring the maximum compatibility.
With advanced features and different switching methods, this switch is the perfect solution for professional KVM installations, plug and play presentations and home offices.
Key Features

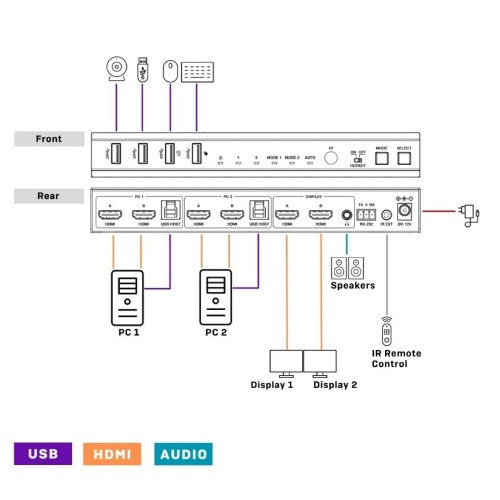

- Controls two HDMI® equipped PCs from a single console with keyboard, mouse and two monitors
- Dual Head support with 2 modes, single and dual PC mode
- Supports HDMI® 18G resolutions up to 4K@60Hz 4:4:4 with HDR
- USB 3.0 and 3.5mm stereo audio port to connect additional USB devices, speakers or headphones
Description

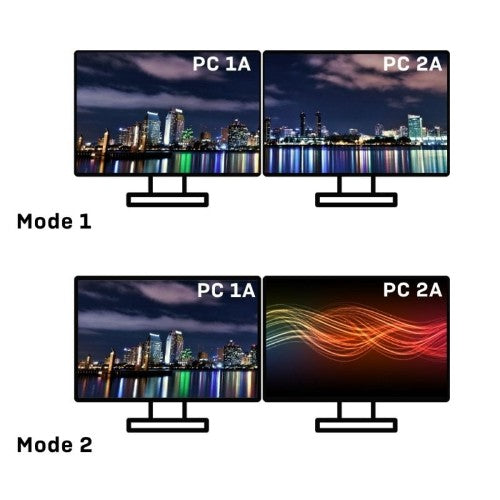

This KVM Switch can share 2 displays and USB devices between 2 computers in different modes: Single PC mode with both video showing the dual head input from one source; Dual PC mode with the first display fixed on the first PC1 input and the second display fixed on the first PC2 input.Switching methods are:
- Front panel buttons
- Hotkeys (with on/off button)
- IR remote control
- RS-232 commands
Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The additional support for (HDR) High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output port also allow users to connect headphones or speakers to add immersive 2CH audio.
USB ports allow the connection of mouse, keyboard and additional USB 3.2 Gen 1 devices such as web cam, flash drive, printer, etc. Auto-switch function enables automatic switching between connected PCs and DDM function ensures that all connected USB devices retain their settings and functionality when switching between PCs ensuring the maximum compatibility.
With advanced features and different switching methods, this switch is the perfect solution for professional KVM installations, plug and play presentations and home offices.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| USB connector type | USB Type-A, USB Type-B |
| HDMI version | 2.0 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| Headphone outputs | 2 |
| HDMI ports quantity | 4 |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 4 |
| HDCP | Yes |
| Performance | |
| HDCP | Yes |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP version | 2.3 |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Status |
| Hot keys | Yes |
| Warranty period | 2 year(s) |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Status |
| Hot keys | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| Power | |
| Output current | 1 A |
| Power source | DC |
| Input voltage | 12 V |
| Video | |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 609 g |
| Package width | 300 mm |
| Package depth | 185 mm |
| Package height | 115 mm |
| Package weight | 1.61 kg |
| Packaging data | |
| Package type | Box |
| Package width | 300 mm |
| Package depth | 185 mm |
| Package height | 115 mm |
| Package weight | 1.61 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | DC, HDMI, USB Type-A to Micro USB-B |
| Quick installation guide | Yes |
| Manual | Yes |
| Remote control included | Yes |
| Package type | Box |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Other features | |
| Warranty period | 2 year(s) |
| Push button | Yes |
| Hot keys | Yes |
