Description
Intel/AMD, 260 W TDP, 2x 120 mm, 1800 RPM, ARGB, DC 12 V, 277 x 120 x 27 mm

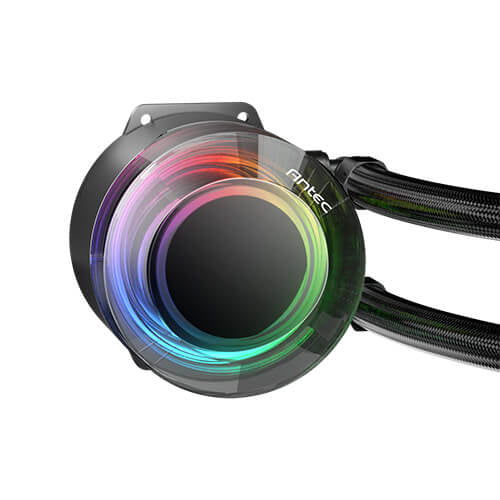

Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump

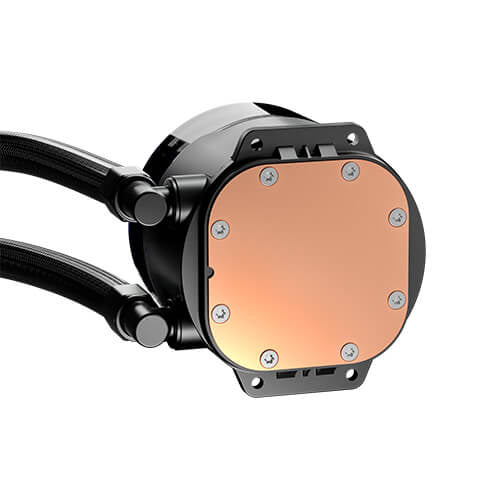

Massive Copper Base Plate
Provides highly efficient cooling at all loads.

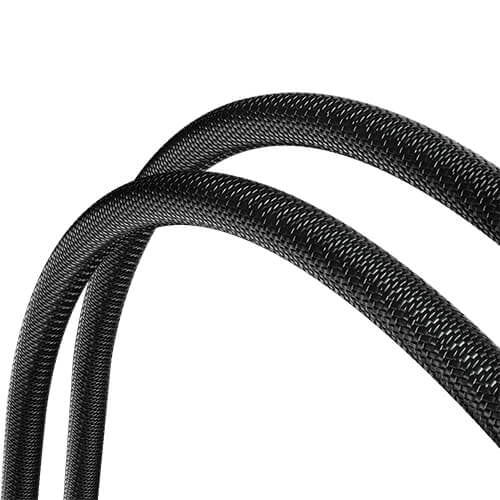

EPDM High-Density Tubing
The elastic and durable EPDM high-density tubing makes the minimal evaporation of liquid.

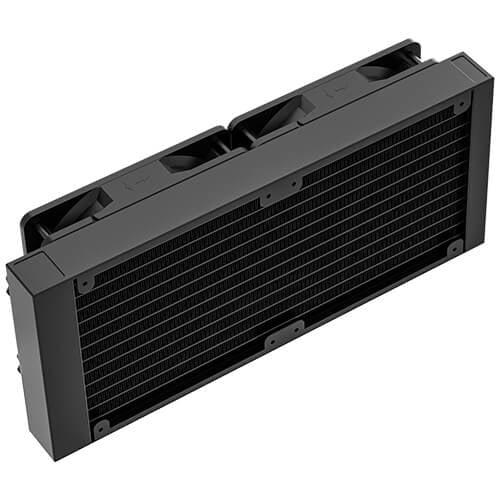

Superior Fin Density
Massive 13 fins dissipate heat rapidly.

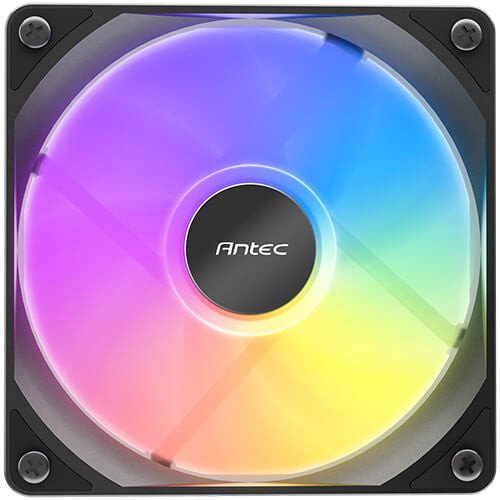

PWM ARGB Fan
Comes with powerful 120mm ARGB PWM radiator fans, providing practical functionality and strong cooling performance.
Extreme Cooling Performance
800±200~1800±10% RPM
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
CPU Socket Compatibility
Intel compatibility : LGA 115X / 1200 / 1700 / 1851 / 20XX
AMD compatibility : AM3 / AM4 / AM5
Description
Suspended SpiralPump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump
Massive Copper Base Plate
Provides highly efficient cooling at all loads.
EPDM High-Density Tubing
The elastic and durable EPDM high-density tubing makes the minimal evaporation of liquid.
Superior Fin Density
Massive 13 fins dissipate heat rapidly.
PWM ARGB Fan
Comes with powerful 120mm ARGB PWM radiator fans, providing practical functionality and strong cooling performance.
Extreme Cooling Performance
800±200~1800±10% RPM
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
CPU Socket Compatibility
Intel compatibility : LGA 115X / 1200 / 1700 / 1851 / 20XX
AMD compatibility : AM3 / AM4 / AM5
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 3-pin + 4-pin |
| Number of fins | 13 |
| Bearing type | Hydraulic |
| Thermal Design Power (TDP) | 260 W |
| Type | Liquid cooling kit |
| Operating temperature (T-T) | -10 - 60 °C |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5 |
| Maximum airflow | 71.5 cfm |
| Maximum air pressure | 2.45 mmH2O |
| Number of fans | 2 fan(s) |
| Pump connector | 3-pin |
| Fan 2 rotational speed (min) | 800 RPM |
| Fan 2 rotational speed (max) | 1800 RPM |
| Fan noise level (max) | 31 dB |
| Pump noise level | 28 dB |
| Pump motor speed | 2800 RPM |
| Fan speed (min) | 800 RPM |
| Fan speed (max) | 1800 RPM |
| Pump's mean time to failure (MTTF) | 40000 h |
| Fan's mean time to failure (MTTF) | 40000 h |
| Design | |
| Fan connector | 3-pin + 4-pin |
| Number of fins | 13 |
| Number of fans | 2 fan(s) |
| Illumination colour | Multi |
| Product colour | Black |
| Illumination LED | Yes |
| Radiator material | Aluminum |
| Technical details | |
| Thermal Design Power (TDP) | 260 W |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5 |
| Maximum airflow | 71.5 cfm |
| Maximum air pressure | 2.45 mmH2O |
| Number of fans | 2 fan(s) |
| Fan connector | 3-pin + 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 3-pin + 4-pin |
| Pump connector | 3-pin |
| Power | |
| Rated voltage | 12 V |
| Thermal Design Power (TDP) | 260 W |
| Fan rated voltage | 10.8 - 13.2 V |
| Pump power consumption | 3 W |
| Pump voltage | 12 V |
| Pump current | 250 mA |
| Fan current | 0.25 A |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Fan 2 dimensions (W x D x H) | 120 x 25 x 120 mm |
| Radiator width | 12 cm |
| Radiator depth | 27.7 cm |
| Radiator height | 2.7 cm |
| Pump width | 6.7 cm |
| Pump depth | 6.7 cm |
| Pump height | 4.85 cm |
| Indication | |
| Illumination colour | Multi |
| Packaging data | |
| Package type | Box |

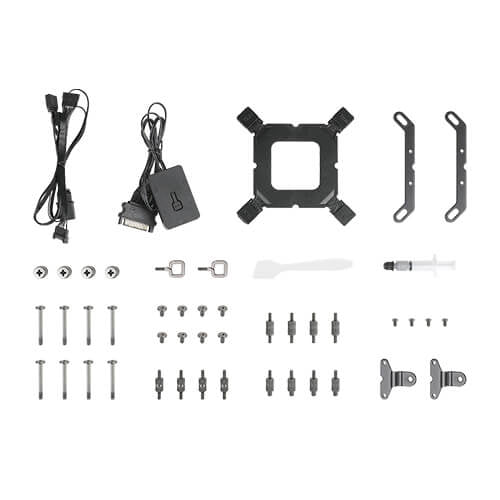

| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU socket spacer(s) | Yes |
| CPU bracket(s) | Yes |
| Other features | |
| Fan rated voltage | 10.8 - 13.2 V |
| Pump connector | 3-pin |
