Description
RJ45, 200mV p-p, 15W, 500mA, 86 x 46 x 33 mm
Key Features
- Delivers up to 15W of PoE
- Surge, peak pulse, and overcurrent protection

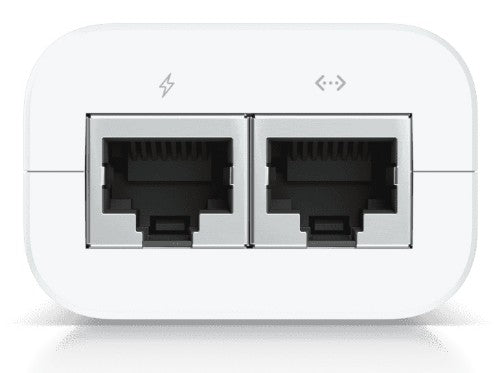

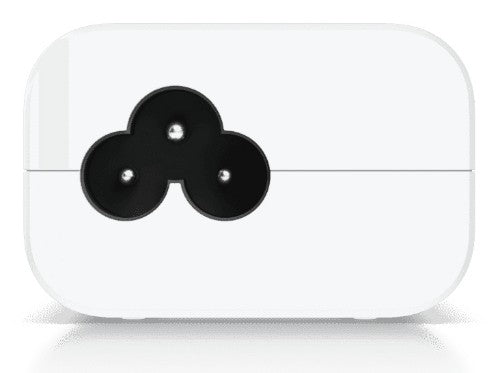

- Contains RJ45 data input, AC cable with earth ground, and PoE output
- LED indicator for status monitoring
Description
An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.Specifications
| Network | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) voltage | 48 V |
| Features | |
| Easy to install | Yes |
| Surge protection | Yes |
| Product colour | White |
| LED indicators | Status |
| Ports & interfaces | |
| RJ-45 input ports | 2 |
| Power | |
| Output power | 15 W |
| Power over Ethernet (PoE) voltage | 48 V |
| Input current | 0.5 A |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Inrush current | 100 A |
| Efficiency | 84.25% |
| Switching frequency | 65 kHz |
| Line regulation | 3% |
| Load regulation | 5% |
| Response time | 1 ns |
| Certificates | |
| Compliance certificates | CE, UL |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating temperature (T-T) | -30 - 70 °F |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Weight | 100 g |
| Width | 86 mm |
| Depth | 46 mm |
| Height | 33 mm |
| Technical details | |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -30 - 70 °F |
| Input current | 0.5 A |
| Ethernet interface type | Gigabit Ethernet |
| Compliance certificates | CE, UL |
| Indication | |
| LED indicators | Status |
