Description
1/2.7'', 2592 x 1944, 0.1 lux, 20 fps, 360° IR, WDR, 3.18 - 7.42 mm, -40-50°C, 10-100%, IK10, IP66, H.264, H.265, 20 m, 0.1 lx, 2 µm, 55 dB, Micro SD, 8192 MB, 23.7 W, 5 MP, Aluminium, Polycarbonate, White, 3.18 - 7.42 mm, 3 kg
Wide area surveillance with high-quality overview—24/7

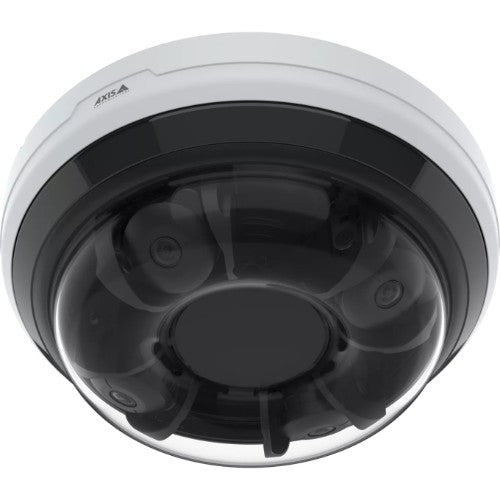

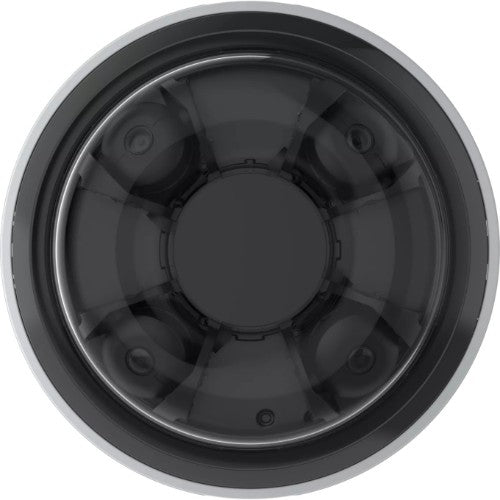

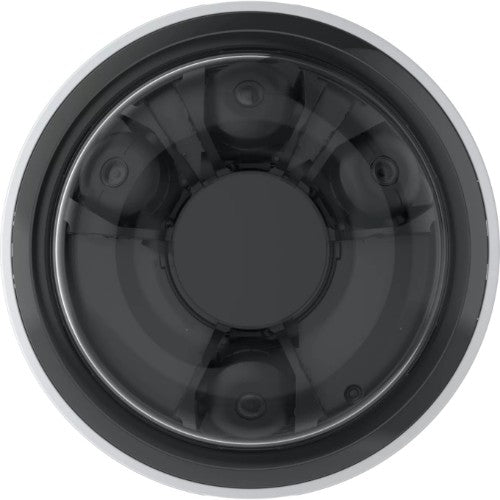

Ideal for expansive outdoor areas, AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps to capture clear images over great distances. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear images in low light or darkness as well as undistorted colors during the day. Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Additionally, thanks to extended tilt functionality, all four sensors are fully tiltable ensuring you have the flexibility to see what you want to see. Furthermore, you can run AXIS Object Analytics on multiple channels to detect, classify, track, and count people and vehicles.
Brilliant design for cost-effective installation

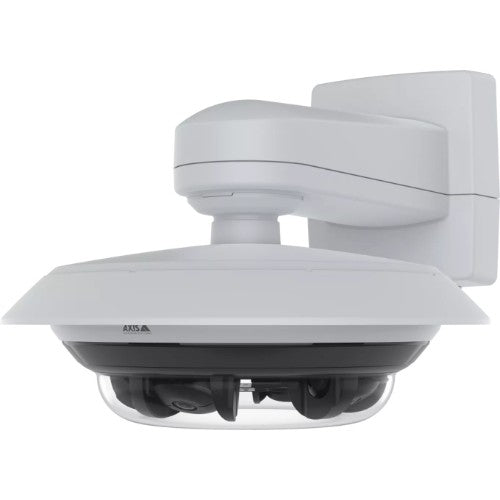

This stylish, discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. And with four camera heads in one camera, it offers fast, accurate, and cost-effective installation. Additionally, PTRZ (Pan, Tilt, Roll, Zoom) functionality means that there’s no need to physically adjust the camera. You can remotely move and set up your camera allowing for quick and easy installation. This ensures less disruption and downtime and reduces the need to dispatch a technician. Presets make it easy to configure multiple devices. In addition, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.
Powerful with strong security
This AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and effi-cient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified secure cryptographic key storage and operations.
Key Features
- 4*5 MP at 20 fps per channel
- Remote pan, tilt, roll, zoom (PTRZ)
- Support for powerful analytics
- 360° IR illumination with individually controlled LEDs
- Built-in cybersecurity with Axis Edge Vault
Description
AXIS P3747-PLVE lets you monitor four different areas, around the clock, and even in challenging lighting. Stylish and discreet, this camera also offers PTRZ functionality for ease of installation and configuration.Wide area surveillance with high-quality overview—24/7
Ideal for expansive outdoor areas, AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps to capture clear images over great distances. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear images in low light or darkness as well as undistorted colors during the day. Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Additionally, thanks to extended tilt functionality, all four sensors are fully tiltable ensuring you have the flexibility to see what you want to see. Furthermore, you can run AXIS Object Analytics on multiple channels to detect, classify, track, and count people and vehicles.
Brilliant design for cost-effective installation
This stylish, discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. And with four camera heads in one camera, it offers fast, accurate, and cost-effective installation. Additionally, PTRZ (Pan, Tilt, Roll, Zoom) functionality means that there’s no need to physically adjust the camera. You can remotely move and set up your camera allowing for quick and easy installation. This ensures less disruption and downtime and reduces the need to dispatch a technician. Presets make it easy to configure multiple devices. In addition, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.
Powerful with strong security
This AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and effi-cient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified secure cryptographic key storage and operations.
Specifications
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 19 |
| Languages support | Arabic, Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, Greek, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Remote viewing | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Maximum operating distance | 20 m |
| Built-in light | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| LED indicators | Activity |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0.1 lx |
| Camera shutter speed | 1/19500 - 1 s |
| Camera tilt control | Yes |
| Camera pixel size | 2 µm |
| Lens viewing angle, horizontal | 360° |
| Lens viewing angle, vertical | 71.5 - 30.0° |
| Horizontal field of view (thermal module) | 360° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.78 mm (1 / 2.78") |
| Number of sensors | 1 |
| Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Lens system | |
| Number of lenses | 3 |
| Fixed focus | Yes |
| Focus | Motorized |
| Zoom capability | Yes |
| Focal length range | 3.18 - 7.42 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Video compression formats | M-JPEG, MPEG, MPEG4 |
| Maximum resolution | 2592 x 1944 pixels |
| Video formats supported | H.264, H.265 |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 2560 x 1440, 2592 x 1944 |
| Frame rate | 20 fps |
| Video streaming | Yes |
| Total megapixels | 5 MP |
| Video intelligence analytic | Yes |
| Video recording | Yes |
| Audio | |
| Audio input channels | 2.0 channels |
| Audio output channels | 2.0 channels |
| Built-in speaker(s) | Yes |
| Frequency range | 50 - 60 Hz |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Audio formats supported | RTSP |
| Audio detection | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Number of simultaneous live view channels | 4 channels |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM capacity | 4096 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Privacy protection | Yes |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection |
| Motion sensor | Yes |
| Video motion detection | Yes |
| Security algorithms | 256-bit AES-XTS, FIPS 140-2, HTTPS, SNMP |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Management features | |
| Remotely operated | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 23.7 W |
| Power consumption (typical) | 10.8 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 141 mm |
| Depth | 220 mm |
| Height | 75 mm |
| Weight | 3 kg |
| Features | |
| License plate recognition | Yes |
| Sustainability | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), ICES, KC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UL, VCCI, cUL |
| Packaging content | |
| Number of cameras | 1 |
| Memory card included | Yes |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Manual | Yes |
| Technical details | |
| Doesn't contain | BFR, CFR, PVC |
| Warranty period | 5 year(s) |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), ICES, KC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UL, VCCI, cUL |
| Other features | |
| Focus | Motorized |
| Video compression formats | M-JPEG, MPEG, MPEG4 |
| Doesn't contain | BFR, CFR, PVC |
| Warranty period | 5 year(s) |
