Description

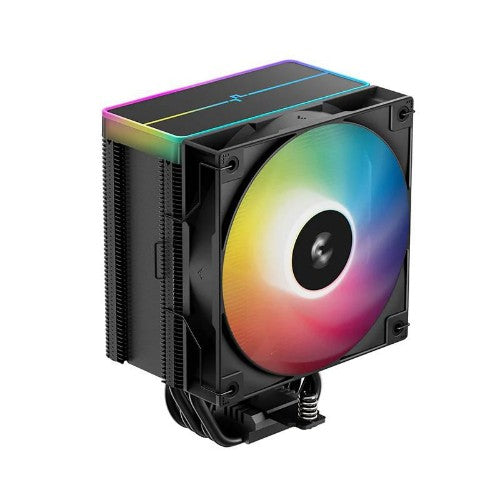

DeepCool AG500 BK ARGB V2, Air cooler, 11.9 cm, Black
Description
DeepCool AG500 BK ARGB V2. Type: Air cooler, Fan diameter: 11.9 cm, Maximum air pressure: 2.04 mmH2O, Bearing type: Hydraulic. Width: 95 mm, Depth: 125 mm, Height: 160 mm. Product colour: BlackSpecifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Bearing type | Hydraulic |
| Number of heat pipes | 5 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 11.9 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Maximum airflow | 67.88 cfm |
| Maximum air pressure | 2.04 mmH2O |
| Number of fans | 1 fan(s) |
| Fan noise level (max) | 29.4 dB |
| Fan speed (min) | 300 RPM |
| Fan speed (max) | 1950 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of heat pipes | 5 |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Illumination LED | Yes |
| LED connector type | 3-pin |
| Technical details | |
| Number of heat pipes | 5 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 11.9 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Maximum airflow | 67.88 cfm |
| Maximum air pressure | 2.04 mmH2O |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| LED voltage | 5 V |
| Fan power consumption | 1.68 W |
| Fan voltage | 12 V |
| Fan current | 0.14 A |
| LED power consumption (fan) | 3.2 W |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
| Width | 95 mm |
| Depth | 125 mm |
| Height | 160 mm |
| Weight | 857 g |
| Radiator width | 6 cm |
| Radiator depth | 12 cm |
| Radiator height | 15.5 cm |
| Other features | |
| LED voltage | 5 V |
