Description

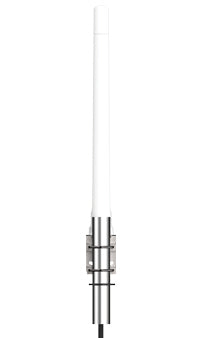

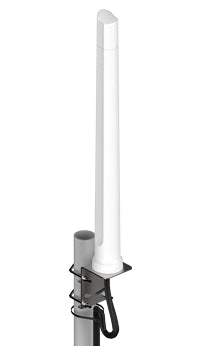

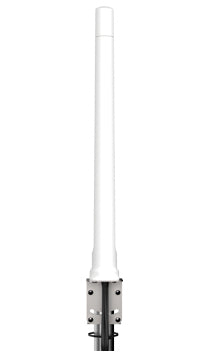

Omni-Directional, 4x4 MIMO 5G/LTE Antenna, 617 - 3800 MHz, 3.5dBi, White
Ultra-Wideband Frequency Coverage: Supports 617 to 3800 MHz, covering all LTE and 5G bands.
4x4 MIMO Capability: Utilizes vertically separated radiating elements to enhance network performance and data throughput.
Superior Pattern Control: Ensures stable omni-directional signal distribution for consistent connectivity.
Future-Proof Design: Covers LTE Band 71 (617 to 698 MHz) and CBRS bands (3400 to 3800 MHz) for inland and commercial deployments.
Reliable Global Connectivity: Guarantees strong signal reception in urban, industrial, and commercial environments.
IP65 Protection Rating: Resistant to dust and water ingress, making it ideal for outdoor urban installations.
The OMNI-214 is a future-ready, high-performance antenna, ensuring robust LTE and 5G connectivity for urban and commercial applications requiring stable, high-speed data transmission.
Ideal Applications
- Enhanced LTE/4G and 5G reception
- Increase system transmission reliability
- High-end industrial grade router applications
- Industrial and commercial LTE/5G deployment
Key Features
- Ultra-wideband, omni-directional antenna
- 4x4 MIMO capability for improved performance
- Covers contemporary LTE/5G bands from 617 to 3800 MHz
- Robust, dust and weather-resistant enclosure design (IP65)
Description
The OMNI-214 is a high-performance ultra-wideband antenna, covering all contemporary LTE and 5G frequency bands from 617 to 3800 MHz. With 4x4 MIMO capability, achieved through vertically separated radiating elements within a single radome, this antenna ensures superior pattern control across the entire frequency range. Designed for urban and commercial applications, the OMNI-214 provides reliable signal reception worldwide and is future-proof for emerging network technologies.Ultra-Wideband Frequency Coverage: Supports 617 to 3800 MHz, covering all LTE and 5G bands.
4x4 MIMO Capability: Utilizes vertically separated radiating elements to enhance network performance and data throughput.
Superior Pattern Control: Ensures stable omni-directional signal distribution for consistent connectivity.
Future-Proof Design: Covers LTE Band 71 (617 to 698 MHz) and CBRS bands (3400 to 3800 MHz) for inland and commercial deployments.
Reliable Global Connectivity: Guarantees strong signal reception in urban, industrial, and commercial environments.
IP65 Protection Rating: Resistant to dust and water ingress, making it ideal for outdoor urban installations.
The OMNI-214 is a future-ready, high-performance antenna, ensuring robust LTE and 5G connectivity for urban and commercial applications requiring stable, high-speed data transmission.
Ideal Applications
- Enhanced LTE/4G and 5G reception
- Increase system transmission reliability
- High-end industrial grade router applications
- Industrial and commercial LTE/5G deployment
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 3.5 dBi |
| Frequency band | 0.617 - 3.8 GHz |
| Impedance | 50 Ω |
| Wi-Fi standards | 802.11g |
| Features | |
| Waterproof | Yes |
| Survival wind speed | 160 km/h |
| Protection features | Dust resistant, Impact resistant, Water resistant, Weather resistant |
| Housing material | Acrylonitrile styrene acrylate (ASA) |
| Mounting pipe | 30 - 50 mm |
| International Protection (IP) code | IP65 |
| Antenna type | Omni-directional antenna |

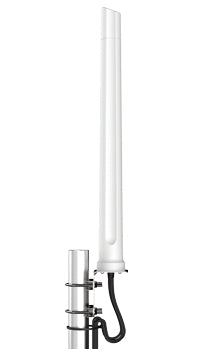

| Mounting | Wall/Pole |
| Product colour | White |
| Cable type | HDF-195 |
| Cable length | 2 m |
| Antenna connector type | SMA |
| Antenna gain level (max) | 3.5 dBi |
| Frequency band | 0.617 - 3.8 GHz |
| Impedance | 50 Ω |
| Certification | MIL-STD 810G/ASTM B117 |
| Certificates | |
| Certification | MIL-STD 810G/ASTM B117 |
| Compliance certificates | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 0 - 98% |
| Weight & dimensions | |
| Weight | 795 g |
| Height | 646 mm |
| Diameter | 7.1 cm |
| Package width | 95 mm |
| Package depth | 96 mm |
| Package height | 690 mm |
| Package weight | 1.58 kg |
| Packaging data | |
| Package width | 95 mm |
| Package depth | 96 mm |
| Package height | 690 mm |
| Package weight | 1.58 kg |
| Technical details | |
| Antenna gain level (max) | 3.5 dBi |
| Frequency band | 0.617 - 3.8 GHz |
| Antenna type | Omni-directional antenna |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Cable type | HDF-195 |
| Cable length | 2 m |
| Antenna connector type | SMA |
| Compliance certificates | CE, RoHS |
| Colour | |
| Product colour | White |
| Mobile network | |
| 4G standard | LTE |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
