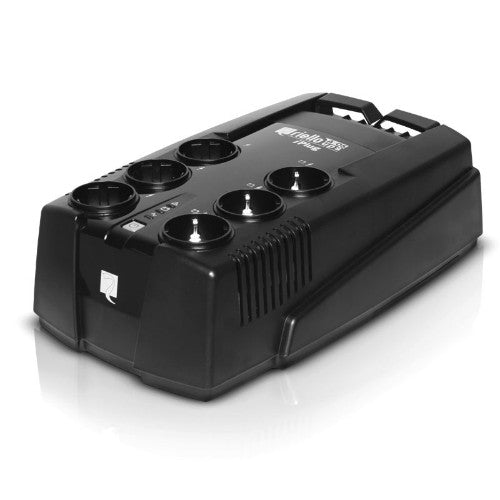

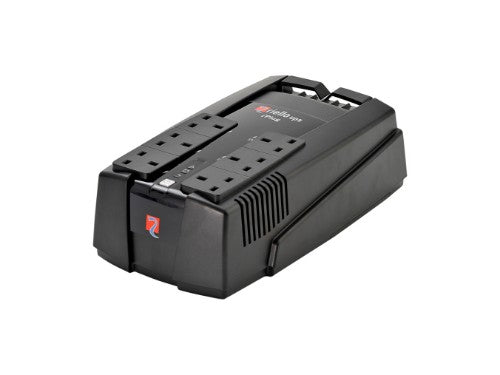

Riello IPG 600 uninterruptible power supply (UPS) 0.6 kVA 360 W 8 AC outlet(s)

600 VA, 360 W, 220-240 Vac, 50/60 Hz, USB, 6 + 3 I EC 320 C13, 3.7 Kg

Description

The iPlug series is the ideal solution for household, and small home office systems. Its compact size and versatility - push-button operation, LED status panel and user-replaceable batteries - make iPlug easy to install within a domestic environment to protect systems from surges and blackouts. When mains power fails the load is powered by the inverter and built-in battery. PowerShield UPS monitoring and control software can be used for an orderly unattended shutdown of IT systems.

FEATURES

- ECO LINE energy efficient product.
- Compact, ergonomic design.
- 5 sockets with battery backup.
- 3 sockets with surge protection only.
- Cold start capability to power up the UPS without mains power.
- User replaceable batteries.
- USB interface for remote monitoring.
- Power cable included.
- Protection from short-circuits.
- Auto restart - when the mains returns after battery exhaustion.
- GS/Nemko safety marking.
- Available with French (2P+E), English, Italian outlets.

ADVANCED COMMUNICATION

- PowerShield³ supervision and shut-down software for Windows 7, 2008, Vista, 2003, XP, Linux, Mac OS X and Sun Solaris operating systems.
- Plug and Play function.

Specifications

Power
Output frequency regulation	50 - 60 Hz
Output power	360 W
Input operation voltage (min)	172 V
Input operation voltage (max)	276 V
Output operation voltage (min)	172 V
Output operation voltage (max)	276 V
Output power capacity	0.6 kVA
Performance
Waveform	Sine
Number of output phases	1
Number of input phases	1
Number of phases	1
Features
Waveform	Sine
Output frequency regulation	50 - 60 Hz
Number of output phases	1
Number of input phases	1
Output power	360 W
Input operation voltage (min)	172 V
Input operation voltage (max)	276 V
Output operation voltage (min)	172 V
Output operation voltage (max)	276 V
Output power capacity	0.6 kVA
Input frequency	50/60 Hz
Number of phases	1
Ports & interfaces
Number of type F outputs	6
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
USB 2.0 ports quantity	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Cold start	Yes
Design
Form factor	Compact
Product colour	Black
Safety	EN 62040-1-1 2006/95/EC; EN 62040-3
Certification	EN 62040-2 2004/108 EC CE; GS/TUV
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 6000 m
Weight & dimensions
Package width	260 mm
Package depth	380 mm
Package height	140 mm
Weight	3.7 kg
Width	175 mm
Package weight	4 kg
Height	99 mm
Depth	313 mm
Packaging data
Package width	260 mm
Package depth	380 mm
Package height	140 mm
Package weight	4 kg
Certificates
Safety	EN 62040-1-1 2006/95/EC; EN 62040-3
Certification	EN 62040-2 2004/108 EC CE; GS/TUV
Other features
Number of phases	1
