Description

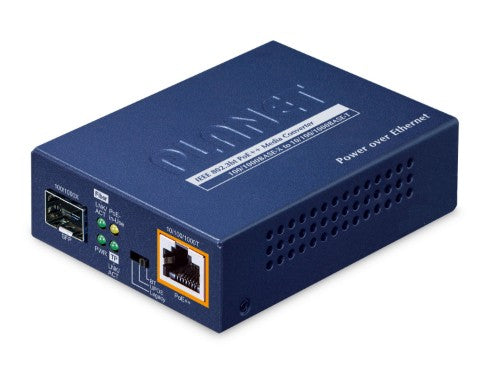

100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (60 Watts)
As PLANET GUP-805A-60W adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 60 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:
- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lightings
With a total power budget of up to 60 watts for different kinds of PoE applications, the GUP-805A-60W provides a quick, safe and higher 802.3bt PoE++ network solution for small businesses and enterprises.
High Performance and Steady Network Communications Guaranteed Despite Distance Extension
The GUP-805A-60W extends communication distance with high Gigabit performance via SFP slot and SFP transceiver. The GUP-805A-60W provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X interfaces for various fiber optic applications.
802.3bt PoE++ and DIP Switch for PoE Power Output Mode Options
To meet the demand of various powered devices consuming stable PoE power, the GUP-805A-60W provides one DIP switch for multi-PoE operation modes that include 60-watt 802.3bt type-4 PoE++ mode, UPOE and legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
- 802.3bt PoE++ Power Output Mode
- UPOE Power Output Mode
- Legacy Power Output Mode
BT: This mode fully supports IEEE 802.3af/at/bt standards.
UPOE: This mode fully supports Cisco UPoE standards or PoH standards.
Legacy: The legacy detection is to identify the valid current signature of the PDs that do not fully follow the IEEE 802.3af/at/bt standard. This protects against damage to the PDs as the right PoE mode is applied.
Learn more: https://www.planet.com.tw/en/product/gup-805a-60w
Key Features
- Physical Port
- ．Media conversion between 10/100/1000BASE-T and 100BASE-FX/1000BASE-SX/LX
- ．Copper RJ45 interface with Data + Power output
- ．Copper port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X
- ．Fiber media allows
- ．．Multi-mode fiber using LC connector
- ．．Single-mode fiber using LC connector
- Power over Ethernet
- ．Compatible with IEEE 802.3bt Power over Ethernet plus plus end-span + mid-span PSE
- ．Backward Compatible with IEEE 802.3at Power over Ethernet plus end-span/mid-span PSE
- ．Provides DC 52V~55V power over RJ45 Ethernet cable to devices with Ethernet port
- ．RJ45 PoE++ port with built-in 802.3bt type-4 PoE 60W injector function
- ．Auto detects powered device (PD)
- ．Circuit protection prevents power interference between ports
- ．Remote power feeding up to 100m
- ．IEEE 802.3bt/IEEE 802.3at splitter devices compatibility
- Layer 2 Features
- ．Store-and-Forward mechanism
- ．Non-blocking full wire-speed forwarding rate
- ．IEEE 802.1Q Tag VLAN transparent, multicast pass through
- ．9K jumbo frame
- ．IEEE 802.3x full-duplex and half-duplex back-pressure flow control to eliminate the loss of packets
- Mechanical
- ．Metal case
- ．LED indicators for easy network diagnostics
- ．DIP switch for PoE power feeding options (BT/UPOE/Legacy) selection
- ．DC 52V~55V power input socket
- ．Wall mounting or DIN-rail installation (optional)
- ．Compact in size, easy installation
Description
802.3bt PoE++ 60-watt Power over 4-pair UTP SolutionAs PLANET GUP-805A-60W adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 60 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:
- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lightings
With a total power budget of up to 60 watts for different kinds of PoE applications, the GUP-805A-60W provides a quick, safe and higher 802.3bt PoE++ network solution for small businesses and enterprises.
High Performance and Steady Network Communications Guaranteed Despite Distance Extension
The GUP-805A-60W extends communication distance with high Gigabit performance via SFP slot and SFP transceiver. The GUP-805A-60W provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X interfaces for various fiber optic applications.
802.3bt PoE++ and DIP Switch for PoE Power Output Mode Options
To meet the demand of various powered devices consuming stable PoE power, the GUP-805A-60W provides one DIP switch for multi-PoE operation modes that include 60-watt 802.3bt type-4 PoE++ mode, UPOE and legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
- 802.3bt PoE++ Power Output Mode
- UPOE Power Output Mode
- Legacy Power Output Mode
BT: This mode fully supports IEEE 802.3af/at/bt standards.
UPOE: This mode fully supports Cisco UPoE standards or PoH standards.
Legacy: The legacy detection is to identify the valid current signature of the PDs that do not fully follow the IEEE 802.3af/at/bt standard. This protects against damage to the PDs as the right PoE mode is applied.
Learn more: https://www.planet.com.tw/en/product/gup-805a-60w
Specifications
| Network | |
|---|---|
| Fiber optic connector | LC, SFP |
| Store-and-forward | Yes |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Technical details | |
| Housing material | Metal |
| Performance | |
| Store-and-forward | Yes |
| Auto-negotiation | Yes |
| Ports & interfaces | |
| Fiber optic connector | LC, SFP |
| Design | |
| DIN rail mounting | Yes |
| Housing material | Metal |
| Product colour | Blue |
| Certification | FCC Part 15 Class A, CE |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 60 W |
| External power adapter | Yes |
| Colour | |
| Product colour | Blue |
| Weight & dimensions | |
| Width | 94 mm |
| Depth | 70 mm |
| Weight | 144 g |
| Height | 26 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | FCC Part 15 Class A, CE |
