Description

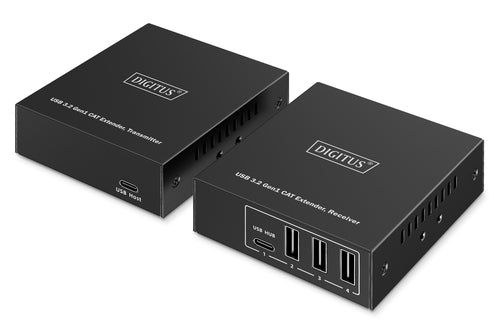

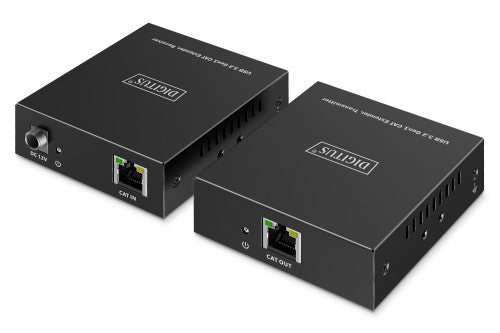

USB Extender, USB 3.2 Gen1, 100m 3x USB-A & 1x USB-C, For use with CAT cable
- USB extension up to 100m via CAT 6A (or higher)
- Transmitter unit is supplied with power via the host PC - No additional power supply unit required
- Multifunctional USB hub: Supports the connection of up to four USB devices simultaneously (3x USB-A 3.2 Gen1, 1x USB-C 3.2 Gen1)
- USB 3.2 Gen1: Supports transfer rates of up to 5 Gbps, ideal for numerous USB devices such as printers, cameras, hard disks, keyboards and more
- Safe protection: integrated ESD protection (up to 8kV) and overvoltage protection for your devices
- Plug & Play: No software required. Simply connect and use immediately
- Robust and versatile: ideal for demanding environments such as industry, large offices or security systems thanks to its metal housing
This USB extender provides a reliable solution to transmit USB signals over distances of up to 100 meters using a CAT 6A (or higher) network cable (not included) without signal loss. Ideal for use in large offices, conference rooms, surveillance systems or industrial environments where longer USB connections are required. The USB 3.2 Gen1 standard enables transfer rates of up to 5 Gbps. Nothing stands in the way of a fast and smooth connection of various USB devices such as cameras, hard disks, printers, scanners, keyboards, mice and USB sticks. Thanks to the support of USB 2.0 and 1.1, older devices can also be integrated without any problems. The extender offers maximum flexibility thanks to its four USB inputs (3x USB-A 3.2 Gen1 and 1x USB-C 3.2 Gen1), allowing multiple devices to be operated simultaneously - ideal for working environments with different peripherals. The Power-over-Cable (PoC) function ensures that only the receiver requires an external power source, simplifying installation and eliminating cable clutter. The Plug & Play design enables easy installation without the need for additional drivers. In addition, the robust metal housing ensures durability and stability, even in demanding industrial environments. Say goodbye to the limitations of traditional USB cables - with this Digitus USB 3.2 Gen1 Extender you can place your USB devices where you need them without compromising on performance.
Key Features
- Maximum range: 100m via Cat 6A (or higher)
- USB ports: 4x USB 3.1 Gen1 inputs (3x USB-A 3.2 Gen1, 1x USB-C 3.2 Gen1)
- Transfer rate: Up to 5 Gbps (USB 3.2 Gen1)
- USB 3.2 Gen1 receiver amplifier reduces signal loss
- Protection: ESD protection (electrostatic discharge), overvoltage and lightning protection, short-circuit protection
- With its own power supply, so no external power source is required
- Plug & Play: Simple installation, requires no software
- Ideal for connecting remote devices, e.g. cameras, printers, hard disks, scanners, keyboards, etc.

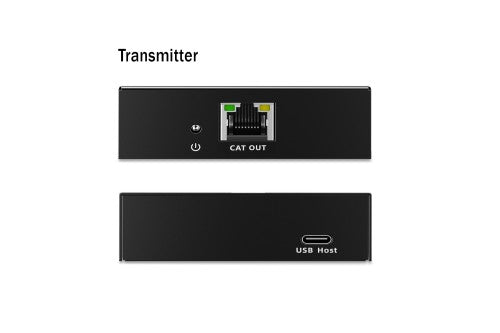

- Transmitter unit (TX) connections:
- 1x USB-C input (USB 3.2 Gen1) - connection signal source (notebook, etc.)
- 1x RJ45 output (Gigabit Ethernet) - CAT transmission cable connection
- 2x status LED

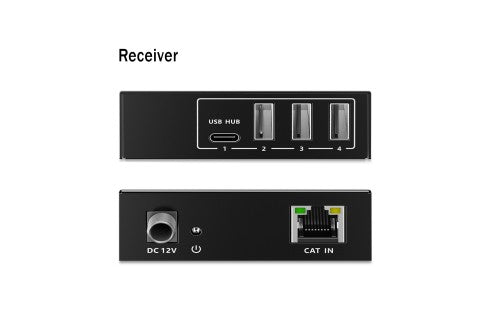

- Receiver unit connections (RX):
- 4x USB output (USB 3.2 Gen1) - 3x USB-A & 1x USB-C connection mouse, hard disk, keyboard, printer, cameras, etc.
- 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection
- 1x power supply connection (DC 12V/3A) - external power supply connection
- Power supply:
- TX: Via source device
- RX: DC 12V/3A
- Power consumption:
- TX: ≤ 8W
- RX: ≤ 8W
- Operating temperature: -20°C to 60°C
- Power consumption: TX approx. 3.5 W, RX approx. 2.5 W
- Dimensions (per unit): L 8.5 x W 7.6 x H 2.5 cm
- Weight: TX 168g, RX 178g
- Housing material: metal
- Color: Black
Description
Overcome the limitations of USB cable lengths and reliably connect up to four USB devices over distances of up to 100m with a CAT 6A (or higher) cable. The extender offers high data rates and is ideal for offices, industry and conferences.- USB extension up to 100m via CAT 6A (or higher)
- Transmitter unit is supplied with power via the host PC - No additional power supply unit required
- Multifunctional USB hub: Supports the connection of up to four USB devices simultaneously (3x USB-A 3.2 Gen1, 1x USB-C 3.2 Gen1)
- USB 3.2 Gen1: Supports transfer rates of up to 5 Gbps, ideal for numerous USB devices such as printers, cameras, hard disks, keyboards and more
- Safe protection: integrated ESD protection (up to 8kV) and overvoltage protection for your devices
- Plug & Play: No software required. Simply connect and use immediately
- Robust and versatile: ideal for demanding environments such as industry, large offices or security systems thanks to its metal housing
This USB extender provides a reliable solution to transmit USB signals over distances of up to 100 meters using a CAT 6A (or higher) network cable (not included) without signal loss. Ideal for use in large offices, conference rooms, surveillance systems or industrial environments where longer USB connections are required. The USB 3.2 Gen1 standard enables transfer rates of up to 5 Gbps. Nothing stands in the way of a fast and smooth connection of various USB devices such as cameras, hard disks, printers, scanners, keyboards, mice and USB sticks. Thanks to the support of USB 2.0 and 1.1, older devices can also be integrated without any problems. The extender offers maximum flexibility thanks to its four USB inputs (3x USB-A 3.2 Gen1 and 1x USB-C 3.2 Gen1), allowing multiple devices to be operated simultaneously - ideal for working environments with different peripherals. The Power-over-Cable (PoC) function ensures that only the receiver requires an external power source, simplifying installation and eliminating cable clutter. The Plug & Play design enables easy installation without the need for additional drivers. In addition, the robust metal housing ensures durability and stability, even in demanding industrial environments. Say goodbye to the limitations of traditional USB cables - with this Digitus USB 3.2 Gen1 Extender you can place your USB devices where you need them without compromising on performance.
Specifications
| Technical details | |
|---|---|
| Type | Console transmitter & receiver |
| LED indicators | Yes |
| Housing material | Aluminium, Metal |
| Data transfer rate | 5000 Mbit/s |
| Cable types supported | Cat6a |
| Maximum transfer distance | 100 m |
| Product colour | Black |
| I/O ports | 1x USB 3.0 C in 1x USB 3.0 C Out |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Plug and Play | Yes |
| Ports & interfaces | |
| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Weight & dimensions | |
| Package width | 149 mm |
| Package depth | 199 mm |
| Package height | 80 mm |
| Package weight | 900 g |
| Width | 76 mm |
| Depth | 85 mm |
| Height | 25 mm |
| Transmitter weight | 168 g |
| Receiver weight | 178 g |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Colour | |
| Product colour | Black |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Cables included | DC, USB Type-A to USB Type-C, USB Type-C |
| Power | |
| Power source type | DC |
| Power consumption (max) | 3.5 W |
| Power consumption (typical) | 2.5 W |
| Input voltage | 12 V |
| Output voltage | 12 V |
| Output current | 3 A |
| Input current | 3 A |
