Description

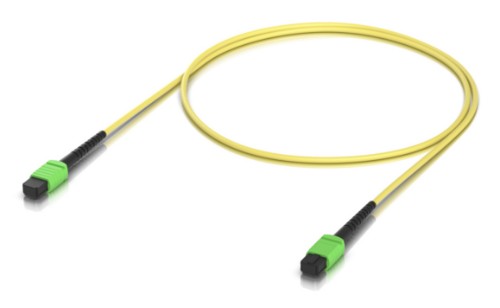

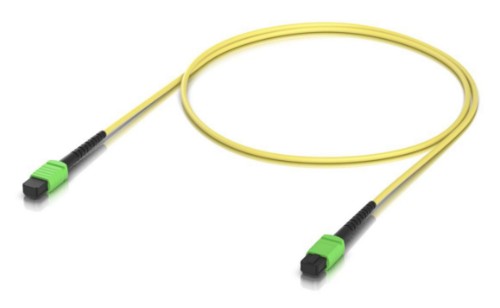

OS2, MPO/APC-MPO/APC, 12Fiber, Yellow, 1 m, 10-pack
Key Features
- OS2 single-mode fiber
- MPO-12 Type B APC connectors
- Cable length: 0.5 to 10 m
Description
Indoor OS2 single-mode fiber patch cable with MPO-12 Type B APC connectors designed for 100G applications.Specifications
| Features | |
|---|---|
| Fibre optic type | OS2 |
| Return loss | 20 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | MPO |
| Connector 2 | MPO |
| Cable type | OFC |
| Cable length | 1 m |
| Insertion loss | 0.6 dB |
| Data transfer rate | 100 Gbit/s |
| Wavelengths supported | 1310,1550 nm |
| Product colour | Yellow |
| Connector 2 gender | Female |
| Connector 1 gender | Female |
| Connector polish type | APC |
| Cable shape | Round |
| Operating temperature (T-T) | -40 - 75 °C |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Cable length | 1 m |
| Packaging content | |
| Quantity per pack | 10 pc(s) |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | MPO |
| Connector 2 | MPO |
| Cable type | OFC |
| Cable length | 1 m |
| Insertion loss | 0.6 dB |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Packaging data | |
| Quantity per pack | 10 pc(s) |
| Logistics data | |
| Quantity per pack | 10 pc(s) |
