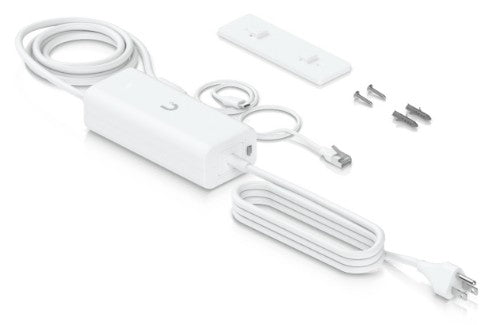

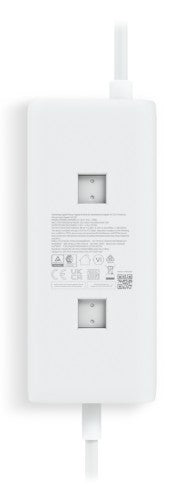

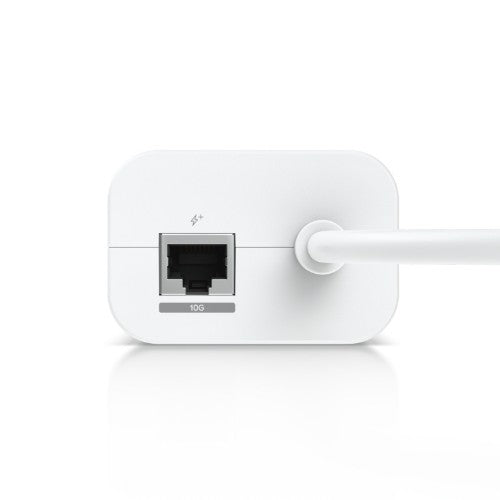

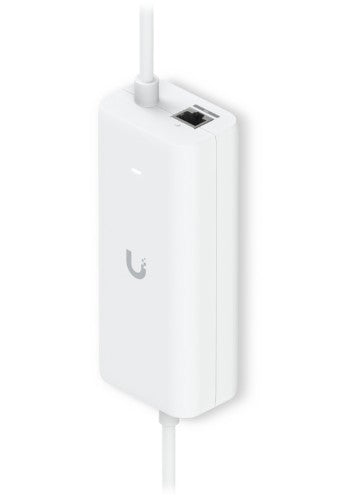

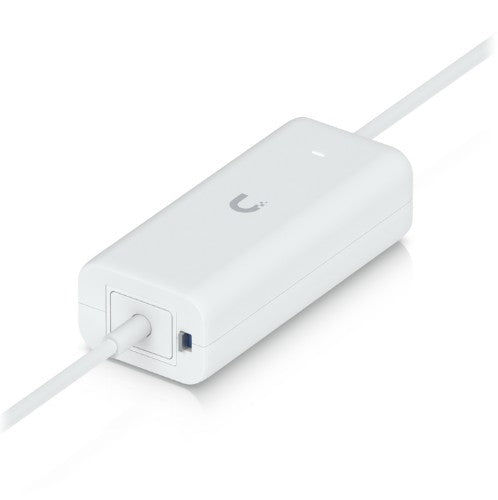

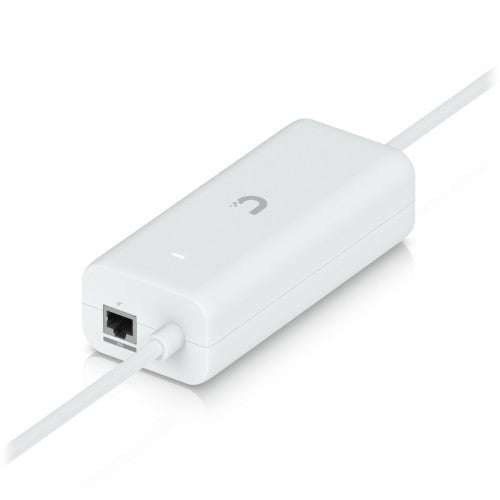

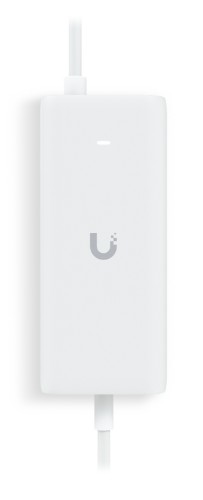

PoE Integrated AC Adapter, 10 GbE, Type-C: 5V@ 5A, PoE+: 48V@ 0.65A, 65 kHz, 146 x 62 x 42 mm
Key Features
- Delivers up to 30W of PoE+
- Supports wall mount, DIN rail and floating mount

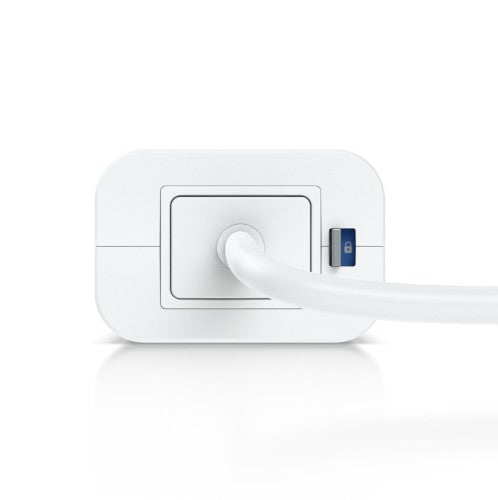

- Lockable latch designed for power cord security
Description
An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.
Specifications
| Network |
|---|
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
10,100,1000,10000 Mbit/s |
| Ethernet interface type |
10 Gigabit Ethernet |
| Power over Ethernet (PoE) voltage |
48 V |
| Features |
|---|
| Wall mountable |
Yes |
| Surge protection |
Yes |
| Product colour |
White |
| Power protection features |
Peak pulse, Surge protection |
| LED indicators |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| USB Type-C ports quantity |
1 |
| Power |
|---|
| Output current |
5 A |
| Total Power over Ethernet (PoE) budget |
30 W |
| Power over Ethernet (PoE) voltage |
48 V |
| Input current |
1.5 A |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| Certificates |
|---|
| Compliance certificates |
CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating temperature (T-T) |
32 - 104 °F |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Weight |
358 g |
| Width |
62 mm |
| Depth |
42 mm |
| Height |
146 mm |
| Packaging content |
|---|
| Power cord included |
Yes |
| Number of products included |
1 pc(s) |
| Technical details |
|---|
| Number of products included |
1 pc(s) |
| Power over Ethernet (PoE) |
Yes |
| Operating temperature (T-T) |
32 - 104 °F |
| Input current |
1.5 A |
| Ethernet LAN data rates |
10,100,1000,10000 Mbit/s |
| Ethernet interface type |
10 Gigabit Ethernet |
| Compliance certificates |
CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL |
| Indication |
|---|
| LED indicators |
Yes |
