Description

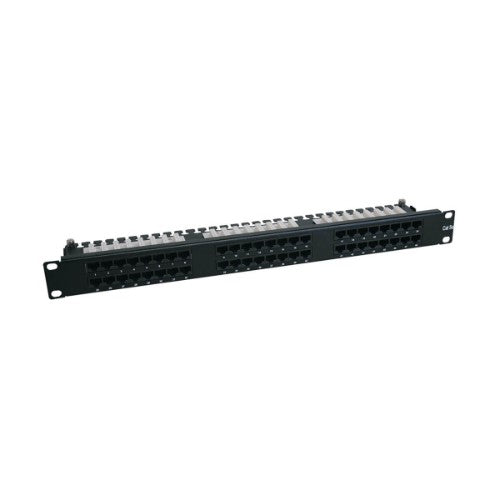

48-Port 1U Rack-Mount Cat6/Cat5 High Density 110 Patch Panel, 568B, RJ45 Ethernet, TAA
UTP Cat6 22-24 AWG solid cable
Key Features
- Space saving CAT6 Rated 48-port 1U 110 type Patch panel
- Removable "upper-deck" for easy punch down termination
- Built-in wire management loom
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Description

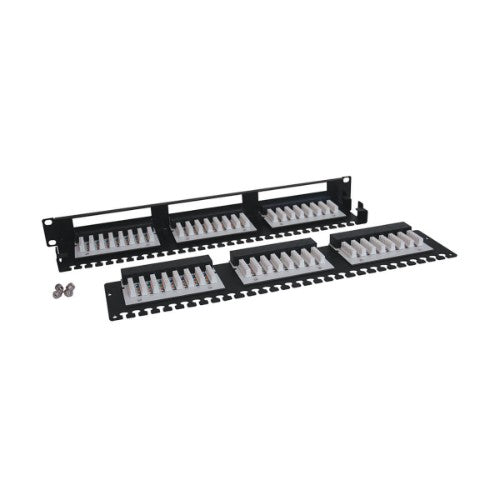

This 1U 48-port Cat6 high-density patch panel frees up valuable rack real estate by condensing a typical 2U 48-port patch panel into 1U of space. The unique design allows for easy punch-down termination. Simply unscrew four slotted thumbscrews to remove the "upper deck" punch-down array. Punch down the "lower-deck" cables first, then replace the upper deck, and punch down upper array. Integrated wire loom keeps cabling tidy and easy to route. Heavy-duty 14GA cold-rolled steel construction. 110 connectors are color-coded for either 568A or 568B wiring.UTP Cat6 22-24 AWG solid cable
Specifications
| Network | |
|---|---|
| Cable types supported | Cat6, Cat6a, Cat6e |
| Ports quantity | 48 |
| Connector(s) | RJ-45 |
| Design | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Product colour | Black |
| Certification | TAA, GSA |
| Certificates | |
| Certification | TAA, GSA |
| Weight & dimensions | |
| Width | 482.6 mm |
| Weight | 1.45 kg |
| Height | 43.7 mm |
| Depth | 84.1 mm |
| Package weight | 1.8 kg |
| Package width | 495.3 mm |
| Package height | 50.8 mm |
| Packaging data | |
| Package weight | 1.8 kg |
| Package depth | 94 mm |
| Package width | 495.3 mm |
| Package height | 50.8 mm |
| Features | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Product colour | Black |
| Certification | TAA, GSA |
| Technical details | |
| Mounting | Rack mounting |
| Package width | 495.3 mm |
| Package height | 50.8 mm |
| Harmonized System (HS) code | 85371098 |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Master (outer) case gross weight | 19 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 530.9 mm |
| Master (outer) case length | 304.8 mm |
| Master (outer) case height | 270 mm |
| Master (outer) case GTIN (EAN/UPC) | 10037332151732 |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85371098 |
