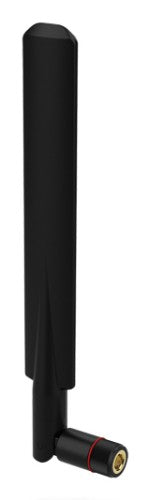

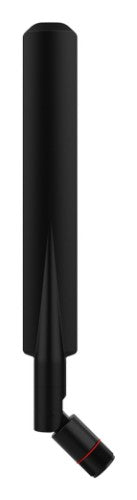

WIFI antenna 2.4/5/7.2GHz, 3dBi Omni-directional, RP-SMA, 163 x 22 x 7mm, ABS, Black
Description
The PWB-24-58-72 antenna is a ground plane independent antenna covering global WiFi 6e bands in the ranges 2400-2485 / 5150-7125MHz.
Specifications
| Performance |
|---|
| Antenna gain level (max) |
3 dBi |
| Frequency band |
2.4/5.8/7.2 GHz |
| Impedance |
50 Ω |
| Antenna gain (5 GHz) |
3 dBi |
| Antenna gain (2.4 GHz) |
2 dBi |
| Features |
|---|
| Antenna type |
Omni-directional antenna |
| Power handling |
5 W |
| Antenna connector type |
RP-SMA |
| Antenna gain level (max) |
3 dBi |
| Frequency band |
2.4/5.8/7.2 GHz |
| Impedance |
50 Ω |
| Antenna gain (5 GHz) |
3 dBi |
| Antenna gain (2.4 GHz) |
2 dBi |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 80 °C |
| Weight & dimensions |
|---|
| Width |
22 mm |
| Height |
163 mm |
| Diameter |
7 mm |
| Technical details |
|---|
| Antenna gain level (max) |
3 dBi |
| Frequency band |
2.4/5.8/7.2 GHz |
| Antenna type |
Omni-directional antenna |
| Power handling |
5 W |
| Impedance |
50 Ω |
| Antenna gain (5 GHz) |
3 dBi |
| Antenna gain (2.4 GHz) |
2 dBi |
| Antenna connector type |
RP-SMA |
