Vivolink VLVW1X4 video wall processor Black 11 W

Video Wall processor 4 screens

Key Features

• HDMI input up to 4Kx2K@60Hz 4:4:4
• Nine video wall modes (1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2, 2x2 Rotation)
• Built in automatic up & down-scaling to 1080p output
• Cascade function for 16 screen set-up

Description

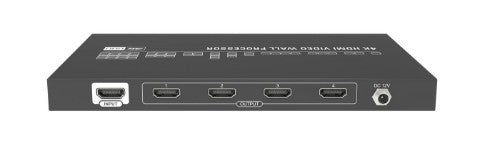

This video wall processor have 1 HDMI input and 4 HDMI outputs.
HDMI input supports resolutions up to 4Kx2K@60Hz 4:4:4 and output resolution is fixed to be 1920x1080p@60Hz.

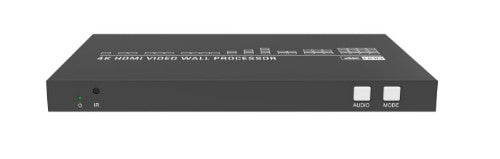

9 diffrent video wall modes, can be selected via front panel button and IR remote.
Excample:

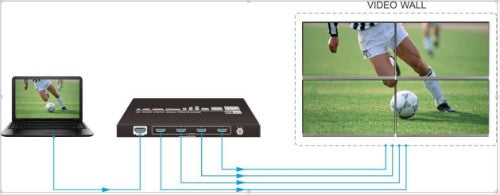

2x2 will devide picture into 4 pictures for four screens
1x2 will strech the picture horisontal out on two screens

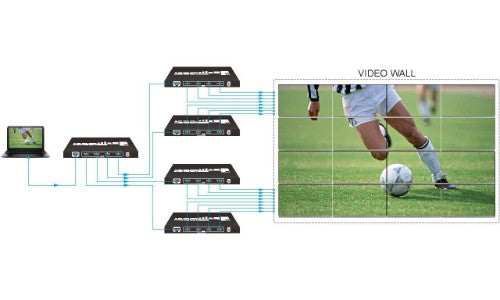

Video wall processor can be cascade coupled to support 16 screens

Specifications

Design
Product colour	Black
Built-in display	No
Control type	Buttons
Features
Supported video modes	1080p
Scaled resolutions	1920 x 1080
HDCP	Yes
HDCP version	2.0
Audio formats supported	PCM
Maximum refresh rate	60 Hz
Number of displays supported	4
Maximum resolution	3840 x 2160 pixels
Ports & interfaces
HDMI input ports quantity	1
HDMI output ports quantity	4
HDMI version	2.0b
Power
Power consumption (max)	11 W
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power supply location	External
Operational conditions
Operating temperature (T-T)	-5 - 55 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	210 mm
Depth	110 mm
Height	18 mm
Weight	450 g
Package weight	550 g
