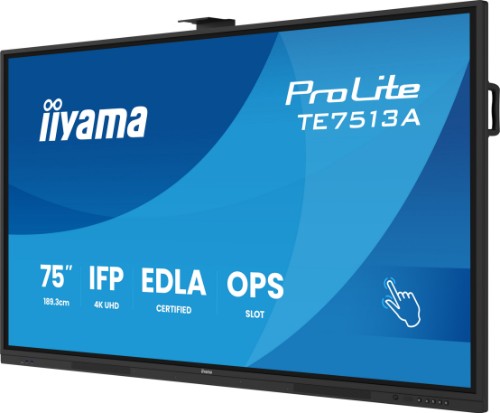

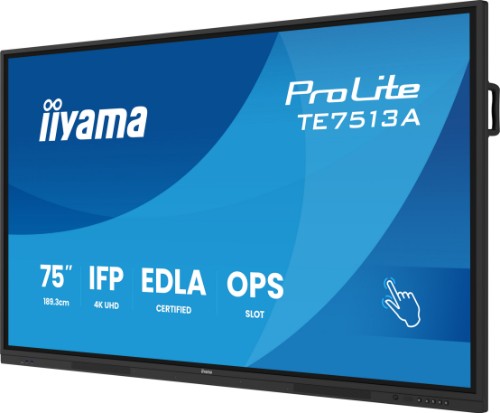

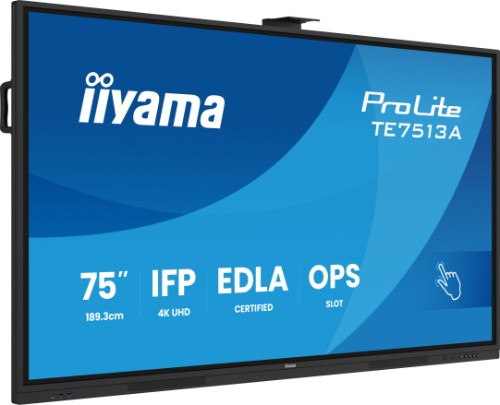

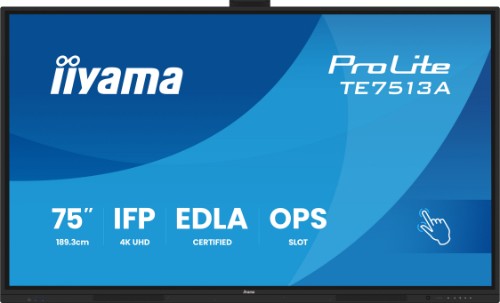

75" Google EDLA Certified IFP - Interactive display for seamless integration and collaboration in education and enterprise
Reasons To Buy
Google EDLA Certified
Google Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 365 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.
iiWare 21E (Android 14 OS)
Empower your presentations with iiWare 21E, featuring Google EDLA, iiControl (DMS), iiShare (Wireless Presentation), WhiteBoard, Cloud Drives, iiBrowser and file manager via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.
Quick Radial Menu
This feature provides a quick way to operate the interactive display. Long press with five fingers to bring up the Quick Radial Menu. Users can directly select the frequently used apps in the apps menu and place them in the Quick Radial Menu.
iiControl - Device Management System
iiControl provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiControl DMS is committed to maintaining compliance with GDPR.
PureTouch-IR+
The state-of-the-art PureToucht-IR+ technology ensures accurate and precise touch responses, enabling effortless interaction and annotation.
Pen PickUp Sensor
The Stylus Pen Pick-Up Sensor detects when the pen is lifted from its holder, ensuring instant responsiveness and seamless transitions between touch and stylus input. Ideal for interactive displays, it enhances workflow efficiency by automatically activating writing mode, reducing delays, and improving the overall user experience.
PIR Motion Sensor
The PIR motion sensor enhances energy efficiency by detecting movement and automatically adjusting display settings. It reduces power consumption when no activity is detected, extending device lifespan. Ideal for offices and classrooms, it ensures a smart, hands-free operation while optimizing performance and sustainability.
Standalone Solution & Connectivity
The OPS PC Slot offers a convenient standalone solution, allowing easy integration without the need for additional devices. The USB-C connection provides seamless connectivity, enabling quick data transfer, video output, and power through a single cable for enhanced versatility and ease of use.
Wall Mount
The included wall mount bracket ensures secure and stable installation of your display. Designed for easy setup, it supports VESA compatibility and offers a sleek, space-saving solution. Its durable construction guarantees reliability, making it ideal for classrooms, offices, and meeting rooms.
Speakers, Subwoofer and Webcam Bracket
The built-in front-facing speakers with an integrated subwoofer support conferencing configurations with ultra clear sound. The included webcam bracket ensures secure and stable installation of a webcam. Ideal for conferencing, presentations, and interactive applications.
Description
The TE7513A-B1AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5.0 connectivity, iControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.
Specifications
| Display |
|---|
| Panel type |
IPS |
| Display number of colours |
1.07 billion colours |
| Number of simultaneous touchpoints |
40 |
| Touchscreen |
Yes |
| Active display area (W x H) |
1650 x 928 mm |
| Display diagonal |
190.5 cm (75") |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.43 x 0.43 mm |
| Display diagonal (metric) |
189.3 cm |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
30 - 135 kHz |
| Anti-glare screen |
Yes |
| Touchscreen technology |
PureTouch-IR |
| Surface hardness |
7H |
| Glass thickness |
3.2 mm |
| Ports & interfaces |
|---|
| DisplayPort version |
1.2 |
| USB port |
Yes |
| HDMI version |
2.0 |
| RS-232C |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
1 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
2 |
| USB ports quantity |
5 |
| OPS module slot |
Yes |
| HDMI input ports quantity |
1 |
| HDMI output ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
60 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Interactive flat panel |
| Placement supported |
Indoor |
| Orientation |
Horizontal |
| Product colour |
Black |
| Panel mounting interface |
800 x 400 mm |
| VESA mounting |
Yes |
| Anti-glare screen |
Yes |
| Positioning accuracy |
1 mm |
| Bezel colour |
Black |
| Performance |
|---|
| Purpose |
Education |
| Operating hours (hours/days) |
18/7 |
| Mean time between failures (MTBF) |
50000 h |
| On Screen Display (OSD) languages |
Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
13 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (off) |
0.3 W |
| Power consumption (typical) |
217 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
217 kWh |
| Computer system |
|---|
| Computer system |
Yes |
| Processor cores |
4 |
| Processor frequency |
1.4 GHz |
| Operating system installed |
Android |
| Internal memory |
8 GB |
| Internal storage capacity |
128 GB |
| Built-in processor |
Yes |
| On-board graphics card model |
ARM Mali-G52 |
| Processor architecture |
ARM Cortex-A73 |
| Operating system version |
14 |
| Weight & dimensions |
|---|
| Display width |
1710 mm |
| Display depth |
87 mm |
| Display height |
1016 mm |
| Display weight |
51.8 kg |
| Packaging data |
|---|
| Package width |
1860 mm |
| Package depth |
1860 mm |
| Package height |
1125 mm |
| Package weight |
63 kg |
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Cables included |
HDMI, Power, USB |
| Stylus pen |
Yes |
| Number of stylus pens |
4 |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Cables included |
HDMI, Power, USB |
| Stylus pen |
Yes |
| Number of stylus pens |
4 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Technical details |
|---|
| VESA mounting |
Yes |
| Power supply type |
Internal |
| Panel type |
IPS |
| DisplayPort version |
1.2 |
| Number of simultaneous touchpoints |
40 |
| OPS slot |
1 |
| Thin Client |
|---|
| Processor frequency |
1.4 GHz |
| Operating system installed |
Android |
| Internal memory |
8 GB |
| Internal storage capacity |
128 GB |
| Other features |
|---|
| Power supply type |
Internal |
| Panel type |
IPS |
| DisplayPort version |
1.2 |
| Number of simultaneous touchpoints |
40 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Quick start guide |
Yes |
| Stylus pen |
Yes |
| Number of stylus pens |
4 |
| Energy efficiency scale |
A to G |
| OPS module slot |
Yes |
