Kensington UH1500P EQ USB-C 5Gbps Triple Video Driverless Mobile Dock

UH1500P EQ USB-C 5Gbps Triple Video Driverless Mobile Dock

Key Features

• Up to Triple 1080p for Windows.
• Free Kensington DockWorks™ software.**
• 2-year limited warranty.
• Supports Thunderbolt™ 4 & 5, USB4® and USB-C® Alt Mode devices.
• Windows 10 or later, macOS 11 or later, iPadOS 13 or later and Samsung DeX® compatible.
• The plastic in this product contains up to 60% post-consumer recycled (PCR) content.*
• Delivered in FSC® certified packaging.
• Plug-and-play USB-C® driverless solution.
• Up to 85W power pass-through.
• 9-in-1 design with 5 x USB ports.
• Sleek, compact design.

Reasons To Buy

Triple Video for Windows

Extend the visual productivity of your mobile workstation to support up to 3 x 1080p @ 60Hz, 2 x 4K @ 60Hz for Windows devices and 1 x 4K @ 60Hz for both Windows and MacBook devices.

Universal Compatibility

Supports USB-C® based devices (Thunderbolt™ 4 & 5, USB4® and USB-C® Alt Mode) running Windows 10 or later, macOS 11* or later, iPadOS 13* or later and Samsung DeX®. * iPadOS or macOS supports only a single 4K @ 60Hz in extended mode.

USB-C® Driverless Solution

No need to download, install or update software - an ideal USB-C® plug-and-play solution.

Sustainability Focused

The plastic in this product contains up to 60% post-consumer recycled (PCR) content** and is delivered in Forest Stewardship Council (FSC®) certified packaging. ** Does not include cable.

Up to 85W Power Pass-Through

Plug your laptop’s USB-C® power adapter (85W or greater) into the dock for pass-through power to the laptop, or power the dock and connected devices using the laptop’s battery when travelling.

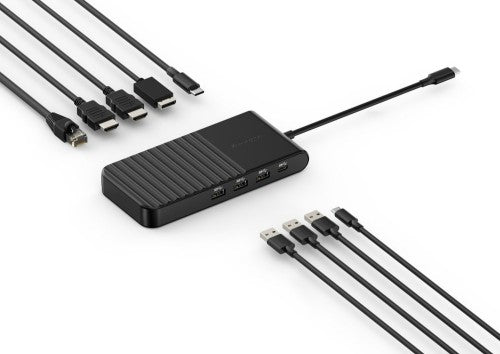

9-in-1 Design with 5 x USB Ports

Optimise peripheral connectivity with 3 x USB-A 3.2 Gen1 ports, 2 x USB-C® ports (one for power-pass through and one for device charging), 2 x HDMI®, 1 x DP and 1 x Gigabit Ethernet port.

Sleek, Compact Design

Easily fits into your travel backpack or carrying case for productivity on the go. Includes a 170mm (6.7”) USB-C® cable for connecting to your host device.

Free Kensington DockWorks™ Software and 2-Year Limited Warranty

Free DockWorks™ software*** delivers the best connection, performance, and security from your Kensington dock. Enjoy peace of mind knowing you are covered by Kensington with a professional warranty. *** Available for Windows only.

Description

The UH1500P EQ USB-C® 5Gbps Triple Video Driverless Mobile Dock supports up to three external displays and allows you to travel with less weight and clutter. Universally compatible with USB-C® based devices (Thunderbolt™ 4, USB4® and USB-C® Alt Mode), this plug-and-play solution supports up to 3 x 1080p @ 60Hz, 2 x 4K @ 60Hz for Windows devices and 1 x 4K @ 60Hz for both Windows and MacBook devices. The 9-in-1 design delivers three video connections (2 x HDMI® and 1 x DP), 5 x USB ports (3 x USB-A and 2 x USB-C®) and one Gigabit Ethernet port. UH1500P supports up to 85W power pass-through using your laptop’s USB-C® power adapter or battery for charging. The plastic in this product contains up to 60% post-consumer recycled (PCR) content* and it is delivered in Forest Stewardship Council (FSC®) certified packaging. Compatible with Kensington DockWorks™ software** and includes a 2-year limited warranty.
*Does not include cable.
**Available for Windows only.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	85 W
DisplayPort version	1.4
HDCP version	2.3
HDCP	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Country of origin	China
Product colour	Black
Card reader integrated	No
Plug and Play	Yes
HD type	4K Ultra HD
Technical details
Product colour	Black
Plug and Play	Yes
Compliance certificates	CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI
Products per master (outer) case	10 pc(s)
Storage
Card reader integrated	No
Power
Power source type	USB
USB cable length	0.17 m
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Mobile operating systems supported	iPadOS 13, iPadOS 14, iPadOS 17.1.1, iPadOS 17.4, iPadOS 17.5
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	154 g
Width	150 mm
Depth	71 mm
Height	21 mm
Package weight	180 g
Package width	180 mm
Package depth	130 mm
Package height	35 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Country of origin	China
Product colour	Black
Packaging data
Quantity per pack	1 pc(s)
Package weight	180 g
Package width	180 mm
Package depth	130 mm
Package height	35 mm
Packaging content
Quick start guide	Yes
Warranty card	Yes
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	10 pc(s)
