Description

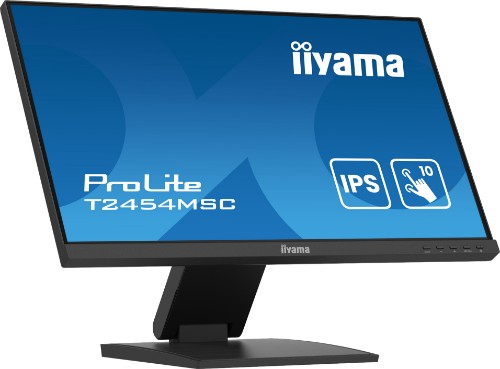

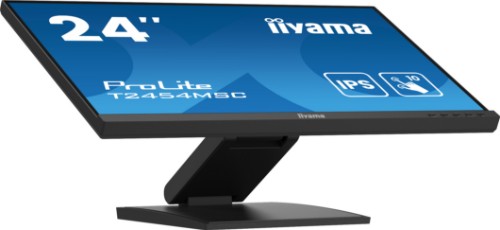

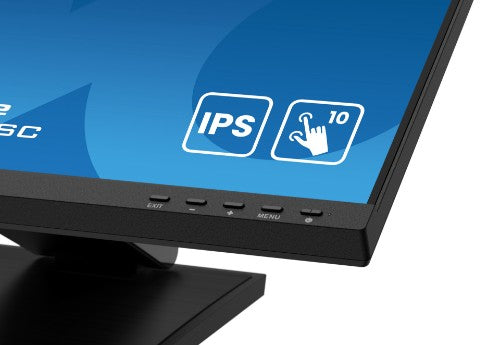

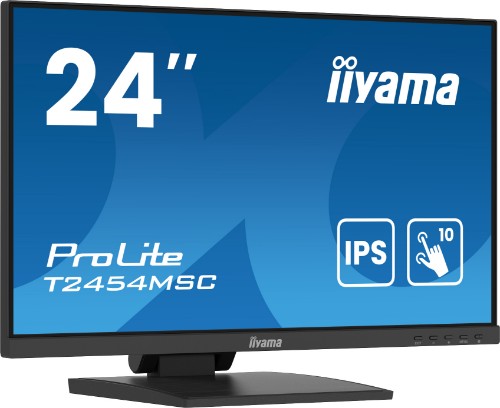

24” P-CAP 10pt touchscreen featuring IPS panel technology and Anti-Glare coating
Reasons To Buy
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.AG Coating
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.Speakers
This LED monitor is equipped with two high quality stereo speakers.VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.Description
With its Full HD (1920x1080) resolution and accurate In-cell Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B2AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B2AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 300 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 75 Hz |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 5000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.274 x 0.274 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 75 Hz |
| Aspect ratio | 16:9 |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Display resolution | 1920 x 1080 pixels |
| Response time | 4 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Colour depth | 8 bit |
| Display diagonal (metric) | 60.5 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| LED backlight | Yes |
| Display brightness | 250 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Megapixel (approx.) | 2.1 MP |
| Mean time between failures (MTBF) | 50000 h |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Low Blue Light technology | Yes |
| OmniTapps Multitouch compatibility | No |
| Management features | |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| Plug and Play | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Megapixel (approx.) | 2.1 MP |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Certification | CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IPX1 |
| Mean time between failures (MTBF) | 50000 h |
| Camera | |
| Megapixel (approx.) | 2.1 MP |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 322.5 mm |
| Depth (without stand) | 46.5 mm |
| Width (without stand) | 540.5 mm |
| Cable lock slot | Yes |
| Placement supported | Horizontal/Vertical |
| Mean time between failures (MTBF) | 50000 h |
| HDMI | Yes |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Built-in microphone | No |
| Product colour | Black |
| Front bezel colour | Black |
| Compliance certificates | RoHS |
| Power supply type | Internal |
| Weight (with stand) | 5.6 kg |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -5 - 90° |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| Plug and Play | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Adjustable height (max) | 11 cm |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 17 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 20 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 366281 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Height (without stand) | 322.5 mm |
| Depth (without stand) | 46.5 mm |
| Width (without stand) | 540.5 mm |
| Width (with stand) | 540 mm |
| Depth (with stand) | 238.5 mm |
| Height (with stand) | 371 mm |
| Weight (with stand) | 5.6 kg |
| Package width | 615 mm |
| Package depth | 615 mm |
| Package height | 410 mm |
| Package weight | 8.3 kg |
| Packaging data | |
| Package width | 615 mm |
| Package depth | 615 mm |
| Package height | 410 mm |
| Package weight | 8.3 kg |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB, VGA |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB, VGA |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 366281 |
| Other features | |
| Dimensions (W x D x H) with stand | 540.5 x 128 x 388 mm |
| Placement supported | Horizontal/Vertical |
| Mean time between failures (MTBF) | 50000 h |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Certification | CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB |
| International Protection (IP) code | IPX1 |
| Full HD | Yes |
| Compliance certificates | RoHS |
| Height (without stand) | 322.5 mm |
| Depth (without stand) | 46.5 mm |
| Width (without stand) | 540.5 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Certificates | |
| Certification | CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
