98" 4K UHD Most powerful professional digital signage display with advanced control and connectivity options
Reasons To Buy
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
Description

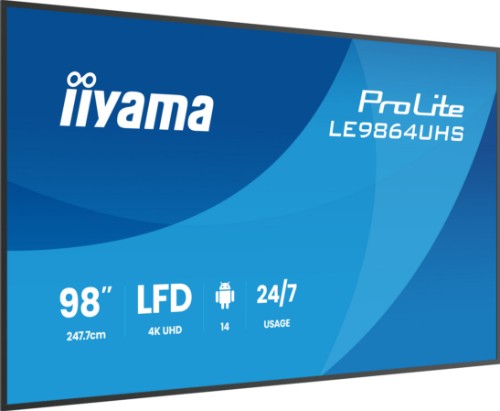

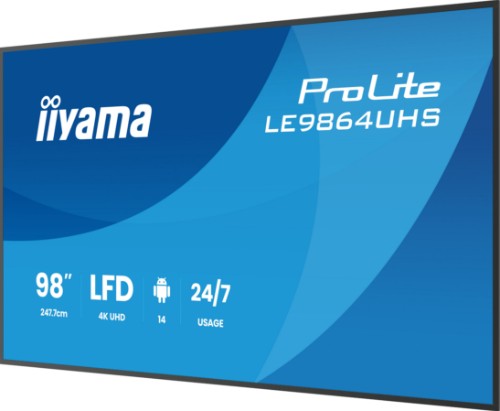

The ProLite LE9864UHS-B1AG is a 98" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage² (CMS), iiControl (DMS) and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness.
Specifications
| Display |
|---|
| Panel type |
VA |
| Display number of colours |
1.07 billion colours |
| Active display area (W x H) |
2158.8 x 1214.4 mm |
| Display diagonal |
2.49 m (98") |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
6.5 ms |
| Contrast ratio (typical) |
5000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.487 x 0.487 mm |
| Display diagonal (metric) |
247.7 cm |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
57 - 62 kHz |
| Anti-glare screen |
Yes |
| Number of displays |
1 |
| Native refresh rate |
60 Hz |
| Haze rate |
25% |
| Ports & interfaces |
|---|
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| USB port |
Yes |
| HDMI version |
2.0 |
| RS-232C |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB version |
2.0 |
| USB ports quantity |
2 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
15 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Placement supported |
Indoor |
| Orientation |
Horizontal |
| Bezel width (top) |
2 cm |
| Bezel width (side) |
2 cm |
| Bezel width (bottom) |
2 cm |
| Product colour |
Black |
| Panel mounting interface |
700 x 500 mm |
| VESA mounting |
Yes |
| Anti-glare screen |
Yes |
| Mounting type |
Wall |
| Bezel colour |
Black |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| Mean time between failures (MTBF) |
50000 h |
| On Screen Display (OSD) languages |
Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Slovenian |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
15 |
| HDCP |
Yes |
| HDCP version |
1.4/2.0 |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (off) |
0.3 W |
| Power consumption (typical) |
388 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
388 kWh |
| Computer system |
|---|
| Computer system |
Yes |
| Operating system installed |
Android |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Built-in processor |
Yes |
| On-board graphics card model |
ARM Mali-G52 |
| Processor architecture |
ARM Cortex-A73 |
| Operating system version |
14 |
| Weight & dimensions |
|---|
| Display width |
2202 mm |
| Display depth |
110.5 mm |
| Display height |
1257.7 mm |
| Display weight |
61 kg |
| Packaging data |
|---|
| Package width |
2390 mm |
| Package depth |
2390 mm |
| Package height |
1500 mm |
| Package weight |
77.9 kg |
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Cables included |
HDMI, Power, RS-232 |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Cables included |
HDMI, Power, RS-232 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Technical details |
|---|
| VESA mounting |
Yes |
| Power supply type |
Internal |
| Panel type |
VA |
| Thin Client |
|---|
| Operating system installed |
Android |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Other features |
|---|
| Power supply type |
Internal |
| Panel type |
VA |
| Wi-Fi |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Bezel width (top) |
2 cm |
| Bezel width (side) |
2 cm |
| Bezel width (bottom) |
2 cm |
| Quick start guide |
Yes |
| Energy efficiency scale |
A to G |
