Description
120mm ARGB PWM Fan

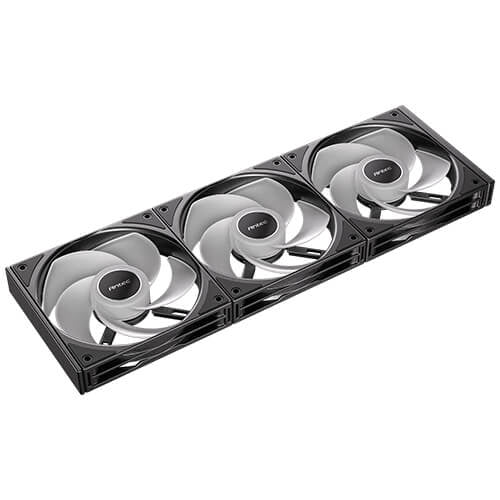

Connect the fans internally with each other to streamline the installation process.
3 Fans 4 Screws
Interlocking sytem helps you mount multiple fans using less screws.
Easier Installation With Less Cables
Daisy Chain design with less cables needed.
PWM ARGB Fan
Strong and stable airflow in quiet operation.
ENLARGED VIBRATION-ABSORBING & ANTI-NOISE PADS
8 anti-vibration pads effectively reduce vibration and noise.

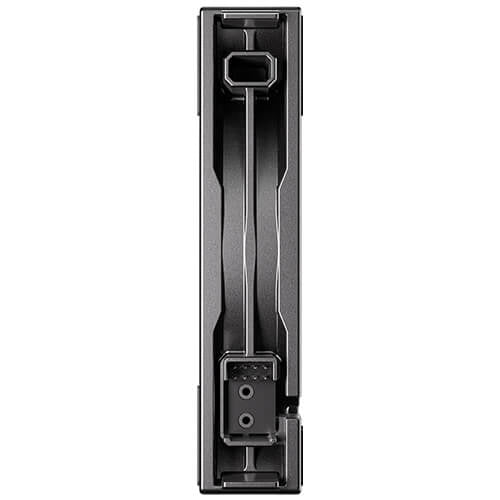

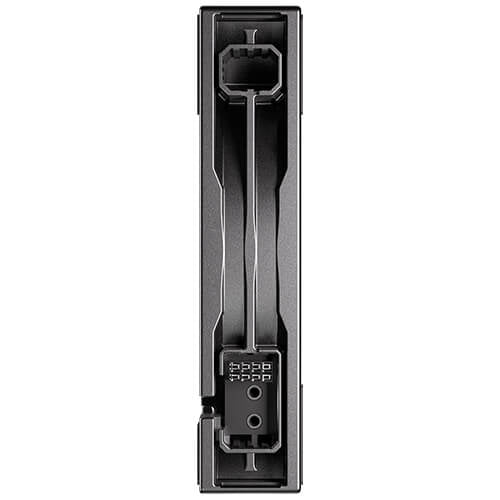

Fan installation
Pay attention to the cable outlet when installing fan covers; the outlet should be positioned over the male connector.

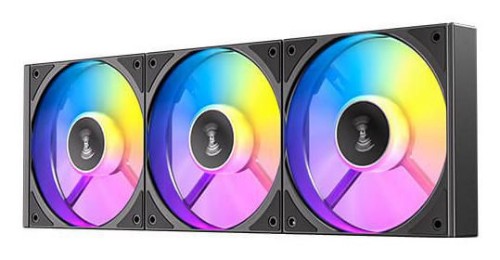

ARGB LIGHTING EFFECT SYNC
Extendable 3-Pin Daisy-Chain ARGB connector provides a much easier way to integrate lighting effect with motherboard and other components.

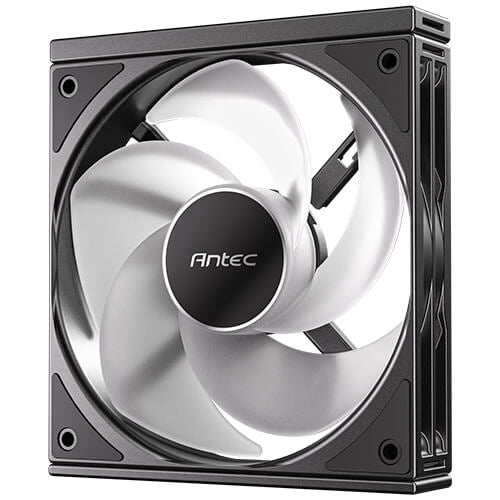

Reverse fan
Reverse fan blade design provides smoother air intake in a cleaner look.
Description
Intuitive interlocking systemConnect the fans internally with each other to streamline the installation process.
3 Fans 4 Screws
Interlocking sytem helps you mount multiple fans using less screws.
Easier Installation With Less Cables
Daisy Chain design with less cables needed.
PWM ARGB Fan
Strong and stable airflow in quiet operation.
ENLARGED VIBRATION-ABSORBING & ANTI-NOISE PADS
8 anti-vibration pads effectively reduce vibration and noise.
Fan installation
Pay attention to the cable outlet when installing fan covers; the outlet should be positioned over the male connector.
ARGB LIGHTING EFFECT SYNC
Extendable 3-Pin Daisy-Chain ARGB connector provides a much easier way to integrate lighting effect with motherboard and other components.
Reverse fan
Reverse fan blade design provides smoother air intake in a cleaner look.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 1800 RPM |
| Bearing type | Hydraulic |
| Type | Fan |
| Fan diameter | 12 cm |
| Minimum air pressure | 1.29 mmH2O |
| Airflow | 43.2 m³/h |
| Quantity per pack | 3 pc(s) |
| Fan's mean time to failure (MTTF) | 30000 h |
| Design | |
| Fan connector | 4-pin |
| Illumination colour | Blue, Green, Red |
| Product colour | Black |
| Illumination LED | Yes |
| Technical details | |
| Type | Fan |
| Fan diameter | 12 cm |
| Minimum air pressure | 1.29 mmH2O |
| Airflow | 43.2 m³/h |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| LED voltage | 5 V |
| Fan voltage | 12 V |
| Fan current | 0.12 A |
| Colour | |
| Product colour | Black |
| Indication | |
| Illumination colour | Blue, Green, Red |
| Other features | |
| LED voltage | 5 V |
