Description
WiFi 7, 6 GHz/ 5 GHz/ 2.4 GHz, 11.5 Gbps, 10 GbE, 1 GbE, 30 dBm, 42.5—57V DC, 250 x 250 x 45.5 mm, White
Description

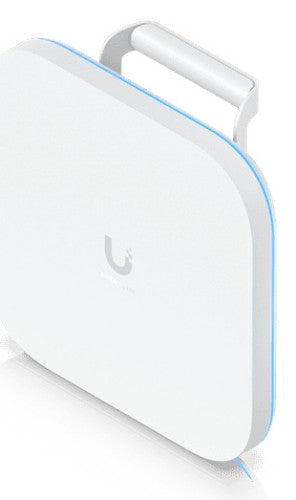

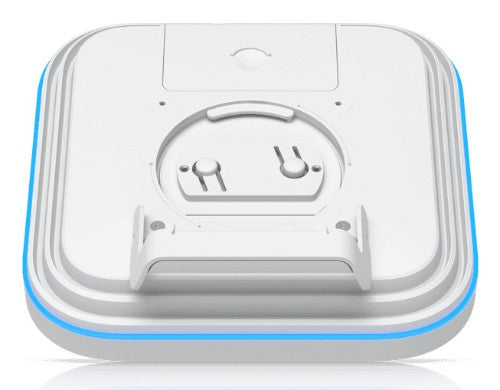

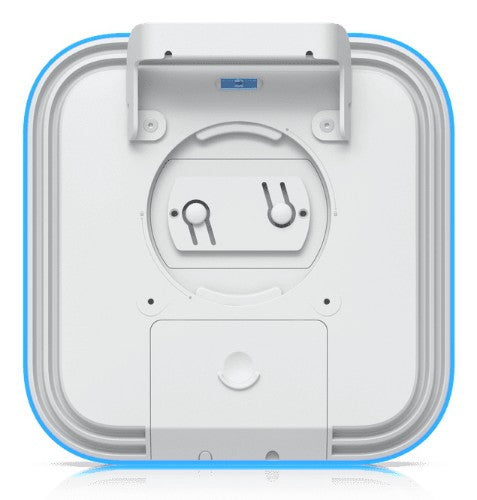

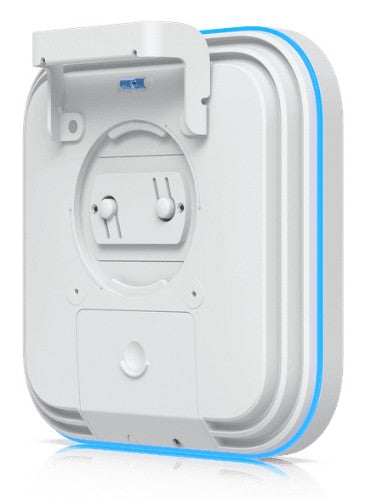

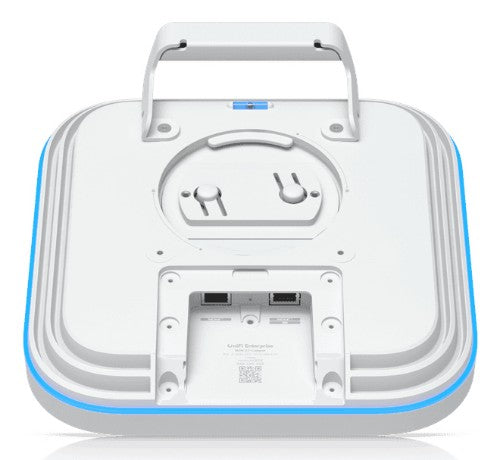

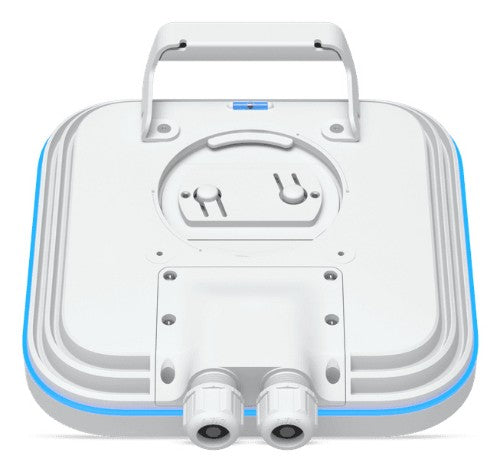

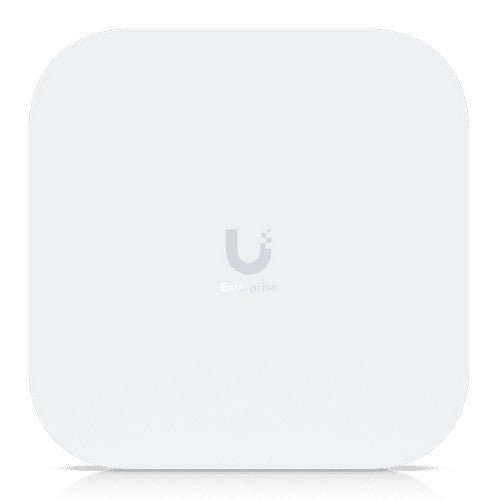

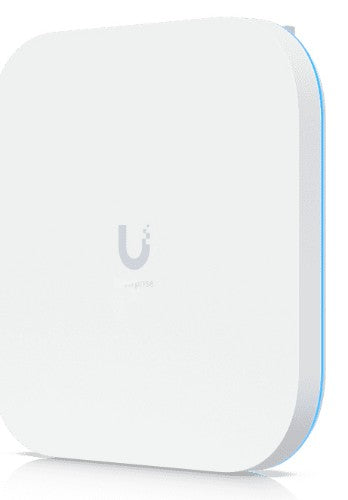

Ubiquiti Access-Point UniFi E7-Campus 802.11be WiFi 7 (ohne PoE-Adapter) Ohne/without PoE AdapterSpecifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Maximum data transfer rate | 11500 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11be |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Certification | FCC, IC US/CA |
| Maximum data transfer rate | 11500 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Mobile operating systems supported | Android, iOS |
| Network | |
| Networking standards | IEEE 802.11be |
| Management features | |
| Rate limiting | Yes |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11be |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Maximum data transfer rate | 11500 Mbit/s |
| Fast roaming | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 8600 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11500 Mbit/s |
| Spatial streams | 10 |
| Coverage area | 465 m² |
| Wireless meshing | Yes |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 30 dBmW |
| Maximum Tx power (6 GHz) | 30 dBmW |
| Security | |
| Security algorithms | PPSK, TLS |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (max) | 44 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| DC voltage range | 42.5 - 57 V |
| Design | |
| International Protection (IP) code | IPX6, IP67 |
| Housing material | Polycarbonate (PC) |
| Placement | Ceiling, Pole, Wall |
| Product colour | White |
| LED indicators | Yes |
| Certification | FCC, IC US/CA |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 1 |
| Antenna gain level (max) | 12 dBi |
| Antenna direction type | Directional |
| Technical details | |
| Compliance certificates | National Defense Authorization Act (NDAA) |
| Certificates | |
| Certification | FCC, IC US/CA |
| Compliance certificates | National Defense Authorization Act (NDAA) |
| Indication | |
| LED indicators | Yes |
| Software | |
| Fast roaming | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Weight & dimensions | |
| Width | 250 mm |
| Depth | 45.5 mm |
| Weight | 2.2 kg |
| Height | 250 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
