Description
E7 Audience, WiFi 7, 12-stream, 10 GbE uplink, 465 m² (5,000 ft²), PoE++ 51W
Description
Enterprise-grade indoor access point designed for high-density environments with 12-stream 5 GHz and 6 GHz WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Maximum data transfer rate | 11500 Mbit/s |
| Performance | |
| 2.4 GHz | No |
| 5 GHz | Yes |
| Reset button | Yes |
| Number of users | 1500 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Maximum data transfer rate | 11500 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Network | |
| Number of users | 1500 user(s) |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Access point management | Wi-Fi schedule |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | No |
| 5 GHz | Yes |
| Number of users | 1500 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Maximum data transfer rate | 11500 Mbit/s |
| Fast roaming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (5 GHz) | 8600 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Maximum data transfer rate (6 GHz) | 11500 Mbit/s |
| Spatial streams | 12 |
| Coverage area | 465 m² |
| Wireless meshing | Yes |
| Maximum Tx power (5 GHz) | 30 dBmW |
| Maximum Tx power (6 GHz) | 30 dBmW |
| Security | |
| Security algorithms | PPSK |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (typical) | 51 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| DC voltage range | 42.5 - 57 V |
| Design | |
| Housing material | Aluminium, Polycarbonate (PC) |
| Placement | Pole, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 15 dBi |
| Antenna direction type | Directional |
| Technical details | |
| Reset button | Yes |
| Compliance certificates | CE, National Defense Authorization Act (NDAA) |
| Certificates | |
| Compliance certificates | CE, National Defense Authorization Act (NDAA) |
| Indication | |
| LED indicators | Yes |
| Software | |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 474.1 mm |
| Depth | 42.2 mm |
| Weight | 3.2 kg |
| Height | 239.4 mm |
| Packaging data | |

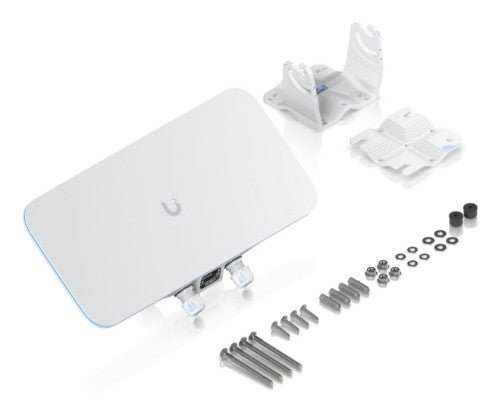

| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
