Description
Tilt and Swivel 3 Axis Mounting Bracket
The 3 Axis Tilt and Swivel mechanism enables precise alignment, while the notches engraved on the metal allows the bracket to hold firm when you reach the best signal.
The SIL MNT 3 has an additional 4 holes so it can be mounted to a 45 degree slanted pole or mount a radio on a 45 degree angle to improve RF noise isolation.
Key Features
- Sea Salt Certified
- Magnesium Alloy Bracketry
- Notched Engravings allow for firm mounting and precise alignment
- 3 Axis Tilt and Swivel
- Versatile Mounting
- Fits ALL PRO Range Equipment
Description

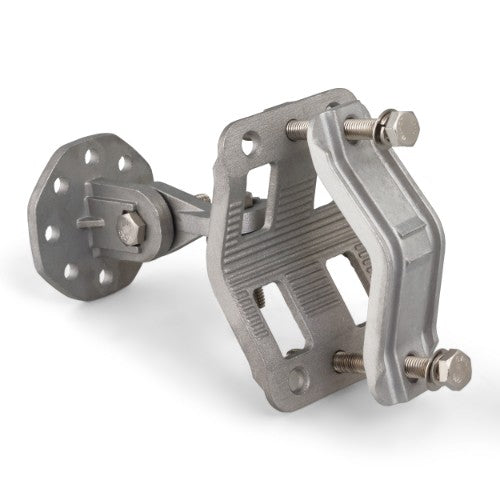

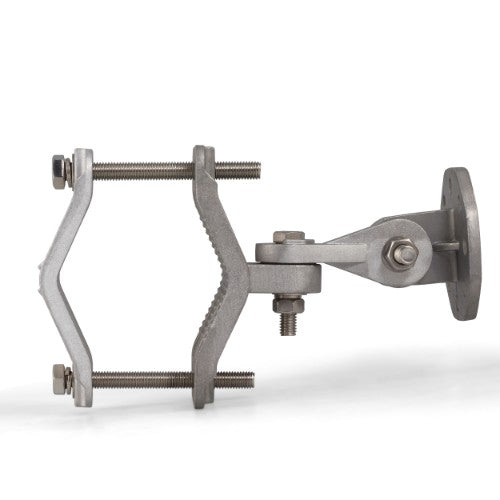

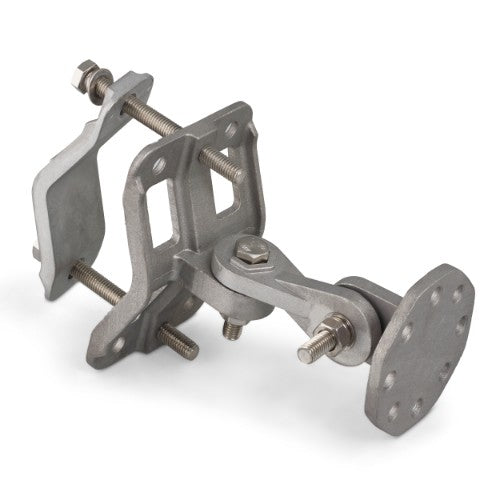

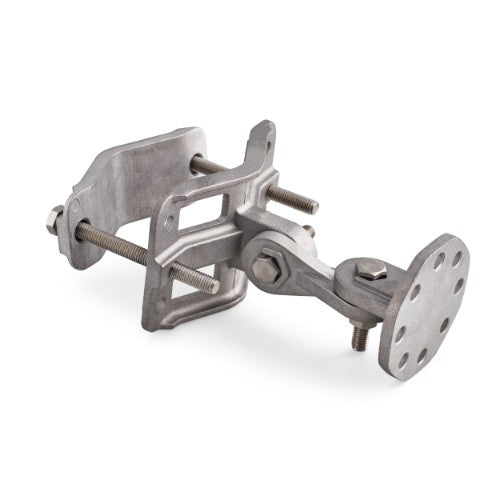

The SilverNet PRO Range Mounting Bracket (SIL MNT 3) is a 3 Axis, Tilt and Swivel Mounting Kit for all PRO Range radios. It can be fitted to either a wall, a 3” (75mm) pole or paired with banding strap to fit to larger columns.The 3 Axis Tilt and Swivel mechanism enables precise alignment, while the notches engraved on the metal allows the bracket to hold firm when you reach the best signal.
The SIL MNT 3 has an additional 4 holes so it can be mounted to a 45 degree slanted pole or mount a radio on a 45 degree angle to improve RF noise isolation.
Specifications
| Technical details | |
|---|---|
| Material | Magnesium |
| Product colour | Grey |
| Compatibility | SilverNet Pro Range |
| Quantity per pack | 1 pc(s) |
| Ergonomics | |
| Tilt angle range | 0 - 180° |
| Swivel angle | 180° |
| Maximum pipe/tube diameter | 7.5 cm |
| Weight & dimensions | |
| Weight | 445 g |
| Width | 110 mm |
| Height | 75 mm |
| Packaging data | |
| Screws included | Yes |
| Package width | 125 mm |
| Package height | 95 mm |
| Package depth | 115 mm |
| Package weight | 525 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 76169990 |
