Description

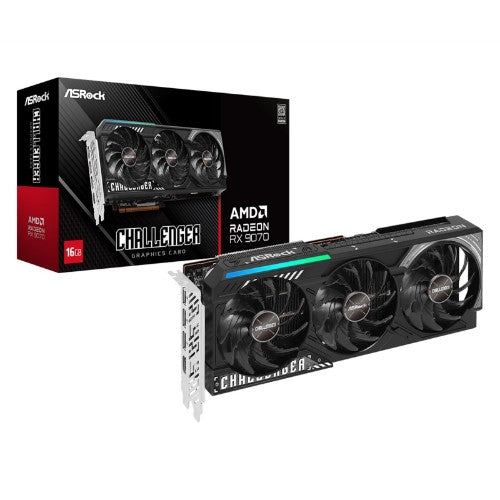

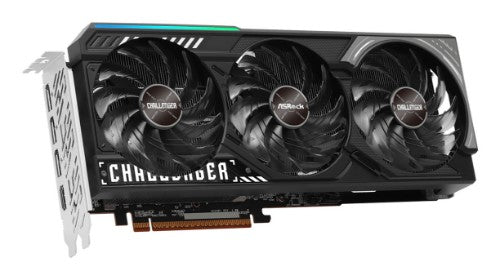

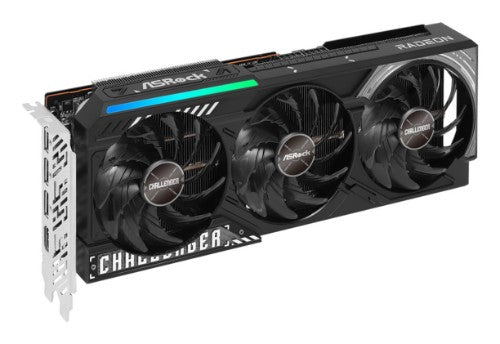

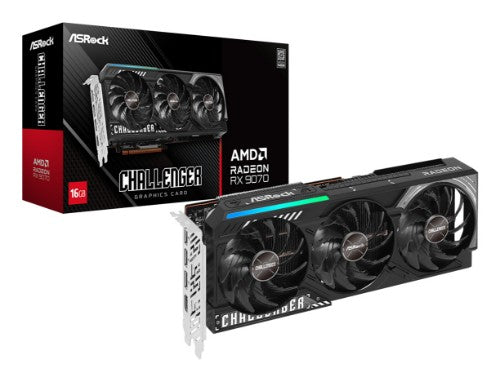

AMD Radeon RX 9070, 16GB GDDR6, 256 bit, PCI Express 5.0, 1 x HDMI (2.1b), 3 x DP (2.1a), DirectX 12 Ultimate, OpenGL 4.6

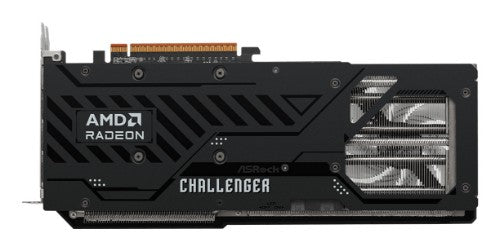

With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
LED Indicator
More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.
LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

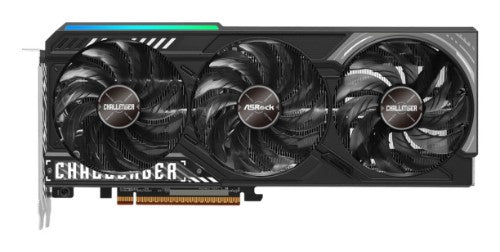

Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.

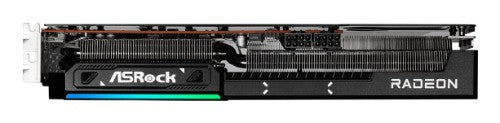

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Description
Stylish Metal BackplateWith the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
LED Indicator
More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.
LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Specifications
| Processor | |
|---|---|
| Graphics processor family | AMD |
| Processor boost clock speed | 2520 MHz |
| Stream processors | 3584 |
| Maximum displays per videocard | 4 |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 9070 |
| Processor boost clock speed (Gaming mode) | 2070 MHz |
| Compute units | 56 |
| Memory | |
| Discrete graphics card memory | 16 GB |
| Data transfer rate | 20 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Ports & interfaces | |
| HDMI version | 2.1b |
| HDMI ports quantity | 1 |
| DisplayPort version | 2.1a |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Interface type | PCI Express 5.0 |
| Video | |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDMI version | 2.1b |
| HDCP | Yes |
| Dual Link DVI | No |
| Performance | |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| TV tuner integrated | No |
| Design | |
| Number of fans | 3 fan(s) |
| Illumination colour | Blue, Green, Red |
| Illumination | Yes |
| Cooling type | Active |
| Product colour | Black |
| Power | |
| Supplementary power connectors | 2x 8-pin |
| Minimum system power supply | 700 W |
| Technical details | |
| Cooling type | Active |
| Product colour | Black |
| TV tuner integrated | No |
| System requirements | |
| Minimum system power supply | 700 W |
| Weight & dimensions | |
| Weight | 918 g |
| Height | 123 mm |
| Depth | 51 mm |
| Length | 290 mm |
| Packaging data | |
| Package type | Box |
