Description

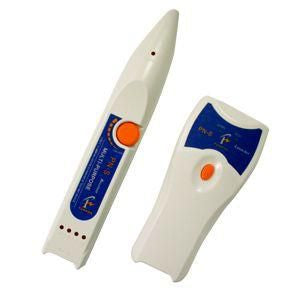

Cable Tracker - Scan & Wire Tracker, RJ-45, 8Vp-p
Key Features
- Cable Tester for UTP STP RJ45(manual switch)
- Automatic efficient scan for the miss wiring, disorder cable, open and short circuit
- TEL BNC test available(Adapter needed)
- Remotely test cable up to 1000 ft in length ( remote kit included )
- Protective power switch for low power consumption
- High quality protecive case provides more secure protection
- Judge continuity of the cables or wires
- Track the cables or wires, and diagnose the break point
- Receiver the tone signal on the cables or wires (telephone line)
- Identify the state in the working telephone line (clear ring, busy)
- Send a single solid tone or a dual alternating tone to the object cables or wires
- Power supply: DC 9V battery
- Working current: Tester: =20mA Receiver: =50mA
- Signal transfe mode: Digital signal
- Signal output level: 8Vp-p
- Signal transfer distance: =3Km
Description
Specifications
| Features | |
|---|---|
| Product type | Twisted pair cable tester |
| Supported connectors | RJ-45 |
| Test type | Short circuit testing |
| Built-in display | No |
| LED indicators | Yes |
| Product colour | Blue, Orange, White |
| Power | |
| Operating voltage | 9 V |
| Weight & dimensions | |
| Width | 136 mm |
| Depth | 62.3 mm |
| Height | 30.8 mm |
| Technical details | |
| Product type | Twisted pair cable tester |
| Supported connectors | RJ-45 |
| Test type | Short circuit testing |
| Built-in display | No |
| LED indicators | Yes |
| Product colour | Blue, Orange, White |
