Description

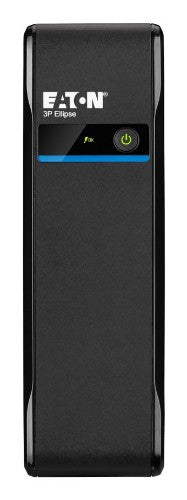

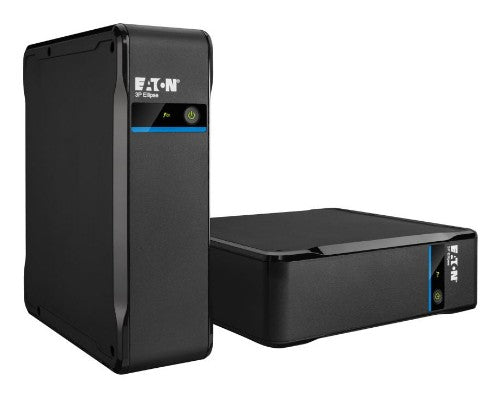

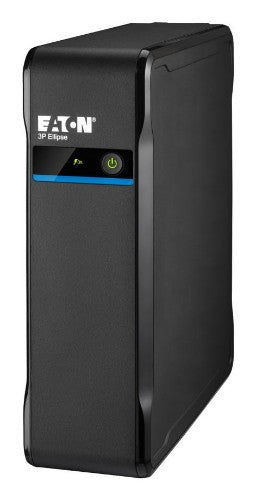

Tower, 550 VA, 330 W, 230 V, 12 V / 4.5 Ah, LED display, 25 dB, 81 x 235 x 263 mm, black
Key Features

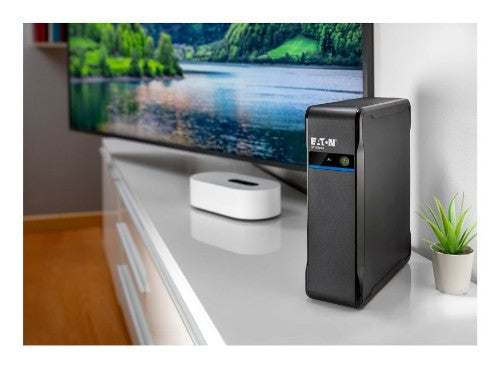

- Convenient extra-flat design for easy installation in any office environment
- High performance surge-protection device compliant with IEC 61643-11 standard
- 4 outlets to connect your PC + peripherals
- Easy to replace battery helps to extend UPS service life
Description
Specifications
| Power | |
|---|---|
| Output power factor | 0.6 |
| Output power | 330 W |
| Input operation voltage (min) | 161 V |
| Input operation voltage (max) | 284 V |
| Output operation voltage (min) | 161 V |
| Output operation voltage (max) | 284 V |
| Efficiency | 97% |
| Output power capacity | 0.55 kVA |
| Efficiency (ECO mode) | 97% |
| Performance | |
| UPS topology | Standby (Offline) |
| Waveform | Stepwise |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Surge protection | Yes |
| Noise level | 25 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Standby (Offline) |
| Waveform | Stepwise |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.6 |
| Output power | 330 W |
| Input operation voltage (min) | 161 V |
| Input operation voltage (max) | 284 V |
| Output operation voltage (min) | 161 V |
| Output operation voltage (max) | 284 V |
| Efficiency | 97% |
| Surge protection | Yes |
| Noise level | 25 dB |
| Output power capacity | 0.55 kVA |
| Efficiency (ECO mode) | 97% |
| Input frequency | 46/70 Hz |
| Auto shut-off | No |
| Power consumption (average operating) | 10.2 W |
| Ports & interfaces | |

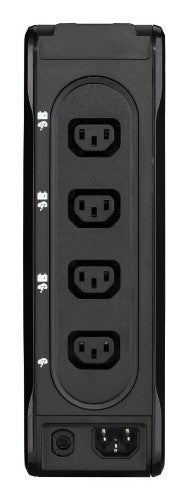

| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C3 coupler |
| Battery | |
| Battery voltage | 12 V |
| Battery capacity | 4.5 Ah |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm |
| Display type | LED |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Output frequency | 50/60 Hz |
| Compliance certificates | CB, CE, RoHS, WEEE |
| Certificates | |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | CB, CE, RoHS, WEEE |
| Packaging content | |
| Rack mount kit | No |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Weight & dimensions | |
| Weight | 3 kg |
| Width | 81 mm |
| Height | 263 mm |
| Depth | 235 mm |
| Packaging data | |
| Rack mount kit | No |
| Other features | |
| Input connection type | C14 |
| Relative humidity | 0 - 95% |
| Nominal input voltage | 220-240 V |
