Description

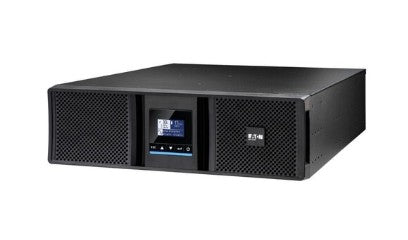

5kVA/5kW, 40-70Hz, 3:1 / 90A, 1 USB port, 1 RS232 , 440(19’’) x 130(3U) x 684 mm/43.1kg
Description
Specifications
| Power | |
|---|---|
| Output power | 5000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 176 V |
| Efficiency | 96.7% |
| Crest factor | 3:1 |
| Output power capacity | 5 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Noise level | 38 dB |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Output power | 5000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 176 V |
| Efficiency | 96.7% |
| Noise level | 38 dB |
| Crest factor | 3:1 |
| Output power capacity | 5 kVA |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| AC outlet types | C13 coupler, C19 coupler, Hardwire |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
| Rack capacity | 3U |
| Form factor | Desktop/Tower |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
| Rack mount kit | Yes |
| Weight & dimensions | |
| Weight | 43.1 kg |
| Width | 440 mm |
| Height | 684 mm |
| Depth | 130 mm |
| Packaging data | |
| Rack mount kit | Yes |
