Description
5MP 1/2.7" CMOS, IP66, IK04, 4MP 2688 x 1512 (16:9) video, 10/100 MbE RJ45 port, PoE+, 14W
Description

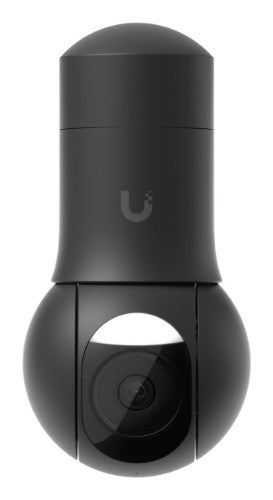

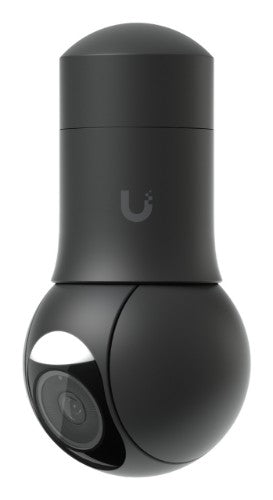

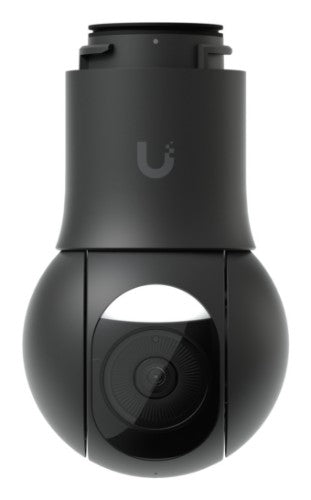

Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Day/night mode | Yes |
| Built-in light | Yes |
| Design | |
| Weatherproof | Yes |
| IK code | IK04 |
| Form factor | Dome |
| Product colour | Black |

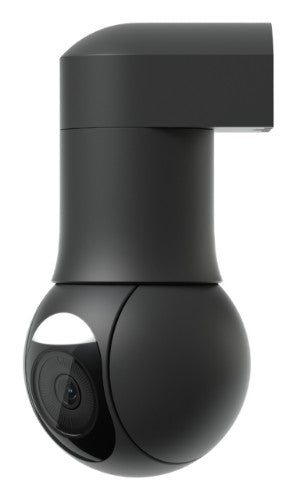

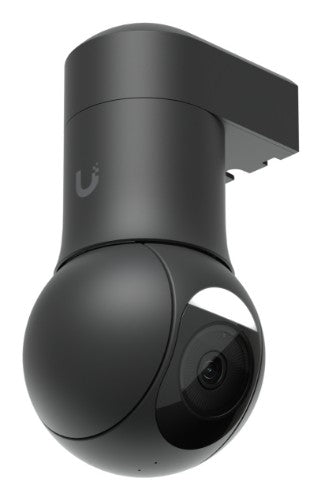

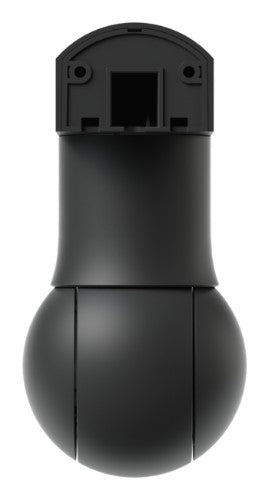

| Mounting type | Wall/Pole |
| Protection features | Tamper resistant, Weatherproof |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera | |
| Tilt angle range | 0 - 100° |
| Pan range | 0 - 350° |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 99.7, 45.5° |
| Lens viewing angle, vertical | 51.9, 25.4° |
| Lens viewing angle, diagonal | 121, 52.4° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 50.8 / 7 mm (2 / 7") |
| Number of sensors | 1 |
| Lens system | |
| Maximum aperture number | 2.4 |
| Minimum aperture number | 1.85 |
| Zoom capability | Yes |
| Optical zoom | 2x |
| Focal length range | 3.42–6.85 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Video | |
| Maximum resolution | 2688 x 1512 pixels |
| Frame rate | 30 fps |
| Total megapixels | 4 MP |
| Audio | |
| Built-in microphone | Yes |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Storage | |
| Built-in HDD | No |
| Ports & interfaces | |

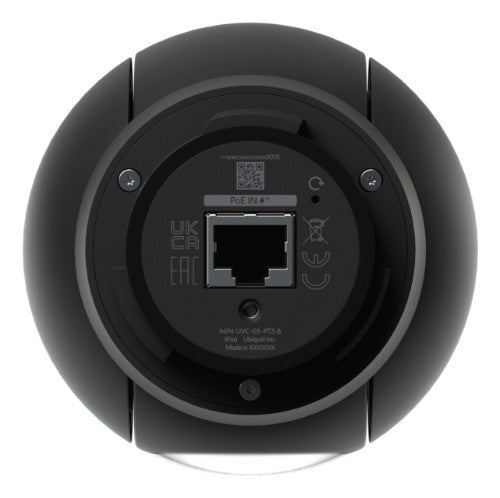

| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Intelligent Video Surveillance (IVS) system features | Human detection, Pet detection, Vehicle detection |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | PoE+, DC |
| Power consumption (max) | 14 W |
| DC output voltage | 37, 57 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Height | 90 mm |
| Diameter | 15.2 cm |
| Weight | 580 g |
| Sustainability | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packaging content | |
| Number of cameras | 1 |

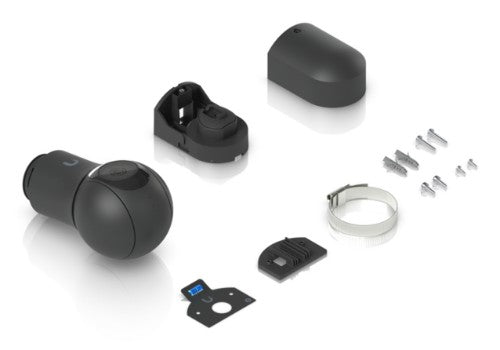

| Screws included | Yes |
| Mounting kit | Yes |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
