Description

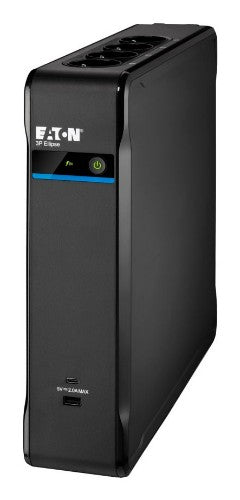

Tower, 1300 VA, 840 W, 46 - 70 Hz, 230 V, 12 V / 7 Ah, LED display, 25 dB, 81 x 312 x 305 mm, black
Key Features

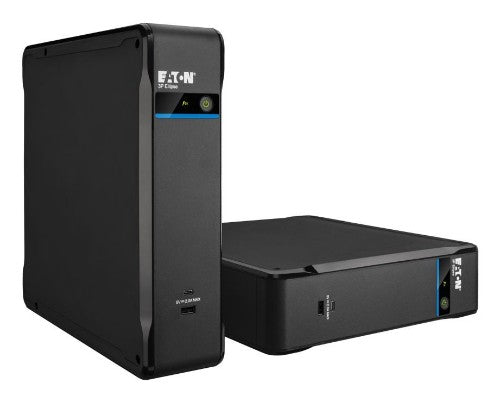

- Convenient extra-flat design for easy installation in any office environment
- High performance surge-protection device compliant with IEC 61643-11 standard
- 8 outlets to connect your PC + peripherals
- 2 USB charging ports Card slot for optional Cloud connection
- HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)

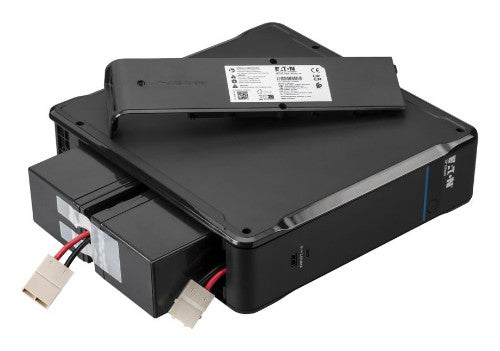

- Easy to replace battery helps to extend UPS service life
Description
Specifications
| Power | |
|---|---|
| Output power factor | 0.6 |
| Output power | 840 W |
| Input operation voltage (min) | 161 V |
| Input operation voltage (max) | 284 V |
| Output operation voltage (min) | 161 V |
| Output operation voltage (max) | 284 V |
| Efficiency | 97% |
| Output power capacity | 1.3 kVA |
| Efficiency (ECO mode) | 97% |
| Performance | |
| UPS topology | Standby (Offline) |
| Waveform | Stepwise |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Surge protection | Yes |
| Noise level | 25 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Standby (Offline) |
| Waveform | Stepwise |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.6 |
| Output power | 840 W |
| Input operation voltage (min) | 161 V |
| Input operation voltage (max) | 284 V |
| Output operation voltage (min) | 161 V |
| Output operation voltage (max) | 284 V |
| Efficiency | 97% |
| Surge protection | Yes |
| Noise level | 25 dB |
| Output power capacity | 1.3 kVA |
| Efficiency (ECO mode) | 97% |
| Input frequency | 46/70 Hz |
| Auto shut-off | Yes |
| Power consumption (average operating) | 26 W |
| Package type | Box |
| Ports & interfaces | |
| USB port | Yes |

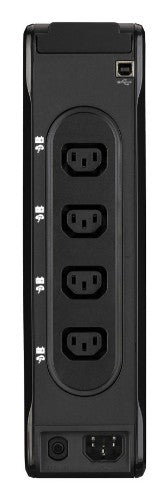

| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm |
| Control type | Buttons |
| Display type | LED |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Output frequency | 50/60 Hz |
| Compliance certificates | CB, CE, RoHS, WEEE |
| Certificates | |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | CB, CE, RoHS, WEEE |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Weight & dimensions | |
| Package type | Box |
| Weight | 7 kg |
| Width | 81 mm |
| Height | 305 mm |
| Depth | 312 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Package type | Box |
| Other features | |
| Input connection type | C14 |
| Relative humidity | 0 - 95% |
| Nominal input voltage | 220-240 V |
