Description

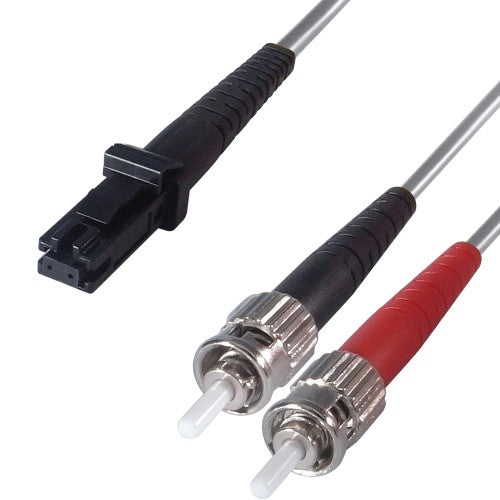

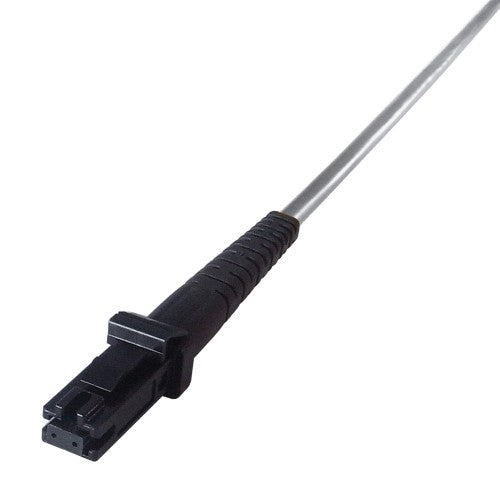

ST Male/MT Male, 62.5/125 Micron, OM1, Duplex, LSZH, 3M, Grey
A cost-effective solution providing lower loss and higher bandwidth along longer distances. Ideal for up to 10 gigabit ethernet applications
Key Features
- A technology that uses glass threads (fibres) to transmit data
- A fibre optic cable consists of a bundle of glass threads each capable of transmitting messages modulated onto light waves
- Used for hubs and switches to communicate at very high speed
- Fibre optic cables have a much greater bandwidth than metal cables allowing them to carry more data
- Fibre optic cables are less susceptible to interference and alien crosstalk greatly improving noise resistance making an ideal cable for use in EMI (electro-magnetic interference) environments such as factories, power stations, data centres, hospitals etc
- Fibre optic cables are much lightet and much thinner than metal cables resulting in them taking up less space
- Data can be transmitted digitally (the natural form for computer data) rather than analogically
- LSZH (LS0H): Short for low smoke zero halogen
- The low smoke aspect means in the event of a fire the cables will melt rather than burn a clear smoke is emitted instead of a very dangerous black smoke
- The Zero Halogen aspect means most network cables are made with plastic containing Chlorine. In a fire, a halogen-containing plastic material releases a poisonous gas that forms hydrochloric acid when it comes in contact with water. Chlorine -free cables do not produce dangerous gases or acids. This specification of cable would be required for environments such as Schools, Government buildings, MOD etc
- A flexible moulded collar at the end of the connector protects the internal fibres from any undue stresses or strains
Description
Used to connect active components of a fibre optic system usually from the front of a patch panel allowing very high speed communicationA cost-effective solution providing lower loss and higher bandwidth along longer distances. Ideal for up to 10 gigabit ethernet applications
Specifications
| Features | |
|---|---|
| Fibre optic type | OM1 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | ST |
| Connector 2 | MT |
| Cable length | 3 m |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 10 Gbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Brand compatibility | Any brand |
| Product colour | Grey |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Country of origin | China |
| Sustainability | |
| Doesn't contain | Halogen |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Packaging data | |
| Package width | 230 mm |
| Package height | 230 mm |
| Package weight | 650 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | ST |
| Connector 2 | MT |
| Cable length | 3 m |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Doesn't contain | Halogen |
| Compliance certificates | REACH, RoHS |
| Data transmission | |
| Data transfer rate | 10 Gbit/s |
| Weight & dimensions | |
| Cable length | 3 m |
| Package width | 230 mm |
| Package height | 230 mm |
| Package weight | 650 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
