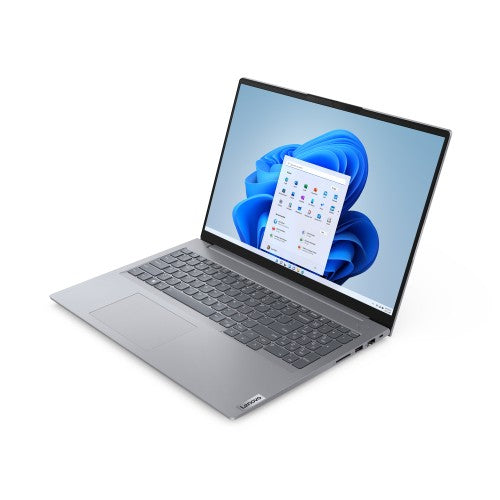

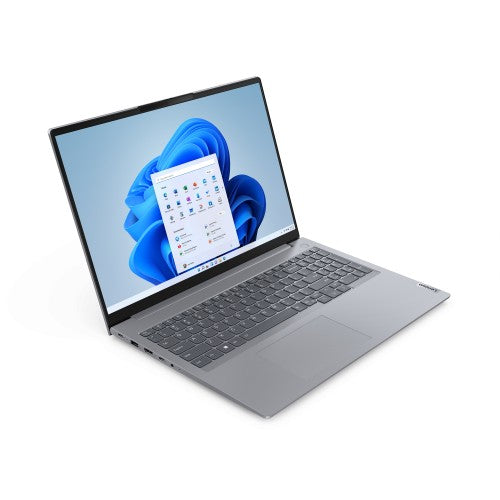

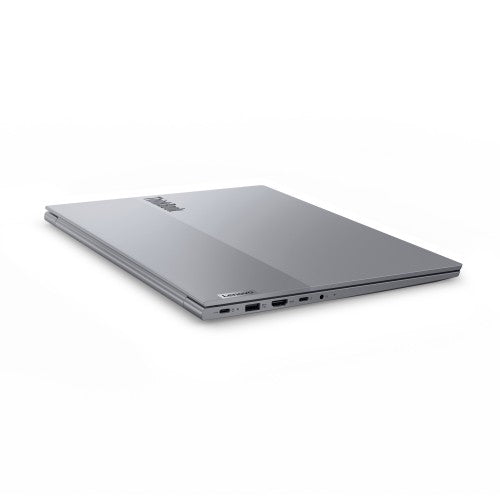

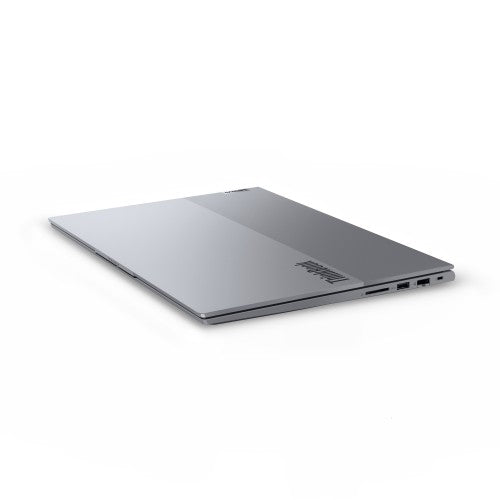

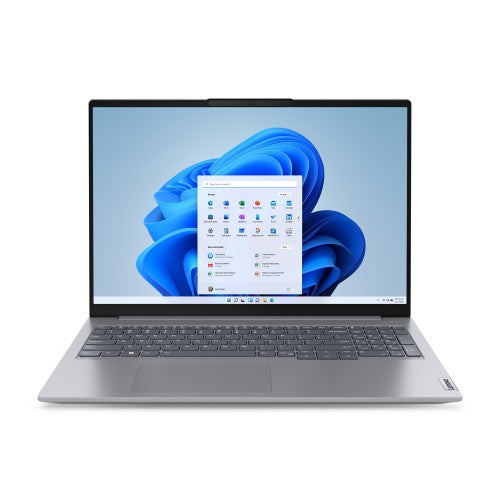

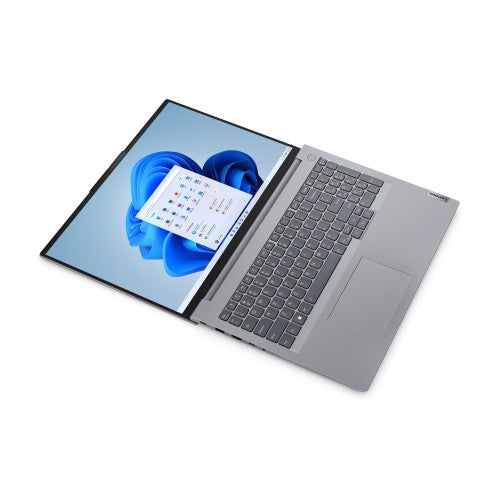

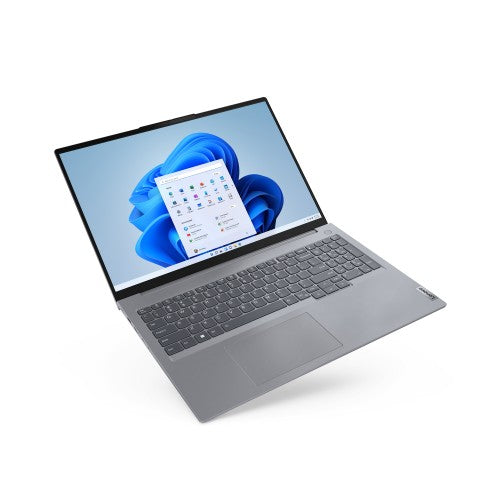

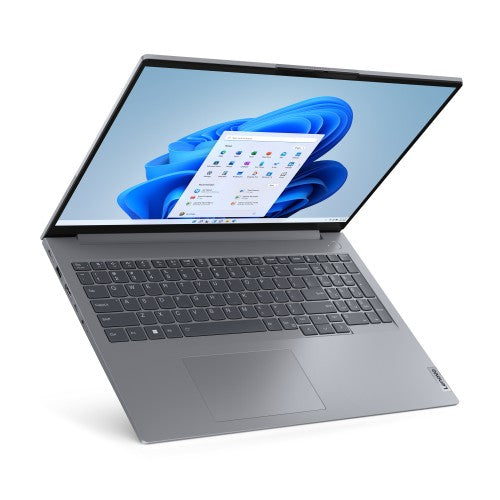

Lenovo ThinkBook 16 G6 IRL Intel® Core™ i7 i7-13700H Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Pro English Grey

Intel Core i7-13700H (24MB Cache), 16GB DDR5-SDRAM, 512GB SSD, 40.6 cm (16") WUXGA 1920 x 1200 IPS, Intel Iris Xe Graphics, LAN, WLAN, Webcam, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core i7-13700H (24MB Cache)
• 40.6 cm (16") WUXGA 1920 x 1200 IPS
• 16GB (5200MHz) DDR5-SDRAM (1 x 16) & 512GB SSD

Description

ThinkBook 16 G6 IRL - 16 inch - Intel Core i7-13700H - 16GB RAM - 512GB SSD - Windows 11 Pro

Specifications

Design
Colour name	Arctic Grey
Product type	Laptop
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Form factor	Clamshell
Product colour	Grey
Display
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Display brightness	300 cd/m²
Contrast ratio (typical)	800:1
Touchscreen	No
Display resolution	1920 x 1200 pixels
Display diagonal	40.6 cm (16")
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	13th gen Intel® Core™ i7
Configurable TDP-down	12 W
Processor cache type	Smart Cache
Processor cache	24 MB
Processor model	i7-13700H
Processor boost frequency	5 GHz
Processor cores	14
Processor threads	20
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor base power	45 W
Maximum turbo power	115 W
Efficient-core Max Turbo Frequency	3.7 GHz
Performance-core Max Turbo Frequency	5 GHz
Performance cores	6
Efficient cores	8
Memory
Memory form factor	SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5200 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SD
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	1000,100 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	Touchpad
Keyboard layout	QWERTY
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system language	German, Dutch, English, French
Operating system architecture	64-bit
Trial software	Office
Operating system installed	Windows 11 Pro
Technical details
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Form factor	Clamshell
Product colour	Grey
Sustainability certificates	ENERGY STAR, TCO, EPEAT Gold
Compliance certificates	RoHS
Processor special features
CPU configuration (max)	1
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	13.48 h
Battery capacity	71 Wh
Continuous video playback time	17.72 h
Power
AC adapter power	100 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	BIOS, HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Windows Hello	Yes
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	FSC certified package ENERGY STAR® 8.0 EPEAT™ Gold Registered ErP Lot 6 ErP Lot 26 TCO Certified 9.0 RoHS compliant TÜV Rheinland® Low Blue Light MIL-STD-810H
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, TCO, EPEAT Gold
Weight & dimensions
Width	356 mm
Depth	253.5 mm
Height	17.5 mm
Weight	1.7 kg
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics card	Yes
Audio system	Dolby Audio
Maximum shipping altitude	3048 m
AC adapter included	Yes
Anti-glare screen	Yes
Continuous video playback time	17.72 h
