StarTech.com HDMI Receiver Over IP Network for the IH2006 Product Series, 4K 60Hz, Driverless, AVoIP, Includes Mounting Kit, Receiver Only

StarTech.com HDMI Receiver Over IP Network for the IH2006 Product Series, 4K 60Hz, AVoIP, Driverless, Receiver Only

Key Features

• AVoIP HDMI RECEIVER: When paired with an IH2006 transmitter (sold separately), extend a 4K 60Hz HDMI signal over a TCP/IP network to a remote display, enabling high-quality video distribution while keeping the source system secure
• SCALABLE SETUP: Easily expand your setup by adding multiple receivers to create a one-to-many configuration, making it easy to scale with your business needs for flexible and future-proof IP Video or KVM distribution
• NO DRIVERS OR SOFTWARE: Requires no configuration to get it working; Compatible with any operating system including Windows, macOS and Linux, as well as all hardware platforms such as Intel, AMD, Snapdragon/ARM and Apple Silicon

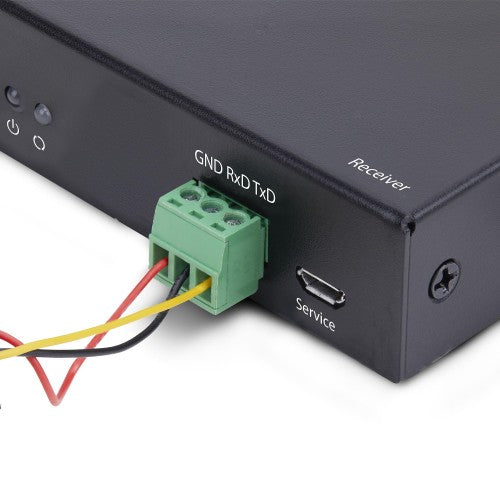

• AUDIO & SERIAL EXTENSION: Equipped with a three-wire RS232 port for serial extension and a 3.5mm audio passthrough port, ensuring seamless transmission of audio and control signals over the network
• SECURE & FLEXIBLE INSTALLATION: Durable metal housing with included mounting kit for wall or under-desk installation; Rubber feet prevent slipping for desktop use; Ideal for industrial and professional environments

Description

Use this receiver unit for the IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through

The AVoIP HDMI Receiver extends a 4K 60Hz HDMI signal over an existing TCP/IP network when paired with a compatible transmitter, keeping systems secure from unauthorized access and physical damage.

Driver-Free Installation

The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.

Scalable, Flexible, and Future-Proof

Easily expand your setup by adding multiple receivers to create a one-to-many configuration, making it easy to scale with your business needs for flexible and future-proof IP Video or KVM distribution.

Professional-Grade Design

Receiver features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. RS232 and 3.5mm audio passthrough ports enable serial and audio extension.

The StarTech.com Advantage

Specifications

Features
Type	Receiver
Connectivity technology	Wired
Rack mounting	No
Maximum digital resolution	3840 x 2160 pixels
On Screen Display (OSD)	No
Product colour	Black
Material	Metal
LED indicators	Yes
Maximum refresh rate	60 Hz
Receiver
Receiver local video port type	HDMI
RJ-45 ports quantity (receiver)	1
Receiver Micro-USB ports quantity	1
Ports & interfaces
RS-232 ports	1
PC Audio out	Yes
HDMI version	2.0
Power
AC input voltage	100 - 240 V
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (receiver) (max)	10 W
Power plug type	Type M
Input current	0.3 A
DC-in jack	Yes
Weight & dimensions
Package width	199 mm
Package depth	149 mm
Package height	80 mm
Package weight	500 g
Packaging data
Package width	199 mm
Package depth	149 mm
Package height	80 mm
Package weight	500 g
AC adapter included	Yes
Cables included	No

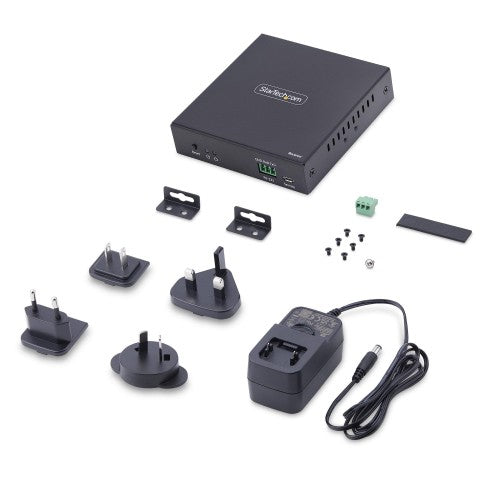

Packaging content
AC adapter included	Yes
Cables included	No
Mounting bracket(s) included	Yes
Included power plug types	ANZ, EU, NA, UK
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Other features
Compliance certificates	Federal Communications Commission (FCC), RoHS
Logistics data
Master (outer) case width	425 mm
Master (outer) case length	315 mm
Master (outer) case height	420 mm
Products per master (outer) case	20 pc(s)
