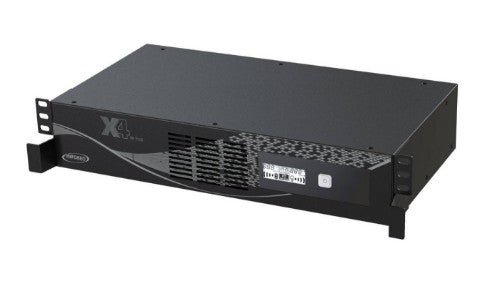

Infosec X4 2000 RM Plus uninterruptible power supply (UPS) Line-Interactive 2 kVA 1200 W 10 AC outlet(s)

2 kVA, 220V, 50/60Hz, 45 dB

Description

High-performance protection

Equipped with microprocessor-controlled Line Interactive technology, the X4 RM Plus UPS offer your connected equipment reliable protection. In the event of a power cut, connected equipment will remain on for up to 65 minutes depending on the load, ensuring service continuity and, if necessary, the backup of essential data.

Economic and ecological features

- Integrated charger reduces battery charging time (90% in just 4 hours) and thus ensuring maximum recharge between successive power cuts
- Automatic restart of the X4 RM Plus once grid power is restored
- Cold start function allowing emergency start-up of connected devices in the absence of power supply
- Automatic battery recharge as soon as power supply is restored
- These features allow the X4 RM Plus to save 50% more energy than a normal UPS

Connectivity adapted to all situations

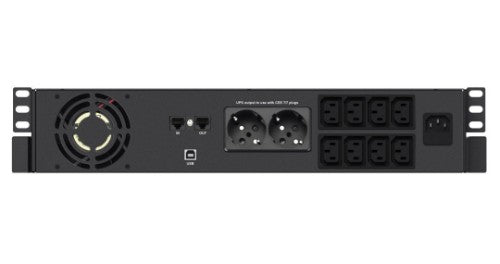

Each model is equipped with both IEC outlets and FR / SCHUKO type outlets. Its USB communication port allows remote control of the UPS through the Infopower software (see description on the back), which also manages the automatic closing of files by the UPS in the event of a power failure. X4 RM Plus also protects the ADSL line thanks to RJ45 connectors.

Essential features

- an on/off switch

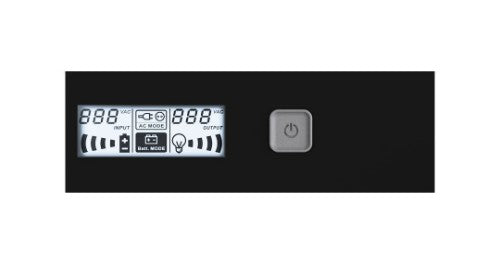

- an LCD display indicates the detailed status of the UPS
- Its rack format allows it to be easily Integrated into A patch bay

Specifications

Power
Output voltage regulation	-10 - 10%
Output power	1200 W
Input operation voltage (min)	162 V
Input operation voltage (max)	268 V
Output operation voltage (max)	220 V
Maximum current	16 A
Crest factor	3:1
Output power capacity	2 kVA
Performance
UPS topology	Line-Interactive
Waveform	Pseudo sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Power protection features	Overcharge, Overdischarge, Overload
Noise level	45 dB
Features
Output frequency	50 Hz
UPS topology	Line-Interactive
Waveform	Pseudo sine
Output voltage regulation	-10 - 10%
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Output power	1200 W
Input operation voltage (min)	162 V
Input operation voltage (max)	268 V
Output operation voltage (max)	220 V
Maximum current	16 A
Power protection features	Overcharge, Overdischarge, Overload
Noise level	45 dB
Crest factor	3:1
Output power capacity	2 kVA
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	10 AC outlet(s)
AC outlet types	C13 coupler, Type F
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type-B
Battery
Battery voltage	12 V
Battery capacity	9 Ah
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	6 h
Typical backup time at half load	17 min
Typical backup time at full load	50 min
Cold start	Yes
Design
Form factor	Rackmount
Product colour	Black
Certification	CE
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Output frequency	50 Hz
Certificates
Certification	CE
Packaging content
Cables included	Input power cable, Output power cable
Manual	Yes
Weight & dimensions
Weight	14.4 kg
Width	440 mm
Package weight	14.9 kg
Height	88 mm
Depth	300 mm
Packaging data
Cables included	Input power cable, Output power cable
Manual	Yes
Package weight	14.9 kg
