Description
0.7 kVA, 220-240V, 50/60Hz, 8xAC

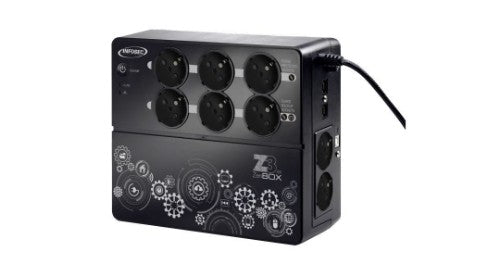

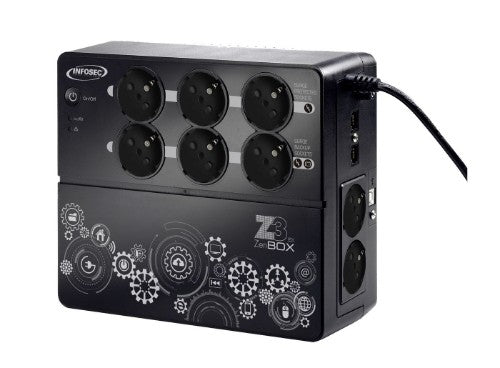

Microprocessor controlled High Frequency technology provides ideal protection against critical electrical disturbances. Depending on the model, Z3 ZenBox EX has 3 or 4 French emergency outlets which provide up to 18 minutes of battery time for your screen, burner, decoder, computer or autocom in the event of a power failure.
Reliable protection
Depending on the model chosen, the 6 or 8 lightning protection outlets of the Z3 ZenBox EX as well as the 2 RJ 45 ports will allow you to extend the life of your multimedia devices. In the event of a disturbance (overvoltage, short circuit, lightning), all of your connected devices are protected.
Easy to use
- Single on/off switch

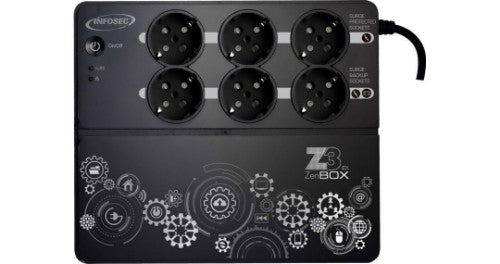

- 6 front outlets for easy device connection
- Audible alarms and visual indicators allow you to immediately know the status of the UPS and alert you in the event of an electrical incident
- Cold start in the absence of current
- Automatic restart of the UPS when grid power returns
Description
Advanced technologyMicroprocessor controlled High Frequency technology provides ideal protection against critical electrical disturbances. Depending on the model, Z3 ZenBox EX has 3 or 4 French emergency outlets which provide up to 18 minutes of battery time for your screen, burner, decoder, computer or autocom in the event of a power failure.
Reliable protection
Depending on the model chosen, the 6 or 8 lightning protection outlets of the Z3 ZenBox EX as well as the 2 RJ 45 ports will allow you to extend the life of your multimedia devices. In the event of a disturbance (overvoltage, short circuit, lightning), all of your connected devices are protected.
Easy to use
- Single on/off switch
- 6 front outlets for easy device connection
- Audible alarms and visual indicators allow you to immediately know the status of the UPS and alert you in the event of an electrical incident
- Cold start in the absence of current
- Automatic restart of the UPS when grid power returns
Specifications
| Power | |
|---|---|
| Output voltage regulation | -10 - 10% |
| Output power | 360 W |
| Input operation voltage (min) | 180 V |
| Input operation voltage (max) | 270 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 16 A |
| Power factor | 0.5 |
| Output power capacity | 0.7 kVA |
| Performance | |
| Audible alarm modes | Alarm when on battery, Overload alarm, Low battery alarm |
| Waveform | Pseudo sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| LED indicators | Yes |
| Surge protection | Yes |
| Power protection features | Over voltage, Overcharge, Overdischarge |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Alarm when on battery, Overload alarm, Low battery alarm |
| Waveform | Pseudo sine |
| Output voltage regulation | -10 - 10% |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power | 360 W |
| Input operation voltage (min) | 180 V |
| Input operation voltage (max) | 270 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 16 A |
| Surge protection | Yes |
| Power protection features | Over voltage, Overcharge, Overdischarge |
| Power factor | 0.5 |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 0.7 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| USB port | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | Type F |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port type | USB Type-B |
| Battery | |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 8 h |
| Typical backup time at half load | 7 min |
| Typical backup time at full load | 14 min |
| Cold start | Yes |
| Design | |
| Form factor | Wallmount |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE |
| Housing material | Plastic |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Output frequency | 50/60 Hz |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE |
| Compliance certificates | RoHS |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Weight | 3.1 kg |
| Width | 200 mm |
| Package weight | 3.4 kg |
| Height | 230 mm |
| Depth | 92.5 mm |
| Packaging data | |
| Manual | Yes |
| Package weight | 3.4 kg |
