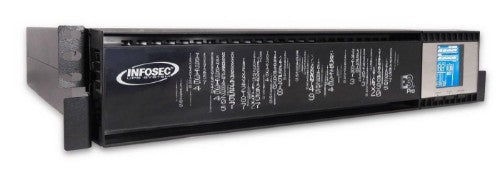

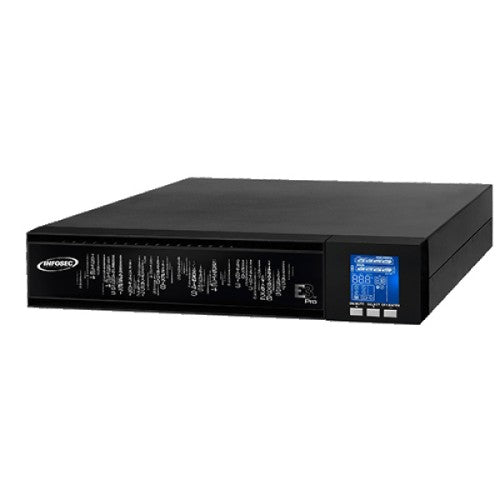

Infosec E3 Pro 1000 RT, Double-conversion (Online), 1 kVA, 900 W, Sine, 90 V, 300 V
Description
Infosec E3 Pro 1000 RT. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 900 W. AC outlets quantity: 3 AC outlet(s). Battery recharge time: 4 h. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 438 mm, Depth: 310 mm, Height: 88 mm
Specifications
| Power |
|---|
| Output voltage regulation |
1% |
| Output power factor |
0.9 |
| Output power |
900 W |
| Input operation voltage (min) |
90 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
110 V |
| Output operation voltage (max) |
240 V |
| Maximum current |
10 A |
| Efficiency |
88% |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Crest factor |
3:1 |
| Output power capacity |
1 kVA |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Power protection features |
Overcharge, Overdischarge, Overload |
| Noise level |
50 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
47/63 Hz |
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Output voltage regulation |
1% |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output power factor |
0.9 |
| Output power |
900 W |
| Input operation voltage (min) |
90 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
110 V |
| Output operation voltage (max) |
240 V |
| Maximum current |
10 A |
| Efficiency |
88% |
| Emergency Power Off (EPO) |
Yes |
| Power protection features |
Overcharge, Overdischarge, Overload |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Noise level |
50 dB |
| Crest factor |
3:1 |
| Audible alarm(s) |
Yes |
| Output power capacity |
1 kVA |
| Input frequency |
40/70 Hz |

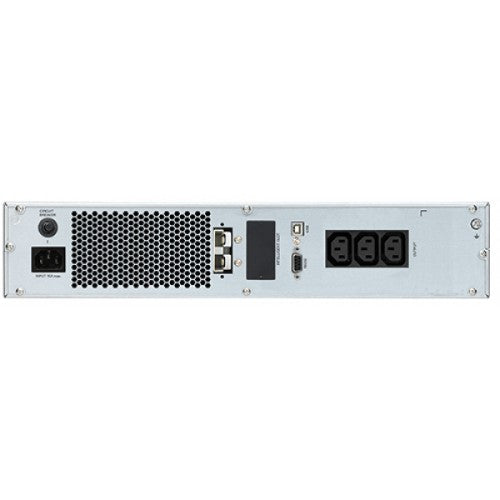

| Ports & interfaces |
|---|
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Serial interface |
Yes |
| AC outlets quantity |
3 AC outlet(s) |
| RS-232 ports |
1 |
| Battery |
|---|
| Battery recharge time |
4 h |
| Cold start |
Yes |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Cooling type |
Active |
| Certification |
EN 62040-2: 2006+AC: 2006, EN 61000-3-2: 2014
(EN 61000-4-2: 2009, EN 61000-4-3: 2006+A2: 2010, EN 61000-4-4: 2012, EN 61000-4-5:2006, EN 61000-4-6: 2014, EN 61000-4-8: 2010, EN 61000-2-2:2002,EN 61000-4-11:2004)
CE |

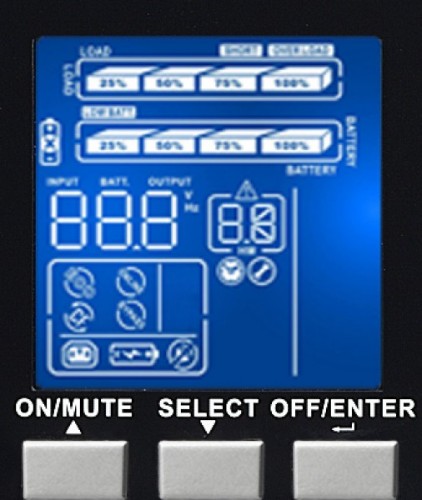

| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Operating altitude |
0 - 1000 m |
| Technical details |
|---|
| Output frequency |
47/63 Hz |
| Compliance certificates |
RoHS |
| Cooling |
|---|
| Cooling type |
Active |
| Weight & dimensions |
|---|
| Weight |
12.7 kg |
| Width |
438 mm |
| Height |
88 mm |
| Depth |
310 mm |
| Packaging data |
|---|
| Bundled software |
InfoPower |
| Certificates |
|---|
| Certification |
EN 62040-2: 2006+AC: 2006, EN 61000-3-2: 2014
(EN 61000-4-2: 2009, EN 61000-4-3: 2006+A2: 2010, EN 61000-4-4: 2012, EN 61000-4-5:2006, EN 61000-4-6: 2014, EN 61000-4-8: 2010, EN 61000-2-2:2002,EN 61000-4-11:2004)
CE |
| Packaging content |
|---|
| Bundled software |
InfoPower |
