Description
On Line Double Conversion, 2000VA, 4 IEC Outlets, USB/RS232, LCD, 2U
Thanks to its powerful integrated battery chargers (from 3.5 to 6A depending on the model) and to ensure an extended backup time, it is possible to addition until four battery banks. Then, according to the required needs, an external battery connector allows adding battery cabinets dedicated to the extended backup time.
Advantages of E3 Pro RT from 1000 to 10k RT models:
- The E3 Pro RT from 1000 to 10k VA range is designed to easily fit into various environments: horizontally, in a patch bay with attachment brackets (included), or vertically as a “tower” with its base (included).
- E3 Pro RT UPS offer a high performance thanks to its optimal power factor (0.9).
- E3 Pro RT range propose several communication solutions : RS 232 and USB communication ports allow communication between the UPS and your various protected IT devices. This is managed using Infopower software. A SNMP slot allows the connection of an SNMP agent and the use of its associated software for UPS remote management.

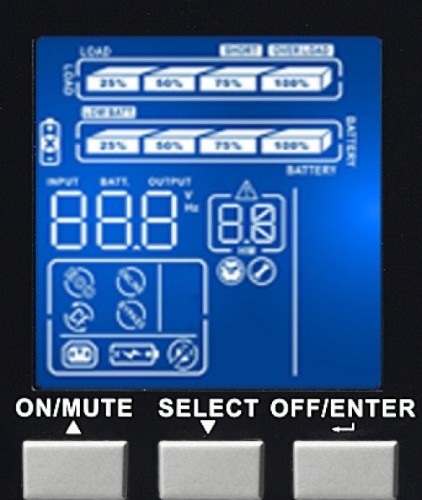

- E3 Pro RT UPS are equipped with an accurate and user-friendly LCD screen displays status and settings in real time.
Description
Equipped with On-Line Double Conversion technology operated by a microprocessor, the E3 Pro RT range delivers a totally protected and perfect sine wave current to all of your networks and loads.Thanks to its powerful integrated battery chargers (from 3.5 to 6A depending on the model) and to ensure an extended backup time, it is possible to addition until four battery banks. Then, according to the required needs, an external battery connector allows adding battery cabinets dedicated to the extended backup time.
Advantages of E3 Pro RT from 1000 to 10k RT models:
- The E3 Pro RT from 1000 to 10k VA range is designed to easily fit into various environments: horizontally, in a patch bay with attachment brackets (included), or vertically as a “tower” with its base (included).
- E3 Pro RT UPS offer a high performance thanks to its optimal power factor (0.9).
- E3 Pro RT range propose several communication solutions : RS 232 and USB communication ports allow communication between the UPS and your various protected IT devices. This is managed using Infopower software. A SNMP slot allows the connection of an SNMP agent and the use of its associated software for UPS remote management.
- E3 Pro RT UPS are equipped with an accurate and user-friendly LCD screen displays status and settings in real time.
Specifications
| Power | |
|---|---|
| Output voltage regulation | 1% |
| Output power factor | 0.9 |
| Output power | 1800 W |
| Input operation voltage (max) | 300 V |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 10 A |
| Efficiency | 89% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Crest factor | 3:1 |
| Output power capacity | 2 kVA |
| Performance | |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Power protection features | Overcharge, Overdischarge, Overload |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 47/63 Hz |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output voltage regulation | 1% |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.9 |
| Output power | 1800 W |
| Input operation voltage (max) | 300 V |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 10 A |
| Efficiency | 89% |
| Emergency Power Off (EPO) | Yes |
| Power protection features | Overcharge, Overdischarge, Overload |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 50 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 2 kVA |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| Serial interface | Yes |
| AC outlets quantity | 4 AC outlet(s) |
| RS-232 ports | 1 |
| Battery | |
| Battery recharge time | 4 h |
| Cold start | Yes |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Cooling type | Active |
| Certification | EN 62040-2: 2006+AC: 2006, EN 61000-3-2: 2014 (EN 61000-4-2: 2009, EN 61000-4-3: 2006+A2: 2010, EN 61000-4-4: 2012, EN 61000-4-5:2006, EN 61000-4-6: 2014, EN 61000-4-8: 2010, EN 61000-2-2:2002,EN 61000-4-11:2004) CE |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating altitude | 0 - 1000 m |
| Technical details | |
| Output frequency | 47/63 Hz |
| Compliance certificates | RoHS |
| Cooling | |
| Cooling type | Active |
| Weight & dimensions | |
| Weight | 19 kg |
| Width | 438 mm |
| Height | 88 mm |
| Depth | 410 mm |
| Packaging data | |
| Bundled software | InfoPower |
| Certificates | |
| Certification | EN 62040-2: 2006+AC: 2006, EN 61000-3-2: 2014 (EN 61000-4-2: 2009, EN 61000-4-3: 2006+A2: 2010, EN 61000-4-4: 2012, EN 61000-4-5:2006, EN 61000-4-6: 2014, EN 61000-4-8: 2010, EN 61000-2-2:2002,EN 61000-4-11:2004) CE |
| Packaging content | |
| Bundled software | InfoPower |
