16 GB, GDDR7, 128-bit, 2572 MHz boost clock, PCI Express 5.0 x8, 3x DisplayPort, 1x HDMI, 1x 8-pin, 2 slot
Key Features
- NVIDIA Blackwell Architecture
- 16GB GDDR7 Memory

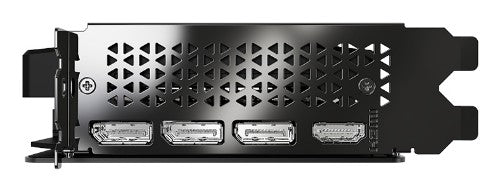

- 3x Display Port 1x HDMI
- 4608 CUDA® Cores
- 180 W Max Power Consumption
Description
Get game-changing performance with the PNY GeForce RTX™ 5060 Ti, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.
Specifications
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Processor frequency |
2407 MHz |
| Processor boost clock speed |
2572 MHz |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA cores |
4608 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 5060 Ti |
| Memory |
|---|
| Discrete graphics card memory |
16 GB |
| Data transfer rate |
28 Gbit/s |
| Memory bandwidth (max) |
448 GB/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR7 |
| Ports & interfaces |
|---|
| HDMI version |
2.1b |
| HDMI ports quantity |
1 |
| DisplayPort version |
2.1b |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
3 |
| Interface type |
PCI Express x8 5.0 |
| Video |
|---|
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| HDMI version |
2.1b |
| HDCP |
Yes |
| Dual Link DVI |
No |
| CUDA cores |
4608 |
| Performance |
|---|
| NVIDIA G-SYNC |
Yes |
| Virtual Reality (VR) ready |
Yes |
| NVIDIA Ansel |
Yes |
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| TV tuner integrated |
No |
| HDCP version |
2.3 |
| Design |
|---|
| Number of fans |
2 fan(s) |
| Cooling type |
Active |
| Product colour |
Black |
| Number of slots |
2 |
| Software |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported |
Yes |
| Power |
|---|
| Supplementary power connectors |

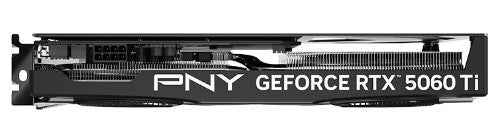

1x 8-pin |
| Minimum system power supply |
600 W |
| Thermal Design Power (TDP) |
180 W |
| Weight & dimensions |
|---|
| Number of slots |
2 |
| Height |
120 mm |
| Depth |
39.9 mm |
| Length |
245 mm |
| Technical details |
|---|
| Cooling type |
Active |
| Product colour |
Black |
| TV tuner integrated |
No |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported |
Yes |
| Minimum system power supply |
600 W |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
322 mm |
| Package height |
179 mm |
| Package depth |
70 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
