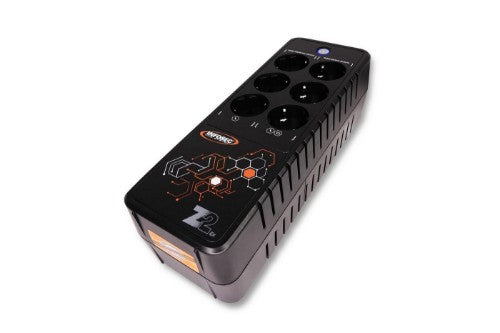

Infosec Z2 EX 700 uninterruptible power supply (UPS) 0.7 kVA 360 W 6 AC outlet(s)

0.7 kVA, 220-240V, 50/60Hz, 6xAC

Description

Advanced technology

Microprocessor-controlled High Frequency technology provides reliable protection to connected equipment against critical electrical disturbances. Z2 EX UPSs have 6 FR/SCHUKO outlets which provide up to 15 min of backup time for your screen, burner, decoder, computer or autocom in the event of a power cut, thus extending the life of the connected devices.

A reliable solution

The Z2 EX range effectively protects home office or small office equipment:
- 3 FR/SCHUKO backup outlets, to avoid service interruption
- 3 FR/SCHUKO protected outlets, to protect devices against lightning and power surges The USB communication port integrates the HID function ("Human Interface Device"), which allows remote control of the UPS by different means:
- USB HID automatic detection: recognition of the UPS via the computers' operating system (viewing battery status notifications)
- PowerMaster software: automatic closing of files when grid power is interrupted (see description on back)

Easy to use

- Single on/off switch
- 6 front outlets for easy device connection
- Audible alarms and visual indicators allow you to immediately know the status of the UPS and alert you in the event of an electrical incident
- Cold start in the absence of current
- Automatic restart of the UPS when grid power returns

Specifications

Power
Output power	360 W
Input operation voltage (min)	180 V
Input operation voltage (max)	280 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Maximum current	16 A
Power factor	0.5
Output power capacity	0.7 kVA
Performance
Audible alarm modes	Alarm when on battery, Fault, Overload alarm, Low battery alarm
Waveform	Pseudo sine
Auto-restart	Yes
Number of output phases	1
Number of input phases	1
LED indicators	Yes
Surge protection	Yes
Power protection features	Over voltage, Overload, Overdischarge, Short circuit
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Fault, Overload alarm, Low battery alarm
Waveform	Pseudo sine
Auto-restart	Yes
Number of output phases	1
Number of input phases	1
Output power	360 W
Input operation voltage (min)	180 V
Input operation voltage (max)	280 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Maximum current	16 A
Surge protection	Yes
Power protection features	Over voltage, Overload, Overdischarge, Short circuit
Power factor	0.5
Audible alarm(s)	Yes
Output power capacity	0.7 kVA
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	Type F
USB 2.0 ports quantity	1
USB port type	USB Type-B
Battery
Battery voltage	12 V
Battery capacity	5 Ah
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at full load	10 min
Cold start	Yes
Design
International Protection (IP) code	IP20
Form factor	Wallmount
LED indicators	Yes
Product colour	Black
Housing material	Plastic
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Certificates
Compliance certificates	RoHS
Packaging content
Manual	Yes
Weight & dimensions
Weight	2.7 kg
Width	110 mm
Package weight	3 kg
Height	90 mm
Depth	309 mm
Packaging data
Manual	Yes
Package weight	3 kg
