Description
8 dots/mm (203 DPI), 104 mm, 512 MB, microSD, USB 2.0, RS-232

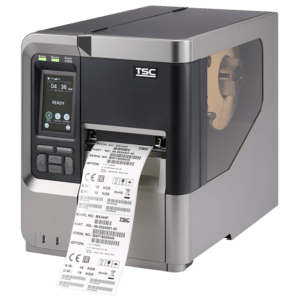

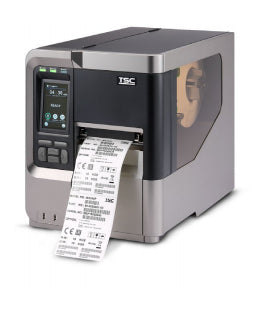

The new high performance MX240P Series was designed to deliver 24x7 high volume performance. It features a die-cast aluminum print mechanism housed in a very strong yet lightweight cabinet. This new design results in a more durable printer that is suited for your most heavy-duty demand cycles.
Superb resolution, great warranty
There are three models available with the MX240P Series. The MX240P prints at 203 dpi at speeds up to an amazing 18 inches per second, MX340P offers higher 300 dpi resolution at speeds up to 14 inches per second, and the MX640P features 600 dpi high resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print and other ultra-high-resolution images. All TSC printers feature a standard two-year limited warranty.
Loaded with standard features
The MX240P Series printers are loaded with standard features including a color touch display with new GUI design and six menu buttons to provide a great user experience, support for 600 meter ribbons, 8" OD media rolls, built-in Ethernet, two USB hosts for keyboard and scanner connections, and USB 2.0 and serial interfaces. Parallel and GPIO ports are available as an option.
Memory to spare
The MX240P Series offers plenty of memory with 512 MB SDRAM and 512 MB FLASH, which provides easy storage of fonts, international character sets and graphics. It also includes a secure digital (SD) FLASH memory card reader for inexpensively adding up to 32 GB of memory.
Powerful TSPL-EZ Printer Programming Language
TSC ships TSPL-EZ firmware in all its printers. TSPL-EZ supports three different printer languages including TSC printer language, TPLE (Translation Printer Language Eltron), and TPLZ (Translation Printer Language Zebra). TSPL-EZ features internal scalable True Type fonts, and a BASIC interpreter with file manager for creating powerful printer interface applications with multiple type of hosts.
- High Volume Printing
- Work In Process
- Compliance Labeling
- Inventory Management
- Shipping/Receiving
- Asset Management
- Electronics & Jewelry Labeling
Key Features
- "Thermal Smart Control" print technology produces clean, high quality barcodes

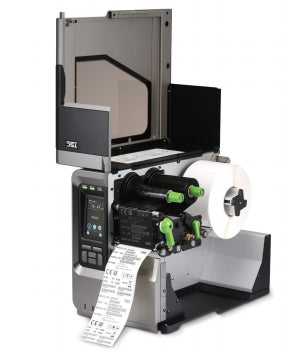

- Heavy duty die-cast aluminum design
- Fast 536 Mhz processor
- Fast print speed - up to 18 inches per second
- 4.3" color LCD includes new UI design with 6-button menus and touch panel operation
- Precise media positioning & preprinted label identification
- Available in 203 dpi, 300 dpi and 600 dpi resolutions
- 512 MB Flash and 512 MB SDRAM memory
- 600 meter ribbon capacity
- TSPL-EZ firmware for plug-n-play ease
- USB host interface for stand-alone application
- Auto TPH resolution switch detection
- Ribbon capacity monitor widget
- ENERGY STAR® qualified
Description
The MX240P Series industrial thermal printer is ruggedly built for high volume, high quality, label printing. Featuring our fastest print speeds ever, the MX240P Series boosts productivity with faster processing power, communications and printing speeds. It is ideal for applications that include manufacturing, logistics, shipping, and product identification.The new high performance MX240P Series was designed to deliver 24x7 high volume performance. It features a die-cast aluminum print mechanism housed in a very strong yet lightweight cabinet. This new design results in a more durable printer that is suited for your most heavy-duty demand cycles.
Superb resolution, great warranty
There are three models available with the MX240P Series. The MX240P prints at 203 dpi at speeds up to an amazing 18 inches per second, MX340P offers higher 300 dpi resolution at speeds up to 14 inches per second, and the MX640P features 600 dpi high resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print and other ultra-high-resolution images. All TSC printers feature a standard two-year limited warranty.
Loaded with standard features
The MX240P Series printers are loaded with standard features including a color touch display with new GUI design and six menu buttons to provide a great user experience, support for 600 meter ribbons, 8" OD media rolls, built-in Ethernet, two USB hosts for keyboard and scanner connections, and USB 2.0 and serial interfaces. Parallel and GPIO ports are available as an option.
Memory to spare
The MX240P Series offers plenty of memory with 512 MB SDRAM and 512 MB FLASH, which provides easy storage of fonts, international character sets and graphics. It also includes a secure digital (SD) FLASH memory card reader for inexpensively adding up to 32 GB of memory.
Powerful TSPL-EZ Printer Programming Language
TSC ships TSPL-EZ firmware in all its printers. TSPL-EZ supports three different printer languages including TSC printer language, TPLE (Translation Printer Language Eltron), and TPLZ (Translation Printer Language Zebra). TSPL-EZ features internal scalable True Type fonts, and a BASIC interpreter with file manager for creating powerful printer interface applications with multiple type of hosts.
- High Volume Printing
- Work In Process
- Compliance Labeling
- Inventory Management
- Shipping/Receiving
- Asset Management
- Electronics & Jewelry Labeling
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.4 cm |
| Printing | |
| Minimum print length | 2.54 cm |
| Colour | No |
| Print speed | 457 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.4 cm |
| Print technology | Direct thermal / Thermal transfer |
| Display | |
| Display diagonal | 10.9 cm (4.3") |
| Colour display | Yes |
| Display resolution | 480 x 272 pixels |
| Backlight display | Yes |
| Display | LCD |
| Network | |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Paper handling | |
| Supported paper width | 20 - 114 mm |
| Ribbon width | 11.5 cm |
| Ribbon length | 600 m |
| Media thickness | 0.076 ~ 0.305 mm |
| Maximum roll diameter | 20.3 cm |
| Maximum media length | 25.4 m |
| Core diameter | 7.62 cm |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Optional connectivity | Parallel |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | Code 93, PLESSEY, Code-128 Codabar Library, POSTNET, AZTECCODE, Data Matrix, Interleaved 2/5, QR Code, CODABAR (NW-7), China post, EAN128, GS1 DataMatrix, MSI, Code 11, EAN13, GS1 Databar (RSS-14), MaxiCode, UPC-A, EAN8, UPC-E, Code 39, PDF417, GS1 DataBar |
| Number of fonts | 8 |
| Ribbon width | 11.5 cm |
| Ribbon length | 600 m |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in processor | Yes |
| Certification | FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CB, BIS, EAC, ENERGY STAR |
| Page description languages | TSPL-EZ, EPL, ZPL, ZPL II |
| Tape end detection | Yes |
| Open cover detection | Yes |
| Design | |
| Display diagonal | 10.9 cm (4.3") |
| Colour display | Yes |
| Display resolution | 480 x 272 pixels |
| Backlight display | Yes |
| Display | LCD |
| Product colour | Black, Grey |
| Control type | Buttons |
| Built-in display | Yes |
| Certification | FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CB, BIS, EAC, ENERGY STAR |
| Power | |
| AC adapter output voltage | 24 V |
| AC adapter output current | 5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source type | DC |
| Technical details | |
| Product colour | Black, Grey |
| Built-in barcodes | Code 93, PLESSEY, Code-128 Codabar Library, POSTNET, AZTECCODE, Data Matrix, Interleaved 2/5, QR Code, CODABAR (NW-7), China post, EAN128, GS1 DataMatrix, MSI, Code 11, EAN13, GS1 Databar (RSS-14), MaxiCode, UPC-A, EAN8, UPC-E, Code 39, PDF417, GS1 DataBar |
| Number of fonts | 8 |
| Ribbon width | 11.5 cm |
| Ribbon length | 600 m |
| Compatible memory cards | MicroSD (TransFlash) |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), TÜV mark, UL, cUL |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CB, BIS, EAC, ENERGY STAR |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 25 - 85% |
| Weight & dimensions | |
| Width | 300 mm |
| Depth | 510 mm |
| Height | 393 mm |
| Weight | 18 kg |
| Packaging content | |
| Cables included | DC |
