Description
20 Gbps, 1 x GbE RJ45, 3 x 10 GbE RJ45, Rack mount (1U), 18W, 442.4 x 120 x 43.7 mm
Description

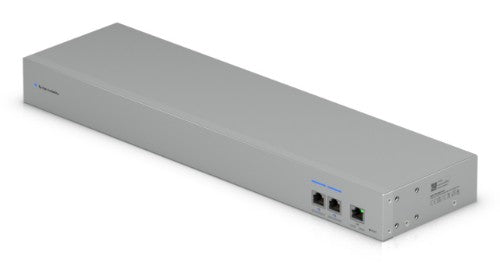

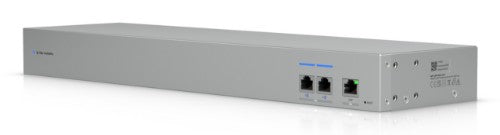

10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Power connector | AC/DC |
| 10G Ethernet (copper) ports quantity | 3 |
| Power cables quantity | 2 |
| Network | |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 15 Mpps |
| Throughput | 10 Gbit/s |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Network, System |
| Housing material | SGCC |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 18 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC/DC |
| Power connector | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 120 mm |
| Height | 43.7 mm |
| Weight | 2.3 kg |

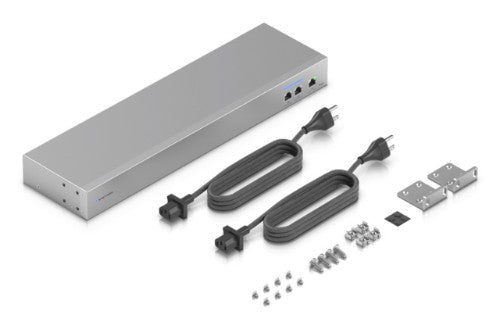

| Packaging content | |
| Rack mount kit | Yes |
| Cables included | Power |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| Rack mounting | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Indication | |
| LED indicators | Network, System |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | Power |
