Description

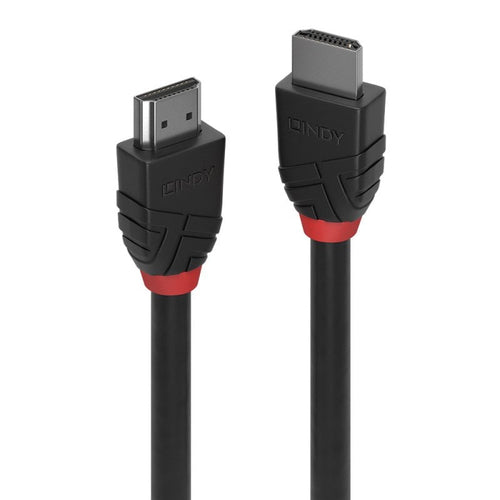

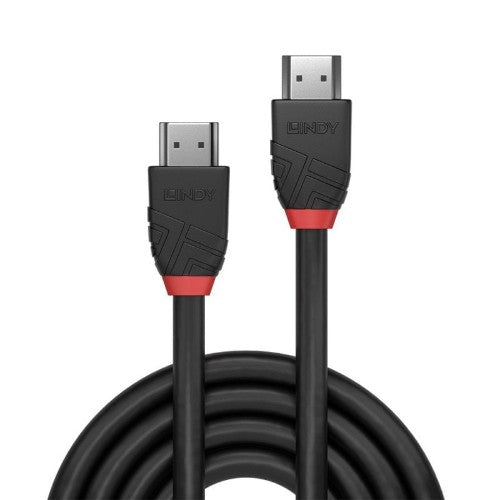

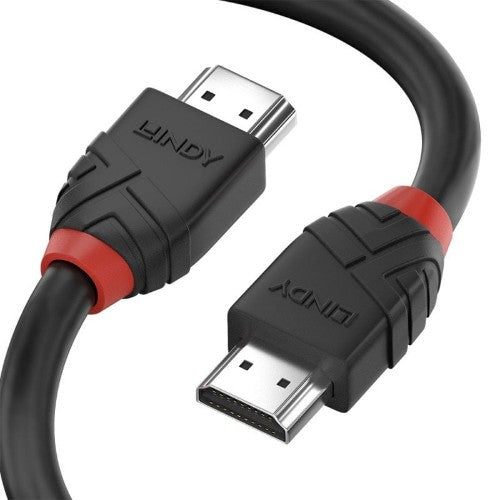

10m 8K60Hz HDMI Cable, Black Line
Black Line 8k60hz or 4K120hz cables feature triple shielded construction with 28AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 7680x4320@60Hz and 3840x2160@120hz are supported. 8K Black Line HDMI® cables are also capable of transmitting 32 channel audio and Dolby® Atmos and DTS:X
The 8K Black line HDMI® cable supports 48Gbps bandwidth capacity in cable lengths up to 10m.
Key Features
- Entry level High Speed HDMI® cable for home and small office applications
- Supports UHD resolutions up to 7680x4320@60Hz 4:4:4 10bit
- Robust PVC housing, nickel connectors, gold flashed contacts
- Triple shielded cable, corrosion resistant copper coated steel 28AWG conductors
- Supports 3D, 8K, 48Gbps, HEC, ARC, EARC CEC, Dolby® True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Description
From the lines cable connectivity concept developed by Lindy, Black Line 8K60Hz HDMI® cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.Black Line 8k60hz or 4K120hz cables feature triple shielded construction with 28AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 7680x4320@60Hz and 3840x2160@120hz are supported. 8K Black Line HDMI® cables are also capable of transmitting 32 channel audio and Dolby® Atmos and DTS:X
The 8K Black line HDMI® cable supports 48Gbps bandwidth capacity in cable lengths up to 10m.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Dolby technologies | DTS:X, Dolby Atmos |
| Product colour | Black |
| Cable length | 10 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper-clad steel (CCS) |
| AWG wire size | 28 |
| HDMI version | 2.1 |
| Data transfer rate | 48 Gbit/s |
| Supported graphics resolutions | 7680 x 4320 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Colour sampling | 4:4:4 |
| Bending radius (min) | 7 cm |
| Connector material | Nickel |
| Connector housing material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Shield material | Aluminium |
| Nominal attenuation | 35GHz＞-5.5dB(HBR1), 2.7GHz＞-8.5dB(HBR2), 4.05GHz＞-11.0dB(HBR3) |
| HDMI cable type | High Speed HDMI cable |
| Certification | RoHS & REACH UL |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Certification | RoHS & REACH UL |
| Compliance certificates | REACH, RoHS |
| Weight & dimensions | |
| Cable diameter | 7 mm |
| Package width | 20 mm |
| Package depth | 34.2 mm |
| Package height | 10.9 mm |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Packaging data | |
| Package width | 20 mm |
| Package depth | 34.2 mm |
| Package height | 10.9 mm |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Sustainability compliance | Yes |
| Warranty period | 10 year(s) |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
| Warranty period | 10 year(s) |
